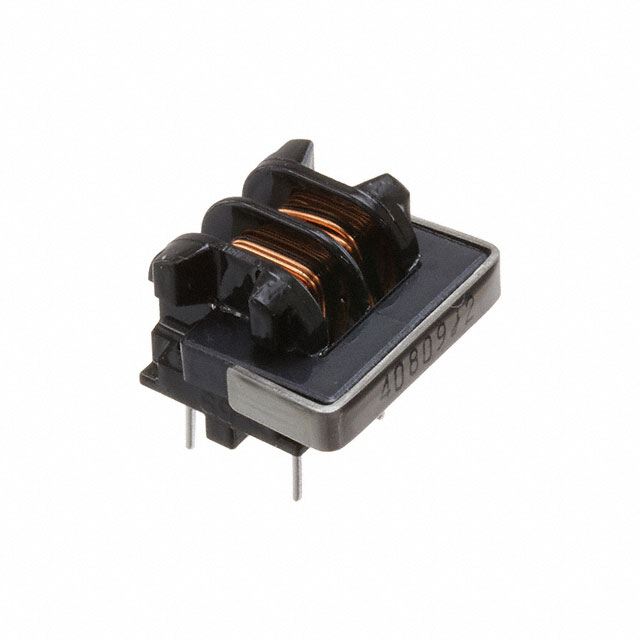

SU9HD-40008 - SU9HD-40008

SU9HD-40008

Active
KEMET

COMMON MODE FILTER, 7.98UH, 4A ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSU9HD-40008 SpecKEM_LF0019_SU9VD_9HD.pdf+3
SU9HD-40008 - SU9HD-40008

SU9HD-40008

Active
KEMET

COMMON MODE FILTER, 7.98UH, 4A ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsSU9HD-40008 SpecKEM_LF0019_SU9VD_9HD.pdf+3

Technical Specifications

Parameters and characteristics for this part

SpecificationSU9HD-40008
Current Rating (Max) [Max]4 A
DC Resistance (DCR) (Max) [Max]31.25 mOhm
Filter TypePower Line
Height (Max)12.5 mm
Height (Max) [Max]0.492 in
Inductance @ Frequency7.98 µH
Mounting TypeThrough Hole
Number of Lines2
Operating Temperature [Max]120 °C
Operating Temperature [Min]-25 °C
Package / Case4 Lead
Package / CaseVertical
Size / Dimension [x]17 mm
Size / Dimension [x]0.669 "
Size / Dimension [y]0.61 in
Size / Dimension [y]15.5 mm
Voltage Rating - AC250 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTray 1$ 0.89
10$ 0.75
25$ 0.69
40$ 0.64
100$ 0.53
300$ 0.49
500$ 0.48
NewarkEach 1$ 1.27
10$ 0.85
25$ 0.79
50$ 0.73
100$ 0.68
500$ 0.64
1000$ 0.54

Description

General part information

SU9HD Series

7.98 µH @ 1 kHz 2 Line Common Mode Choke Through Hole 4A DCR 31.25mOhm
