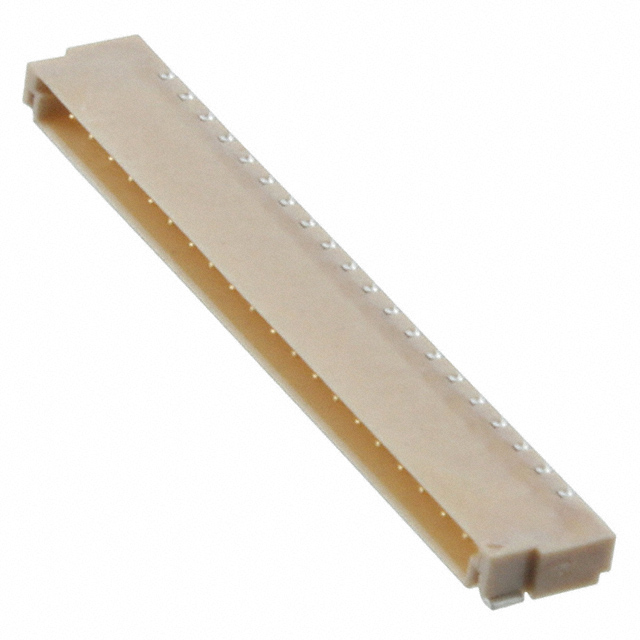

FI-S20P-HFE-E1500

Active

JAE Electronics

CONN HEADER SMD R/A 20POS 1.25MM

Search across all available documentation for this part.

Active

JAE Electronics

CONN HEADER SMD R/A 20POS 1.25MM

Technical Specifications

Parameters and characteristics for this part

Specification	FI-S20P-HFE-E1500

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin or Tin-Alloy
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	1 A
Fastening Type	Friction Lock
Features	Solder Retention
Insulation Color	Beige
Insulation Height	1.8 mm
Insulation Height	0.071 "
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Pitch - Mating	1.25 mm
Pitch - Mating	0.049 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	200 V

Part	Color	Contact Finish	Number of Rows	Cable Termination	Length [x]	Length [x]	Length [x]	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Pitch - Connector	Pitch - Connector	Number of Positions	Features	Contact Shape	Contact Finish - Mating	Insulation Height	Insulation Height	Style	Mounting Type	Material Flammability Rating	Fastening Type	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Termination	Voltage Rating	Contact Material	Current Rating (Amps)	Insulation Color	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Shrouding	Contact Termination	Note	Insulation Material	Pitch [x]	Pitch [x]
JAE Electronics FI-S20S-KITASSY-300M	Gray Individual	Gold	1	Crimp	0.984 '	11.81 "	300 mm	Plug to Plug	3.94 µin	0.1 Ám	0.049 in	1.25 mm	20	Assembly Kit
JAE Electronics FI-S20S-2-L106-10
JAE Electronics FI-S20P-HFE-E1500			1					Receptacle					20	Solder Retention	Square	Gold	1.8 mm	0.071 "	Board to Cable/Wire	Surface Mount Right Angle	UL94 V-0	Friction Lock	All	1.25 mm	0.049 in	Tin or Tin-Alloy	Solder	200 V	Copper Alloy	1 A	Beige	Male Pin	-40 °C	80 C	Shrouded - 4 Wall
JAE Electronics FI-S20S-2-L106
JAE Electronics FI-S20S	Black		1					Plug					20							Free Hanging (In-Line)		Friction Lock										Female Socket				Crimp	Contacts Not Included	Polyamide (PA66) Nylon 6/6 Glass Filled	0.049 in	1.25 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Surface Mount, Right Angle 20 position 0.049" (1.25mm)
