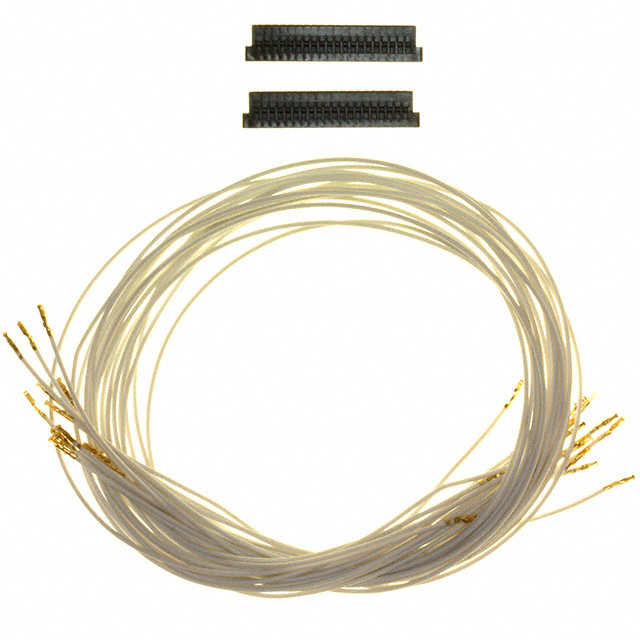

FI-S20S-KITASSY-300M

Obsolete

JAE Electronics

CABLE ASSY FI-S 20POS 300MM

Search across all available documentation for this part.

Obsolete

JAE Electronics

CABLE ASSY FI-S 20POS 300MM

Technical Specifications

Parameters and characteristics for this part

Part	Color	Contact Finish	Number of Rows	Cable Termination	Length [x]	Length [x]	Length [x]	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Pitch - Connector	Pitch - Connector	Number of Positions	Features	Contact Shape	Contact Finish - Mating	Insulation Height	Insulation Height	Style	Mounting Type	Material Flammability Rating	Fastening Type	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Termination	Voltage Rating	Contact Material	Current Rating (Amps)	Insulation Color	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Shrouding	Contact Termination	Note	Insulation Material	Pitch [x]	Pitch [x]
JAE Electronics FI-S20S-KITASSY-300M	Gray Individual	Gold	1	Crimp	0.984 '	11.81 "	300 mm	Plug to Plug	3.94 µin	0.1 Ám	0.049 in	1.25 mm	20	Assembly Kit
JAE Electronics FI-S20S-2-L106-10
JAE Electronics FI-S20P-HFE-E1500			1					Receptacle					20	Solder Retention	Square	Gold	1.8 mm	0.071 "	Board to Cable/Wire	Surface Mount Right Angle	UL94 V-0	Friction Lock	All	1.25 mm	0.049 in	Tin or Tin-Alloy	Solder	200 V	Copper Alloy	1 A	Beige	Male Pin	-40 °C	80 C	Shrouded - 4 Wall
JAE Electronics FI-S20S-2-L106
JAE Electronics FI-S20S	Black		1					Plug					20							Free Hanging (In-Line)		Friction Lock										Female Socket				Crimp	Contacts Not Included	Polyamide (PA66) Nylon 6/6 Glass Filled	0.049 in	1.25 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

20 Position Cable Assembly Rectangular Plug to Plug 0.984' (300.00mm, 11.81")
