BQ27621YZFT-G1A
ActiveSYSTEM-SIDE FUEL GAUGE WITH DYNAMIC VOLTAGE CORRELATION, BATTERY GAS GAUGE
Deep-Dive with AI
Search across all available documentation for this part.
BQ27621YZFT-G1A
ActiveSYSTEM-SIDE FUEL GAUGE WITH DYNAMIC VOLTAGE CORRELATION, BATTERY GAS GAUGE
Technical Specifications
Parameters and characteristics for this part
| Specification | BQ27621YZFT-G1A |
|---|---|
| Battery Chemistry | Lithium Ion |
| Function | Battery Monitor |
| Interface | I2C |
| Mounting Type | Surface Mount |
| Number of Cells | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | DSBGA, 9-UFBGA |
| Supplier Device Package | 9-DSBGA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.81 | |
| 10 | $ 2.52 | |||
| 25 | $ 2.38 | |||
| 100 | $ 2.03 | |||
| Digi-Reel® | 1 | $ 2.81 | ||
| 10 | $ 2.52 | |||
| 25 | $ 2.38 | |||
| 100 | $ 2.03 | |||
| Tape & Reel (TR) | 250 | $ 1.34 | ||
| 500 | $ 1.18 | |||
| Texas Instruments | SMALL T&R | 1 | $ 2.33 | |
| 100 | $ 1.79 | |||
| 250 | $ 1.32 | |||
| 1000 | $ 0.94 | |||
BQ27621-G1 Series
System-side fuel gauge with Dynamic Voltage Correlation, battery gas gauge
| Part | Interface | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Battery Chemistry | Supplier Device Package | Function | Number of Cells | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|
Texas Instruments BQ27621YZFT-G1A | I2C | 85 °C | -40 °C | 9-UFBGA, DSBGA | Lithium Ion | 9-DSBGA | Battery Monitor | 1 | Surface Mount |
Description
General part information
BQ27621-G1 Series
The Texas Instruments bq27621-G1 is a minimally configured microcontroller peripheral that provides system-side fuel gauging for single-cell Li-Ion batteries. The device requires very little user configuration and system microcontroller firmware development.
The bq27621-G1 uses the Dynamic Voltage Correlation algorithm for fuel gauging. This process eliminates the need for a sense resistor when calculating remaining battery capacity (mAh), state-of-charge (%), battery voltage (mV), and temperature (°C).

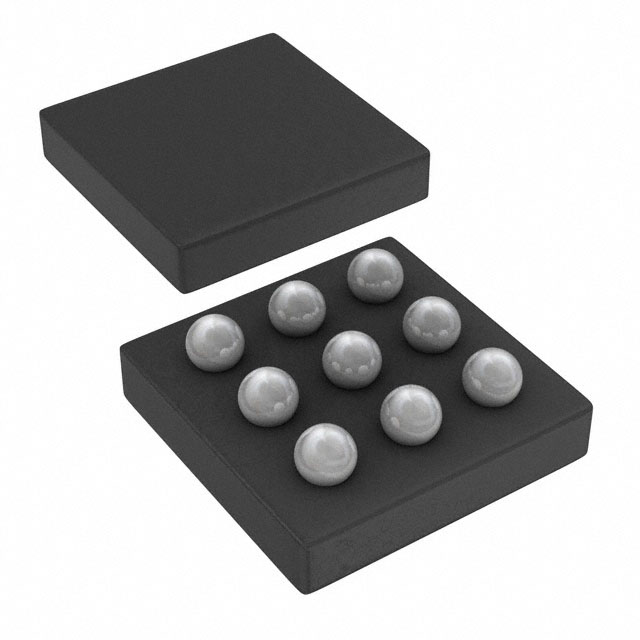

Battery fuel gauging with the bq27621-G1 requires connections only to PACK+ (P+) and PACK– (P–) for a removable battery pack or embedded battery circuit. The tiny 9-pin, 1.62 mm × 1.58 mm, 0.5 mm pitch YZF package is ideal for space-constrained applications.
