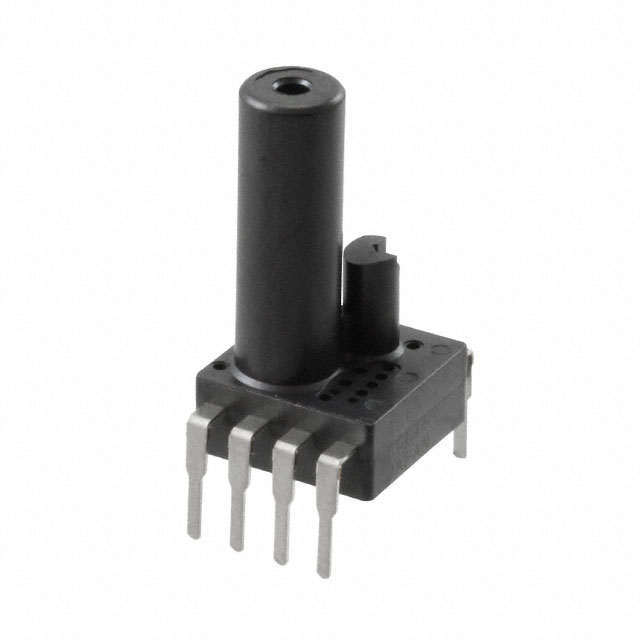

ADP51B63

Panasonic Industrial Automation Sales

PRESSURE SENSOR, P PACKAGE, 0 TO 70 C, 6 KPA, GAUGE, SINGLE AXIAL BARBLESS, VOLTAGE, 5 VDC ROHS COMPLIANT: YES

Search across all available documentation for this part.

Panasonic Industrial Automation Sales

PRESSURE SENSOR, P PACKAGE, 0 TO 70 C, 6 KPA, GAUGE, SINGLE AXIAL BARBLESS, VOLTAGE, 5 VDC ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	ADP51B63

Accuracy	2.5 %
Applications	Board Mount
Features	Temperature Compensated, Amplified Output
Maximum Pressure	1.74 PSI
Maximum Pressure	12 kPa
Mounting Type	Through Hole
Operating Pressure	6 kPa
Operating Pressure	0.87 PSI
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-5 °C
Output [Max]	4.5 V
Output [Min]	3.5 V
Output Type	Analog Voltage
Package / Case	8-DIP Module
Port Size [custom]	5.45 mm
Port Size [custom]	0.22 "
Port Style	Barbless
Pressure Type	Vented Gauge
Termination Style	PC Pin

Part	Termination Style	Port Size [custom]	Port Size [custom]	Port Style	Accuracy	Package / Case	Output Type	Operating Temperature [Max]	Operating Temperature [Min]	Pressure Type	Mounting Type	Output [Max]	Output [Min]	Applications	Features	Operating Pressure	Operating Pressure	Maximum Pressure	Maximum Pressure	Port Size	Port Size	Voltage - Supply
Panasonic Industrial Automation Sales ADP51B62	PC Pin	5.45 mm	0.22 "	Barbless	1.25 %	8-DIP Module	Analog Voltage	50 °C	-5 °C	Vented Gauge	Through Hole	5 V	0 mV	Board Mount	Amplified Output Temperature Compensated	6 kPa	0.87 PSI	1.74 PSI	12 kPa
Panasonic Industrial Automation Sales ADP51B63	PC Pin	5.45 mm	0.22 "	Barbless	2.5 %	8-DIP Module	Analog Voltage	50 °C	-5 °C	Vented Gauge	Through Hole	4.5 V	3.5 V	Board Mount	Amplified Output Temperature Compensated	6 kPa	0.87 PSI	1.74 PSI	12 kPa
Panasonic Industrial Automation Sales ADP51A11	PC Pin			Barbless	4 %	6-DIP Module	Analog Voltage	50 °C	-5 °C	Vented Gauge	Through Hole	2.7 V	0.3 V	Board Mount	Amplified Output Temperature Compensated	40 kPa	5.8 PSI			Male - Tube	0.12 " 3 mm	3 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

PRESSURE SENSOR, P PACKAGE, 0 TO 70 C, 6 KPA, GAUGE, SINGLE AXIAL BARBLESS, VOLTAGE, 5 VDC ROHS COMPLIANT: YES
