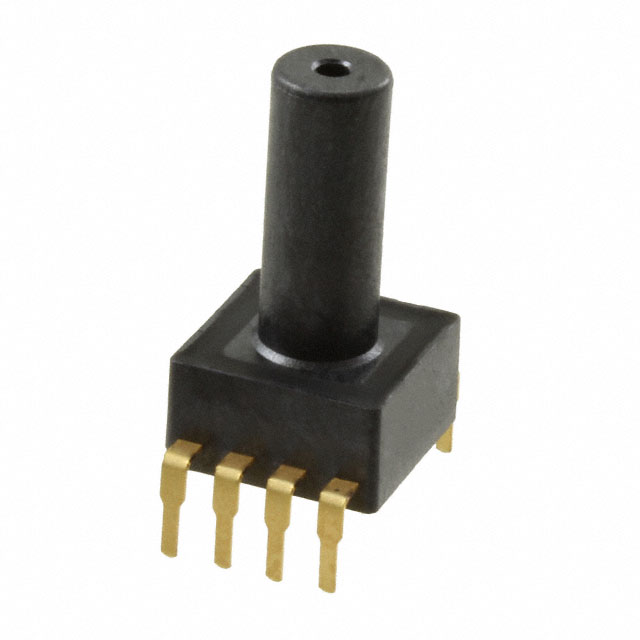

ADP51B62

Obsolete

Panasonic Industrial Automation Sales

SENSOR 0.87PSIG 0.22" 5V

Search across all available documentation for this part.

Obsolete

Panasonic Industrial Automation Sales

SENSOR 0.87PSIG 0.22" 5V

Technical Specifications

Parameters and characteristics for this part

Specification	ADP51B62

Accuracy	1.25 %
Applications	Board Mount
Features	Temperature Compensated, Amplified Output
Maximum Pressure	1.74 PSI
Maximum Pressure	12 kPa
Mounting Type	Through Hole
Operating Pressure	6 kPa
Operating Pressure	0.87 PSI
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-5 °C
Output [Max]	5 V
Output [Min]	0 mV
Output Type	Analog Voltage
Package / Case	8-DIP Module
Port Size [custom]	5.45 mm
Port Size [custom]	0.22 "
Port Style	Barbless
Pressure Type	Vented Gauge
Termination Style	PC Pin

Part	Termination Style	Port Size [custom]	Port Size [custom]	Port Style	Accuracy	Package / Case	Output Type	Operating Temperature [Max]	Operating Temperature [Min]	Pressure Type	Mounting Type	Output [Max]	Output [Min]	Applications	Features	Operating Pressure	Operating Pressure	Maximum Pressure	Maximum Pressure	Port Size	Port Size	Voltage - Supply
Panasonic Industrial Automation Sales ADP51B62	PC Pin	5.45 mm	0.22 "	Barbless	1.25 %	8-DIP Module	Analog Voltage	50 °C	-5 °C	Vented Gauge	Through Hole	5 V	0 mV	Board Mount	Amplified Output Temperature Compensated	6 kPa	0.87 PSI	1.74 PSI	12 kPa
Panasonic Industrial Automation Sales ADP51B63	PC Pin	5.45 mm	0.22 "	Barbless	2.5 %	8-DIP Module	Analog Voltage	50 °C	-5 °C	Vented Gauge	Through Hole	4.5 V	3.5 V	Board Mount	Amplified Output Temperature Compensated	6 kPa	0.87 PSI	1.74 PSI	12 kPa
Panasonic Industrial Automation Sales ADP51A11	PC Pin			Barbless	4 %	6-DIP Module	Analog Voltage	50 °C	-5 °C	Vented Gauge	Through Hole	2.7 V	0.3 V	Board Mount	Amplified Output Temperature Compensated	40 kPa	5.8 PSI			Male - Tube	0.12 " 3 mm	3 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Pressure Sensor 0.87PSI (6kPa) Vented Gauge Male - 0.22" (5.45mm) Tube 0 V ~ 5 V 8-DIP Module
