3007W2PAM99A10X

Active

Amphenol CONEC

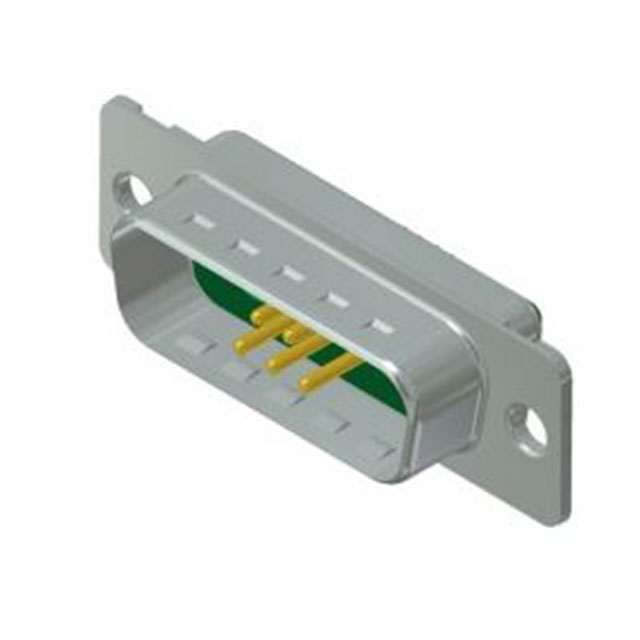

COMB D SUB, PLUG, DA-7W2, PANEL ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3007W2PAM99A10X

Active

Amphenol CONEC

COMB D SUB, PLUG, DA-7W2, PANEL ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3007W2PAM99A10X

Color	Green
Connector Style	D-Sub, Combo
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	7.5 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Grounding Indents
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	7
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	2 (DA, A) - 7W2
Voltage Rating	250 VDC

3007W2P Series

Part	Contact Finish	Shell Size, Connector Layout	Flange Feature	Termination	Dielectric Material	Connector Style	Material Flammability Rating	Features	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness	Contact Finish Thickness	Color	Number of Positions [custom]	Number of Positions [custom]	Connector Type	Mounting Type	Number of Rows	Current Rating (Amps)	Number of Positions	Contact Material	Voltage Rating	Backset Spacing	Backset Spacing	Note
Amphenol CONEC 3007W2PCR48E20X	Gold	2 (DA A) - 7W2	4-40 Board Side	Solder	Polybutylene Terephthalate (PBT) Glass Filled	Combo D-Sub	UL94 V-0	Board Lock Grounding Indents	Signal and Power	-55 °C	125 °C	0.76 Ám	30 Áin	Green	7	2	Male Pins Plug	Through Hole	2
Amphenol CONEC 3007W2PCT56N40X	Gold	2 (DA A) - 7W2	Housing/Shell (4-40)	Solder	Polybutylene Terephthalate (PBT) Glass Filled	Combo D-Sub			Signal and Power	-55 °C	125 °C	0.76 Ám	30 Áin	Green	7	2	Male Pins Plug	Through Hole Right Angle	2	7.5 A 20 A
Amphenol CONEC 3007W2PAU99G40X	Gold	2 (DA A) - 7W2	Housing/Shell (4-40)	Solder	Polybutylene Terephthalate (PBT) Glass Filled	Combo D-Sub	UL94 V-0	Board Lock Grounding Indents				0.203 çm	8 çin	Green			Male Pins Plug	Board Edge Right Angle Through Hole	2	7.5 A	7	Copper Alloy	250 VDC	9.4 mm	0.37 in
Amphenol CONEC 3007W2PAM99A10X	Gold	2 (DA A) - 7W2	Housing/Shell (Unthreaded)		Polybutylene Terephthalate (PBT) Glass Filled	Combo D-Sub	UL94 V-0	Grounding Indents		-55 °C	125 °C			Green			Male Pins Plug	Free Hanging (In-Line)	2	7.5 A	7	Copper Alloy	250 VDC
Amphenol CONEC 3007W2PAR71E20X	Gold							Board Lock Grounding Indents									Male Pins Plug					Copper Alloy
Amphenol CONEC 3007W2PCT42N20X	Gold	2 (DA A) - 7W2	Housing/Shell (4-40)	Solder		Combo D-Sub		Grounding Indents Mounting Brackets	Signal and Power	-55 °C	125 °C				7	2	Male Pins Plug	Through Hole Right Angle	2
Amphenol CONEC 3007W2PCT56N20X	Gold	2 (DA A) - 7W2	Housing/Shell (4-40)	Solder		Combo D-Sub		Grounding Indents Mounting Brackets	Signal and Power	-55 °C	125 °C				7	2	Male Pins Plug	Through Hole Right Angle	2
Amphenol CONEC 3007W2PAW74N40X																	Male Pins Plug
Amphenol CONEC 3007W2PAR71AA0X		2 (DA A) - 7W2			Polybutylene Terephthalate (PBT) Glass Filled	Combo D-Sub	UL94 V-0		Signal and Power	-55 °C	125 °C			Green	7	2	Male Pins Plug		2	30 A			250 VDC
Amphenol CONEC 3007W2PXK99A10X		2 (DA A) - 7W2	Housing/Shell (Unthreaded)		Polybutylene Terephthalate (PBT) Polyester	Combo D-Sub		Grounding Indents	Power Signal and Coax	-55 °C	125 °C			Black			Plug for Male Contacts	Free Hanging (In-Line)	2		7					Contacts Not Included
