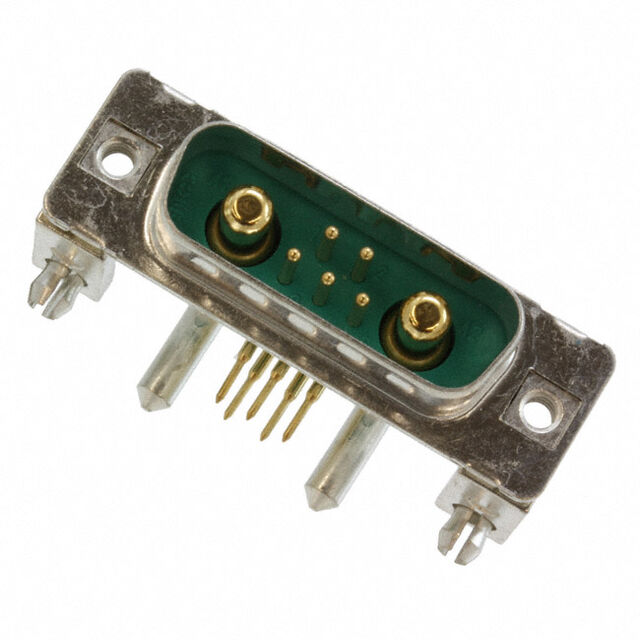

3007W2PCT56N40X
ActiveAmphenol CONEC
CONN D-SUB PLUG 7POS R/A SLDR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
3007W2PCT56N40X
ActiveAmphenol CONEC
CONN D-SUB PLUG 7POS R/A SLDR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 3007W2PCT56N40X |
|---|---|
| Color | Green |
| Connector Style | D-Sub, Combo |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Type | Signal and Power |
| Current Rating (Amps) | 20 A, 7.5 A |
| Dielectric Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Flange Feature | Housing/Shell (4-40) |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions [custom] | 7 |
| Number of Positions [custom] | 2 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Size, Connector Layout | 2 (DA, A) - 7W2 |
| Termination | Solder |
3007W2P Series
| Part | Contact Finish | Shell Size, Connector Layout | Flange Feature | Termination | Dielectric Material | Connector Style | Material Flammability Rating | Features | Contact Type | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness | Contact Finish Thickness | Color | Number of Positions [custom] | Number of Positions [custom] | Connector Type | Mounting Type | Number of Rows | Current Rating (Amps) | Number of Positions | Contact Material | Voltage Rating | Backset Spacing | Backset Spacing | Note |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol CONEC | Gold | 2 (DA A) - 7W2 | 4-40 Board Side | Solder | Polybutylene Terephthalate (PBT) Glass Filled | Combo D-Sub | UL94 V-0 | Board Lock Grounding Indents | Signal and Power | -55 °C | 125 °C | 0.76 Ám | 30 Áin | Green | 7 | 2 | Male Pins Plug | Through Hole | 2 | |||||||
Amphenol CONEC | Gold | 2 (DA A) - 7W2 | Housing/Shell (4-40) | Solder | Polybutylene Terephthalate (PBT) Glass Filled | Combo D-Sub | Signal and Power | -55 °C | 125 °C | 0.76 Ám | 30 Áin | Green | 7 | 2 | Male Pins Plug | Through Hole Right Angle | 2 | 7.5 A 20 A | ||||||||
Amphenol CONEC | Gold | 2 (DA A) - 7W2 | Housing/Shell (4-40) | Solder | Polybutylene Terephthalate (PBT) Glass Filled | Combo D-Sub | UL94 V-0 | Board Lock Grounding Indents | 0.203 çm | 8 çin | Green | Male Pins Plug | Board Edge Right Angle Through Hole | 2 | 7.5 A | 7 | Copper Alloy | 250 VDC | 9.4 mm | 0.37 in | ||||||
Amphenol CONEC | Gold | 2 (DA A) - 7W2 | Housing/Shell (Unthreaded) | Polybutylene Terephthalate (PBT) Glass Filled | Combo D-Sub | UL94 V-0 | Grounding Indents | -55 °C | 125 °C | Green | Male Pins Plug | Free Hanging (In-Line) | 2 | 7.5 A | 7 | Copper Alloy | 250 VDC | |||||||||
Amphenol CONEC | Gold | Board Lock Grounding Indents | Male Pins Plug | Copper Alloy | ||||||||||||||||||||||
Amphenol CONEC | Gold | 2 (DA A) - 7W2 | Housing/Shell (4-40) | Solder | Combo D-Sub | Grounding Indents Mounting Brackets | Signal and Power | -55 °C | 125 °C | 7 | 2 | Male Pins Plug | Through Hole Right Angle | 2 | ||||||||||||
Amphenol CONEC | Gold | 2 (DA A) - 7W2 | Housing/Shell (4-40) | Solder | Combo D-Sub | Grounding Indents Mounting Brackets | Signal and Power | -55 °C | 125 °C | 7 | 2 | Male Pins Plug | Through Hole Right Angle | 2 | ||||||||||||
Amphenol CONEC | Male Pins Plug | |||||||||||||||||||||||||
Amphenol CONEC | 2 (DA A) - 7W2 | Polybutylene Terephthalate (PBT) Glass Filled | Combo D-Sub | UL94 V-0 | Signal and Power | -55 °C | 125 °C | Green | 7 | 2 | Male Pins Plug | 2 | 30 A | 250 VDC | ||||||||||||
Amphenol CONEC | 2 (DA A) - 7W2 | Housing/Shell (Unthreaded) | Polybutylene Terephthalate (PBT) Polyester | Combo D-Sub | Grounding Indents | Power Signal and Coax | -55 °C | 125 °C | Black | Plug for Male Contacts | Free Hanging (In-Line) | 2 | 7 | Contacts Not Included |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 24.01 | |
| 10 | $ 18.50 | |||
| 25 | $ 16.75 | |||
| 50 | $ 15.57 | |||
| 100 | $ 14.50 | |||
| 250 | $ 13.24 | |||
| 500 | $ 12.39 | |||
Description
General part information
3007W2P Series
7 (5 + 2 Power) Position D-Sub, Combo Plug, Male Pins Connector
