346-060-559-878

Active

EDAC Inc.

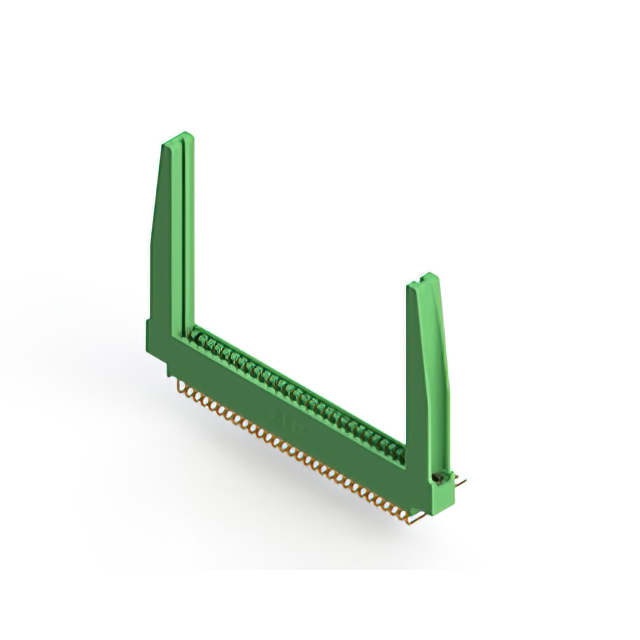

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 60 CONTACTS, THROUGH HOLE MOUNT, RIGHT ANGLE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Drawing EN +1

346-060-559-878

Active

EDAC Inc.

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 60 CONTACTS, THROUGH HOLE MOUNT, RIGHT ANGLE

Deep-Dive with AI

DocumentsDatasheet Drawing EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	346-060-559-878

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Features	Card Guides
Flange Feature	Top Mount Opening, 4-40, Threaded Insert
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole, Right Angle
Number of Positions	60
Number of Positions/Bay/Row [custom]	30
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.125 in
Pitch [x]	3.18 mm
Read Out	Dual
Termination	Wire Wrap, Solder
Termination Rows	2

346-060 Series

...

Part	Number of Rows	Contact Finish	Flange Feature	Read Out	Operating Temperature [Min]	Operating Temperature [Max]	Color	Contact Type	Features	Number of Positions	Number of Positions/Bay/Row [custom]	Gender	Pitch [x]	Pitch [x]	Material - Insulation	Termination	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Termination Rows	Card Type	Mounting Type	Flange Feature [diameter]	Flange Feature [diameter]	Flange Feature	Flange Feature
EDAC Inc. 346-060-555-808	2	Gold	4-40 Threaded Insert Top Mount Opening	Dual	-40 °C	105 ░C	Green	Cantilever	Card Extender	60	30	Female	0.125 in	3.18 mm	Polyester Thermoplastic	Solder Eyelet(s)	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Copper Alloy	2	Non Specified - Dual Edge	Board Edge Straddle Mount
EDAC Inc. 346-060-555-201	2	Gold		Dual	-40 °C	105 ░C	Green	Cantilever	Card Extender	60	30	Female	0.125 in	3.18 mm	Polyester Thermoplastic	Solder Eyelet(s)	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Copper Alloy	2	Non Specified - Dual Edge	Board Edge Straddle Mount
EDAC Inc. 346-060-522-207	2	Gold	Flush Mount M3 Threaded Insert Top Opening	Dual	-40 °C	105 ░C	Green	Cantilever		60	30	Female	0.125 in	3.18 mm	Polyester Thermoplastic	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Copper Alloy	2	Non Specified - Dual Edge	Through Hole
EDAC Inc. 346-060-541-808	2	Gold	4-40 Threaded Insert Top Mount Opening	Dual	-40 °C	105 ░C	Green	Cantilever		60	30	Female	0.125 in	3.18 mm	Polyester Thermoplastic	Wire Wrap	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Copper Alloy	2	Non Specified - Dual Edge	Through Hole
EDAC Inc. 346-060-558-204	2	Gold	Flush Mount Top Opening Unthreaded	Dual	-40 °C	105 ░C	Green	Cantilever		60	30	Female	0.125 in	3.18 mm	Polyester Thermoplastic	Solder Wire Wrap	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Copper Alloy	2	Non Specified - Dual Edge	Through Hole Right Angle	3.96 mm	0.156 in
EDAC Inc. 346-060-558-858	2	Gold	4-40 Threaded Insert Top Mount Opening	Dual	-40 °C	105 ░C	Green	Cantilever	Card Guides	60	30	Female	0.125 in	3.18 mm	Polyester Thermoplastic	Solder Wire Wrap	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Copper Alloy	2	Non Specified - Dual Edge	Through Hole Right Angle
EDAC Inc. 346-060-559-878	2	Gold	4-40 Threaded Insert Top Mount Opening	Dual	-40 °C	105 ░C	Green	Cantilever	Card Guides	60	30	Female	0.125 in	3.18 mm	Polyester Thermoplastic	Solder Wire Wrap	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Copper Alloy	2	Non Specified - Dual Edge	Through Hole Right Angle
EDAC Inc. 346-060-522-812	2	Gold	Side Mount Opening Unthreaded	Dual	-40 °C	105 ░C	Green	Cantilever		60	30	Female	0.125 in	3.18 mm	Polyester Thermoplastic	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Copper Alloy	2	Non Specified - Dual Edge	Through Hole			3.25 mm	0.128 in
EDAC Inc. 346-060-560-808	2	Gold	4-40 Threaded Insert Top Mount Opening	Dual	-40 °C	105 ░C	Green	Cantilever	Card Extender	60	30	Female	0.125 in	3.18 mm	Polyester Thermoplastic	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Copper Alloy	2	Non Specified - Dual Edge	Board Edge Straddle Mount
EDAC Inc. 346-060-500-802	2	Gold		Dual	-40 °C	105 ░C	Green	Cantilever		60	30	Female	0.125 in	3.18 mm	Polyester Thermoplastic	Solder Eyelet(s)	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Copper Alloy	2	Non Specified - Dual Edge	Through Hole			3.25 mm	0.128 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 14.86
Newark	Each	1	$ 15.52
		100	$ 10.50
		250	$ 9.33
		500	$ 8.53
		1000	$ 7.21

Description

General part information

346-060 Series

60 Position Female Connector Non Specified - Dual Edge Gold 0.125" (3.18mm) Green

Documents

Technical documentation and resources

Datasheet

Drawing EN

Datasheet

Enhanced Product Overview EN

Datasheet
