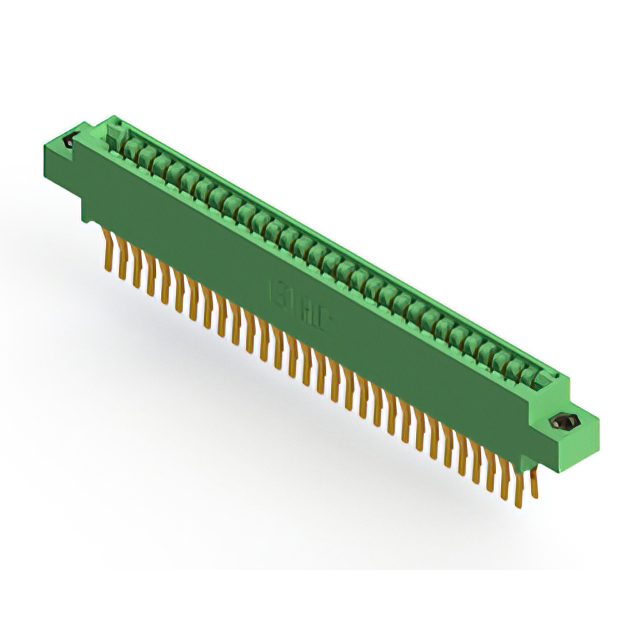

346-060-560-808
ActiveEDAC Inc.
CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 60 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Search across all available documentation for this part.
346-060-560-808
ActiveEDAC Inc.
CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 60 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 346-060-560-808 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Features | Card Extender |
| Flange Feature | Top Mount Opening, 4-40, Threaded Insert |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Board Edge, Straddle Mount |
| Number of Positions | 60 |
| Number of Positions/Bay/Row [custom] | 30 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.125 in |
| Pitch [x] | 3.18 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
346-060 Series
...
| Part | Number of Rows | Contact Finish | Flange Feature | Read Out | Operating Temperature [Min] | Operating Temperature [Max] | Color | Contact Type | Features | Number of Positions | Number of Positions/Bay/Row [custom] | Gender | Pitch [x] | Pitch [x] | Material - Insulation | Termination | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Finish Thickness | Contact Finish Thickness | Contact Material | Termination Rows | Card Type | Mounting Type | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 2 | Gold | 4-40 Threaded Insert Top Mount Opening | Dual | -40 °C | 105 ░C | Green | Cantilever | Card Extender | 60 | 30 | Female | 0.125 in | 3.18 mm | Polyester Thermoplastic | Solder Eyelet(s) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Copper Alloy | 2 | Non Specified - Dual Edge | Board Edge Straddle Mount | ||||
EDAC Inc. | 2 | Gold | Dual | -40 °C | 105 ░C | Green | Cantilever | Card Extender | 60 | 30 | Female | 0.125 in | 3.18 mm | Polyester Thermoplastic | Solder Eyelet(s) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Copper Alloy | 2 | Non Specified - Dual Edge | Board Edge Straddle Mount | |||||
EDAC Inc. | 2 | Gold | Flush Mount M3 Threaded Insert Top Opening | Dual | -40 °C | 105 ░C | Green | Cantilever | 60 | 30 | Female | 0.125 in | 3.18 mm | Polyester Thermoplastic | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Copper Alloy | 2 | Non Specified - Dual Edge | Through Hole | |||||
EDAC Inc. | 2 | Gold | 4-40 Threaded Insert Top Mount Opening | Dual | -40 °C | 105 ░C | Green | Cantilever | 60 | 30 | Female | 0.125 in | 3.18 mm | Polyester Thermoplastic | Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Copper Alloy | 2 | Non Specified - Dual Edge | Through Hole | |||||
EDAC Inc. | 2 | Gold | Flush Mount Top Opening Unthreaded | Dual | -40 °C | 105 ░C | Green | Cantilever | 60 | 30 | Female | 0.125 in | 3.18 mm | Polyester Thermoplastic | Solder Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Copper Alloy | 2 | Non Specified - Dual Edge | Through Hole Right Angle | 3.96 mm | 0.156 in | |||
EDAC Inc. | 2 | Gold | 4-40 Threaded Insert Top Mount Opening | Dual | -40 °C | 105 ░C | Green | Cantilever | Card Guides | 60 | 30 | Female | 0.125 in | 3.18 mm | Polyester Thermoplastic | Solder Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Copper Alloy | 2 | Non Specified - Dual Edge | Through Hole Right Angle | ||||
EDAC Inc. | 2 | Gold | 4-40 Threaded Insert Top Mount Opening | Dual | -40 °C | 105 ░C | Green | Cantilever | Card Guides | 60 | 30 | Female | 0.125 in | 3.18 mm | Polyester Thermoplastic | Solder Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Copper Alloy | 2 | Non Specified - Dual Edge | Through Hole Right Angle | ||||
EDAC Inc. | 2 | Gold | Side Mount Opening Unthreaded | Dual | -40 °C | 105 ░C | Green | Cantilever | 60 | 30 | Female | 0.125 in | 3.18 mm | Polyester Thermoplastic | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Copper Alloy | 2 | Non Specified - Dual Edge | Through Hole | 3.25 mm | 0.128 in | |||
EDAC Inc. | 2 | Gold | 4-40 Threaded Insert Top Mount Opening | Dual | -40 °C | 105 ░C | Green | Cantilever | Card Extender | 60 | 30 | Female | 0.125 in | 3.18 mm | Polyester Thermoplastic | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Copper Alloy | 2 | Non Specified - Dual Edge | Board Edge Straddle Mount | ||||
EDAC Inc. | 2 | Gold | Dual | -40 °C | 105 ░C | Green | Cantilever | 60 | 30 | Female | 0.125 in | 3.18 mm | Polyester Thermoplastic | Solder Eyelet(s) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Copper Alloy | 2 | Non Specified - Dual Edge | Through Hole | 3.25 mm | 0.128 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
346-060 Series
60 Position Female Connector Non Specified - Dual Edge Gold 0.125" (3.18mm) Green
