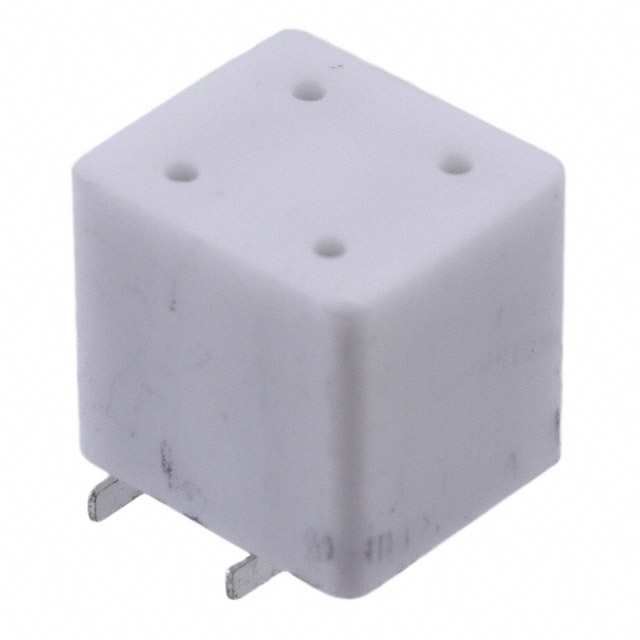

CMF-SD35-2

Obsolete

Bourns Inc.

PTC RESET FUSE 230V 100MA 4SMD

Search across all available documentation for this part.

Obsolete

Bourns Inc.

PTC RESET FUSE 230V 100MA 4SMD

Technical Specifications

Parameters and characteristics for this part

Part	Current - Trip (It)	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Time to Trip	Current - Max [Max]	Resistance - 25°C (Typ)	Thickness (Max) [Max]	Thickness (Max) [Max]	Mounting Type	Current - Hold (Ih) (Max) [Max]	Voltage - Max [Max]	Voltage - Max	Type	Package / Case	Size / Dimension [x]	Size / Dimension [y]	Thickness (Max)	Thickness (Max)
Bourns Inc. CMF-SDP10A-2	360 mA	0.344 in 8.75 mm	0.283 in 7.2 mm	125 °C	-40 °C	3.8 s	1 A	10 Ohms	10.2 mm	0.402 in	Surface Mount	150 mA	230 V	250 V	Ceramic	4-SMD Cube
Bourns Inc. CMF-SDV09-2
Bourns Inc. CMF-SDP10-2	360 mA	11 mm	9 mm	125 °C	-40 °C	3.8 s	1 A	10 Ohms			Surface Mount	180 mA	230 V	250 V	Ceramic	4-SMD Cube	0.433 in	0.354 in	11.5 mm	0.453 in
Bourns Inc. CMF-SDP75-2	150 mA	11 mm	9 mm	125 °C	-40 °C	120 ms	2.5 A	75 Ohms			Surface Mount	70 mA	230 V	600 V	Ceramic	4-SMD Cube	0.433 in	0.354 in	11.5 mm	0.453 in
Bourns Inc. CMF-SDP07-2	200 mA	11 mm	9 mm	125 °C	-40 °C	450 ms	3 A	7 Ohms			Surface Mount	80 mA	230 V	250 V	Ceramic	4-SMD Cube	0.433 in	0.354 in	11.5 mm	0.453 in
Bourns Inc. CMF-SDP35A-2		0.344 in 8.75 mm	0.283 in 7.2 mm	125 °C	-40 °C	0.2 s	2.5 A	35 Ohms	10.2 mm	0.402 in	Surface Mount	110 mA	230 V	600 V	Ceramic	4-SMD Cube
Bourns Inc. CMF-SD35-2	200 mA	10.2 mm	9 mm			0.2 s	3 A	35 Ohms	10.8 mm	0.425 in	Surface Mount	100 mA	230 V	600 V	Ceramic	4-SMD Cube	0.402 in	0.354 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Ceramic PTC Resettable Fuse 230V (600V Int) 100 mA Ih Surface Mount 4-SMD Cube
