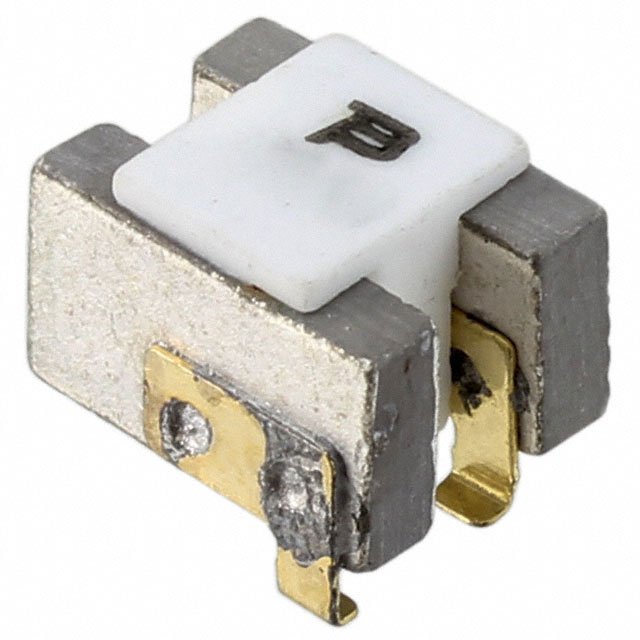

CMF-SDV09-2

Obsolete

Bourns Inc.

PTC RESET FUSE

Search across all available documentation for this part.

Obsolete

Bourns Inc.

PTC RESET FUSE

Technical Specifications

Parameters and characteristics for this part

Specification	CMF-SDV09-2

null

Part	Current - Trip (It)	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Time to Trip	Current - Max [Max]	Resistance - 25°C (Typ)	Thickness (Max) [Max]	Thickness (Max) [Max]	Mounting Type	Current - Hold (Ih) (Max) [Max]	Voltage - Max [Max]	Voltage - Max	Type	Package / Case	Size / Dimension [x]	Size / Dimension [y]	Thickness (Max)	Thickness (Max)
Bourns Inc. CMF-SDP10A-2	360 mA	0.344 in 8.75 mm	0.283 in 7.2 mm	125 °C	-40 °C	3.8 s	1 A	10 Ohms	10.2 mm	0.402 in	Surface Mount	150 mA	230 V	250 V	Ceramic	4-SMD Cube
Bourns Inc. CMF-SDV09-2
Bourns Inc. CMF-SDP10-2	360 mA	11 mm	9 mm	125 °C	-40 °C	3.8 s	1 A	10 Ohms			Surface Mount	180 mA	230 V	250 V	Ceramic	4-SMD Cube	0.433 in	0.354 in	11.5 mm	0.453 in
Bourns Inc. CMF-SDP75-2	150 mA	11 mm	9 mm	125 °C	-40 °C	120 ms	2.5 A	75 Ohms			Surface Mount	70 mA	230 V	600 V	Ceramic	4-SMD Cube	0.433 in	0.354 in	11.5 mm	0.453 in
Bourns Inc. CMF-SDP07-2	200 mA	11 mm	9 mm	125 °C	-40 °C	450 ms	3 A	7 Ohms			Surface Mount	80 mA	230 V	250 V	Ceramic	4-SMD Cube	0.433 in	0.354 in	11.5 mm	0.453 in
Bourns Inc. CMF-SDP35A-2		0.344 in 8.75 mm	0.283 in 7.2 mm	125 °C	-40 °C	0.2 s	2.5 A	35 Ohms	10.2 mm	0.402 in	Surface Mount	110 mA	230 V	600 V	Ceramic	4-SMD Cube
Bourns Inc. CMF-SD35-2	200 mA	10.2 mm	9 mm			0.2 s	3 A	35 Ohms	10.8 mm	0.425 in	Surface Mount	100 mA	230 V	600 V	Ceramic	4-SMD Cube	0.402 in	0.354 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

PTC Resettable Fuse Ih
