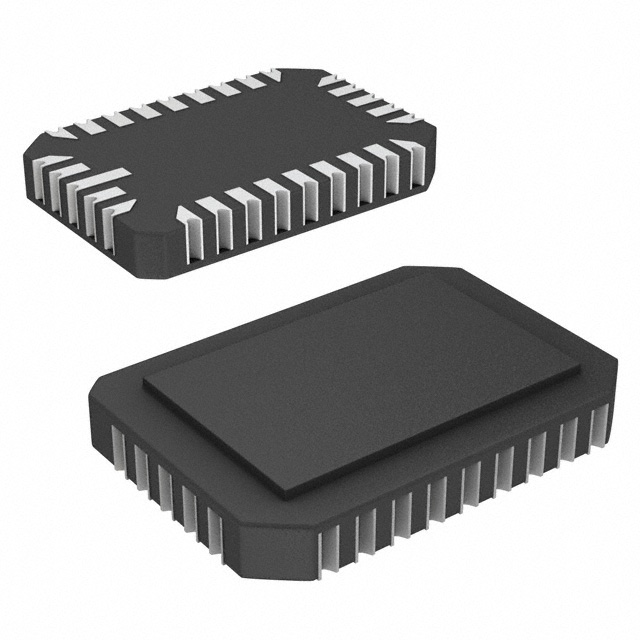

STK11C68-5L35M

Obsolete

Infineon Technologies

IC NVSRAM 64KBIT PARALLEL 28LCC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

STK11C68-5L35M

Obsolete

Infineon Technologies

IC NVSRAM 64KBIT PARALLEL 28LCC

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	STK11C68-5L35M

Access Time	35 ns
Memory Format	NVSRAM
Memory Interface	Parallel
Memory Organization	8 K
Memory Size	64 Kbit
Memory Type	Non-Volatile
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	28-LCC
Supplier Device Package	28-LCC
Supplier Device Package [x]	13.97
Supplier Device Package [y]	8.89
Technology	NVSRAM (Non-Volatile SRAM)
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	4.5 V
Write Cycle Time - Word, Page	35 ns

STK11C68 Series

Part	Voltage - Supply [Min]	Voltage - Supply [Max]	Memory Size	Write Cycle Time - Word, Page [custom]	Write Cycle Time - Word, Page [custom]	Memory Type	Memory Interface	Supplier Device Package	Memory Format	Package / Case [custom]	Package / Case	Package / Case [custom]	Access Time	Technology	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Memory Organization	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Package / Case	Write Cycle Time - Word, Page	Supplier Device Package [x]	Supplier Device Package [y]
Infineon Technologies STK11C68-SF45TR	4.5 V	5.5 V	64 Kbit	45 ns	45 ns	Non-Volatile	Parallel	28-SOIC	NVSRAM	8.69 mm	28-SOIC	0.342 in	45 ns	NVSRAM (Non-Volatile SRAM)	70 °C	0 °C	Surface Mount	8 K
Infineon Technologies STK11C68-5C55M	4.5 V	5.5 V	64 Kbit	55 ns	55 ns	Non-Volatile	Parallel	28-CDIP	NVSRAM		28-CDIP		55 ns	NVSRAM (Non-Volatile SRAM)			Through Hole	8 K	125 °C	-55 °C	7.62 mm	0.3 in
Infineon Technologies STK11C68-5C35M	4.5 V	5.5 V	64 Kbit			Non-Volatile	Parallel	28-CDIP	NVSRAM		28-CDIP		35 ns	NVSRAM (Non-Volatile SRAM)			Through Hole	8 K	125 °C	-55 °C	7.62 mm	0.3 in	35 ns
Infineon Technologies STK11C68-SF45	4.5 V	5.5 V	64 Kbit	45 ns	45 ns	Non-Volatile	Parallel	28-SOIC	NVSRAM	8.69 mm	28-SOIC	0.342 in	45 ns	NVSRAM (Non-Volatile SRAM)	70 °C	0 °C	Surface Mount	8 K
Infineon Technologies STK11C68-5L35M	4.5 V	5.5 V	64 Kbit			Non-Volatile	Parallel	28-LCC	NVSRAM		28-LCC		35 ns	NVSRAM (Non-Volatile SRAM)			Surface Mount	8 K	125 °C	-55 °C			35 ns	13.97	8.89
Infineon Technologies STK11C68-C35I	4.5 V	5.5 V	64 Kbit			Non-Volatile	Parallel	28-CDIP	NVSRAM		28-CDIP		35 ns	NVSRAM (Non-Volatile SRAM)	85 °C	-40 °C	Through Hole	8 K			7.62 mm	0.3 in	35 ns
Infineon Technologies STK11C68-C35I	4.5 V	5.5 V	64 Kbit			Non-Volatile	Parallel	28-CDIP	NVSRAM		28-CDIP		35 ns	NVSRAM (Non-Volatile SRAM)	85 °C	-40 °C	Through Hole	8 K			7.62 mm	0.3 in	35 ns
Infineon Technologies STK11C68-C45I	4.5 V	5.5 V	64 Kbit	45 ns	45 ns	Non-Volatile	Parallel	28-CDIP	NVSRAM		28-CDIP		45 ns	NVSRAM (Non-Volatile SRAM)	85 °C	-40 °C	Through Hole	8 K			7.62 mm	0.3 in
Infineon Technologies STK11C68-SF35TR	4.5 V	5.5 V	64 Kbit			Non-Volatile	Parallel	28-SOIC	NVSRAM	8.69 mm	28-SOIC	0.342 in	35 ns	NVSRAM (Non-Volatile SRAM)	70 °C	0 °C	Surface Mount	8 K					35 ns

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

STK11C68 Series

NVSRAM (Non-Volatile SRAM) Memory IC 64Kbit Parallel 35 ns 28-LCC (13.97x8.89)

Documents

Technical documentation and resources
