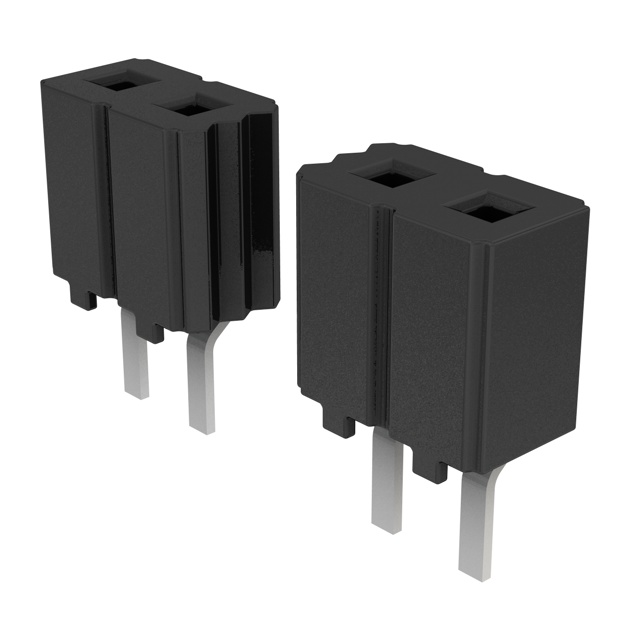

CES-105-01-F-S

Active

Samtec Inc.

CONN RCPT 5POS 0.1 GOLD PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CES-105-01-F-S

Active

Samtec Inc.

CONN RCPT 5POS 0.1 GOLD PCB

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CES-105-01-F-S

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	3 µin
Contact Finish Thickness - Mating	0.076 µm
Contact Length - Post	0.128 "
Contact Length - Post	3.25 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Termination	Solder

CES-105 Series

Part	Contact Finish - Mating	Connector Type	Number of Positions Loaded	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions	Contact Length - Post [x]	Contact Length - Post [x]	Pitch - Mating	Pitch - Mating	Contact Type	Number of Rows	Mounting Type	Fastening Type	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Contact Shape	Insulation Color	Contact Material	Insulation Material	Insulation Height	Insulation Height	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Post	Contact Length - Post
Samtec Inc. CES-105-02-L-D	Gold	Receptacle	All	Tin	10 çin	0.25 çm	2.54 mm	0.1 in	10	5.66 mm	0.223 in	0.1 in	2.54 mm	Female Socket	2	Through Hole	Push-Pull	UL94 V-0	-55 °C	125 °C	Solder	Square	Black	Phosphor Bronze	Polybutylene Terephthalate (PBT)
Samtec Inc. CES-105-02-S-S	Gold	Receptacle	All	Tin	30 Áin	0.76 Ám				5.66 mm	0.223 in	0.1 in	2.54 mm	Female Socket	1	Through Hole	Push-Pull	UL94 V-0	-55 °C	125 °C	Solder	Square	Black	Phosphor Bronze	Polybutylene Terephthalate (PBT)
Samtec Inc. CES-105-02-L-S-RA	Gold	Receptacle	All	Tin	10 çin	0.25 çm				3.05 mm	0.12 in	0.1 in	2.54 mm	Female Socket	1	Through Hole Right Angle	Push-Pull	UL94 V-0	-55 °C	125 °C	Solder	Square	Black	Phosphor Bronze	Polybutylene Terephthalate (PBT)	3.05 mm	0.12 in
Samtec Inc. CES-105-02-L-S	Gold	Receptacle	All	Tin	10 çin	0.25 çm				5.66 mm	0.223 in	0.1 in	2.54 mm	Female Socket	1	Through Hole	Push-Pull	UL94 V-0	-55 °C	125 °C	Solder	Square	Black	Phosphor Bronze	Polybutylene Terephthalate (PBT)
Samtec Inc. CES-105-02-G-D	Gold	Receptacle	All	Gold	20 µin	0.51 µm	2.54 mm	0.1 in	10	5.66 mm	0.223 in	0.1 in	2.54 mm	Female Socket	2	Through Hole	Push-Pull	UL94 V-0	-55 °C	125 °C	Solder	Square	Black	Phosphor Bronze	Polybutylene Terephthalate (PBT)			3 µin	0.076 µm
Samtec Inc. CES-105-01-S-S	Gold	Receptacle	All	Tin	30 Áin	0.76 Ám						0.1 in	2.54 mm	Female Socket	1	Through Hole	Push-Pull	UL94 V-0	-55 °C	125 °C	Solder	Square	Black	Phosphor Bronze	Polybutylene Terephthalate (PBT)					0.128 "	3.25 mm
Samtec Inc. CES-105-01-S-D	Gold	Receptacle	All	Tin	30 Áin	0.76 Ám	2.54 mm	0.1 in	10			0.1 in	2.54 mm	Female Socket	2	Through Hole	Push-Pull	UL94 V-0	-55 °C	125 °C	Solder	Square	Black	Phosphor Bronze	Polybutylene Terephthalate (PBT)					0.128 "	3.25 mm
Samtec Inc. CES-105-01-F-S	Gold	Receptacle	All	Tin	3 µin	0.076 µm						0.1 in	2.54 mm	Female Socket	1	Through Hole	Push-Pull	UL94 V-0	-55 °C	125 °C	Solder	Square	Black	Phosphor Bronze	Polybutylene Terephthalate (PBT)					0.128 "	3.25 mm
Samtec Inc. CES-105-02-G-S	Gold	Receptacle	All	Gold	20 µin	0.51 µm				5.66 mm	0.223 in	0.1 in	2.54 mm	Female Socket	1	Through Hole	Push-Pull	UL94 V-0	-55 °C	125 °C	Solder	Square	Black	Phosphor Bronze	Polybutylene Terephthalate (PBT)			3 µin	0.076 µm
Samtec Inc. CES-105-02-T-D		Receptacle	All	Tin			2.54 mm	0.1 in	10	5.66 mm	0.223 in	0.1 in	2.54 mm	Female Socket	2	Through Hole	Push-Pull	UL94 V-0	-55 °C	105 ░C	Solder	Square	Black	Phosphor Bronze	Polybutylene Terephthalate (PBT)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	44	$ 0.95

Description

General part information

CES-105 Series

5 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold
