BQ25176MDSGR
Active800-MA LINEAR BATTERY CHARGER FOR ONE-CELL LI-ION AND LIFEPO4 WITH VINDPM
Deep-Dive with AI
Search across all available documentation for this part.
BQ25176MDSGR
Active800-MA LINEAR BATTERY CHARGER FOR ONE-CELL LI-ION AND LIFEPO4 WITH VINDPM
Technical Specifications
Parameters and characteristics for this part
| Specification | BQ25176MDSGR |
|---|---|
| Battery Chemistry | Multi-Chemistry |
| Battery Pack Voltage | 4.4 V |
| Charge Current - Max [Max] | 800 mA |
| Current - Charging | Constant - Programmable |
| Fault Protection | Short Circuit, Over Voltage, Over Current, Over Temperature |
| Mounting Type | Surface Mount |
| Number of Cells | 1 |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -40 °C |

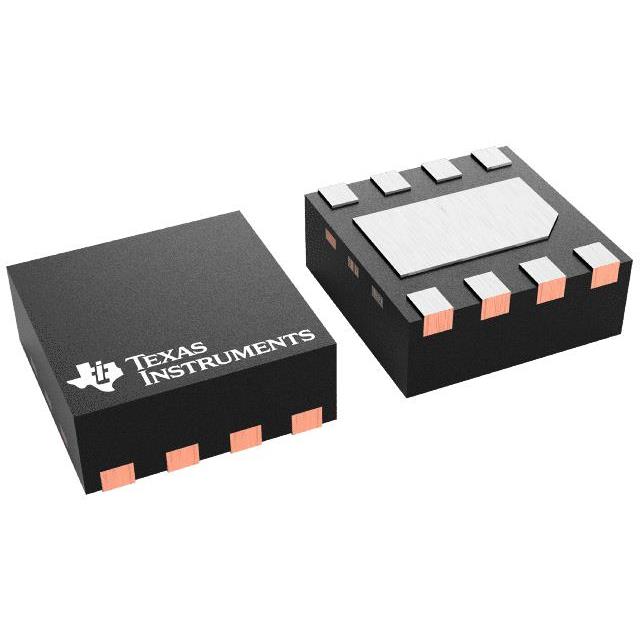

| Package / Case | 8-WFDFN Exposed Pad |
| Programmable Features | Voltage, Current |
| Supplier Device Package | 8-WSON (2x2) |
| Voltage - Supply (Max) [Max] | 18 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.30 | |
| 10 | $ 1.16 | |||
| 25 | $ 1.10 | |||
| 100 | $ 0.91 | |||
| 250 | $ 0.85 | |||
| 500 | $ 0.75 | |||
| 1000 | $ 0.59 | |||
| Digi-Reel® | 1 | $ 1.30 | ||
| 10 | $ 1.16 | |||
| 25 | $ 1.10 | |||
| 100 | $ 0.91 | |||
| 250 | $ 0.85 | |||
| 500 | $ 0.75 | |||
| 1000 | $ 0.59 | |||
| Tape & Reel (TR) | 3000 | $ 0.55 | ||
| 6000 | $ 0.52 | |||
| 15000 | $ 0.50 | |||
| Texas Instruments | LARGE T&R | 1 | $ 0.96 | |
| 100 | $ 0.74 | |||
| 250 | $ 0.55 | |||
| 1000 | $ 0.39 | |||
BQ25176M Series
800-mA linear battery charger for one-cell Li-ion and LiFePO4 with VINDPM
| Part | Number of Cells | Charge Current - Max [Max] | Fault Protection | Programmable Features | Battery Pack Voltage | Mounting Type | Package / Case | Supplier Device Package | Voltage - Supply (Max) [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Battery Chemistry | Current - Charging |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments BQ25176MDSGR | 1 | 800 mA | Over Current, Over Temperature, Over Voltage, Short Circuit | Current, Voltage | 4.4 V | Surface Mount | 8-WFDFN Exposed Pad | 8-WSON (2x2) | 18 V | 125 ¯C | -40 °C | Multi-Chemistry | Constant - Programmable |
Description
General part information
BQ25176M Series
The BQ25176M is an integrated 800-mA linear solar charger for 1-cell Li-Ion, Li-Polymer, and LiFePO4batteries with continual charge mode and battery tracking VINDPM. The device has a single power output that charges the battery. When the system load is placed in parallel with the battery, the charge current is shared between the system and the battery.
The device has four phases for charging a Li-Ion/Li-Poly battery: trickle charge to bring the battery voltage up to VBAT_SHORT, precharge to recover a fully discharged battery, fast-charge constant current to supply the bulk of the charge, and voltage regulation to reach full capacity.
In all charge phases, an internal control loop monitors the IC junction temperature and reduces the charge current if an internal temperature threshold, TREG, is exceeded.
