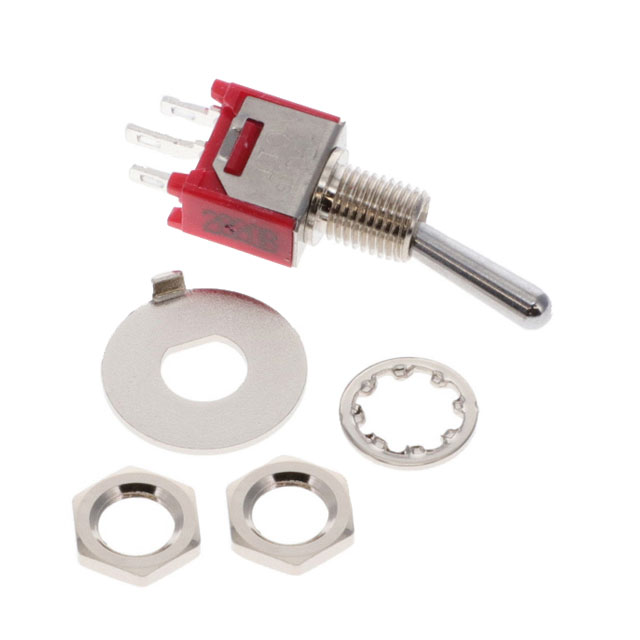

BNT11SEBQE
ActiveCIT Relay and Switch
SWITCH TOGGLE SPDT 3A 120V
BNT11SEBQE
ActiveCIT Relay and Switch
SWITCH TOGGLE SPDT 3A 120V
Description
General part information
BNT11 Series
Toggle Switch SPDT Panel Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | BNT11SEBQE |
|---|---|
| Actuator Length | 9.4 mm |
| Actuator Material | Chrome Plated, Brass |
| Actuator Type | Standard Round |
| Bushing Thread | 10-48 |
| Circuit | SPDT |
| Current Rating | 3 A |
| Electrical Life (Cycles) | 30000 Cycles |
| Illumination | Non-Illuminated |
| Mounting Type | Panel Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Panel Cutout Diameter | 4.95 mm |
| Panel Cutout Shape | Circular |
| Switch Function | On-On |
| Termination Style | Solder Lug |
| Voltage Rating - AC | 120 V |
| Voltage Rating - DC | 28 V |
