BNT11 Series

Part	Actuator Type	Actuator Length	Termination Style	Circuit	Operating Temperature (Min)	Operating Temperature (Max)	Voltage Rating - AC	Switch Function	Current Rating	Voltage Rating - DC	Bushing Thread	Illumination	Mounting Type	Panel Cutout Diameter	Panel Cutout Shape	Actuator Material	Electrical Life (Cycles)
CIT Relay and Switch BNT11SEBQE	Standard Round	9.4 mm	Solder Lug	SPDT	-40 °C	85 °C	120 V	On-On	3 A	28 V	10-48	Non-Illuminated	Panel Mount	4.95 mm	Circular	Brass Chrome Plated	30000 Cycles

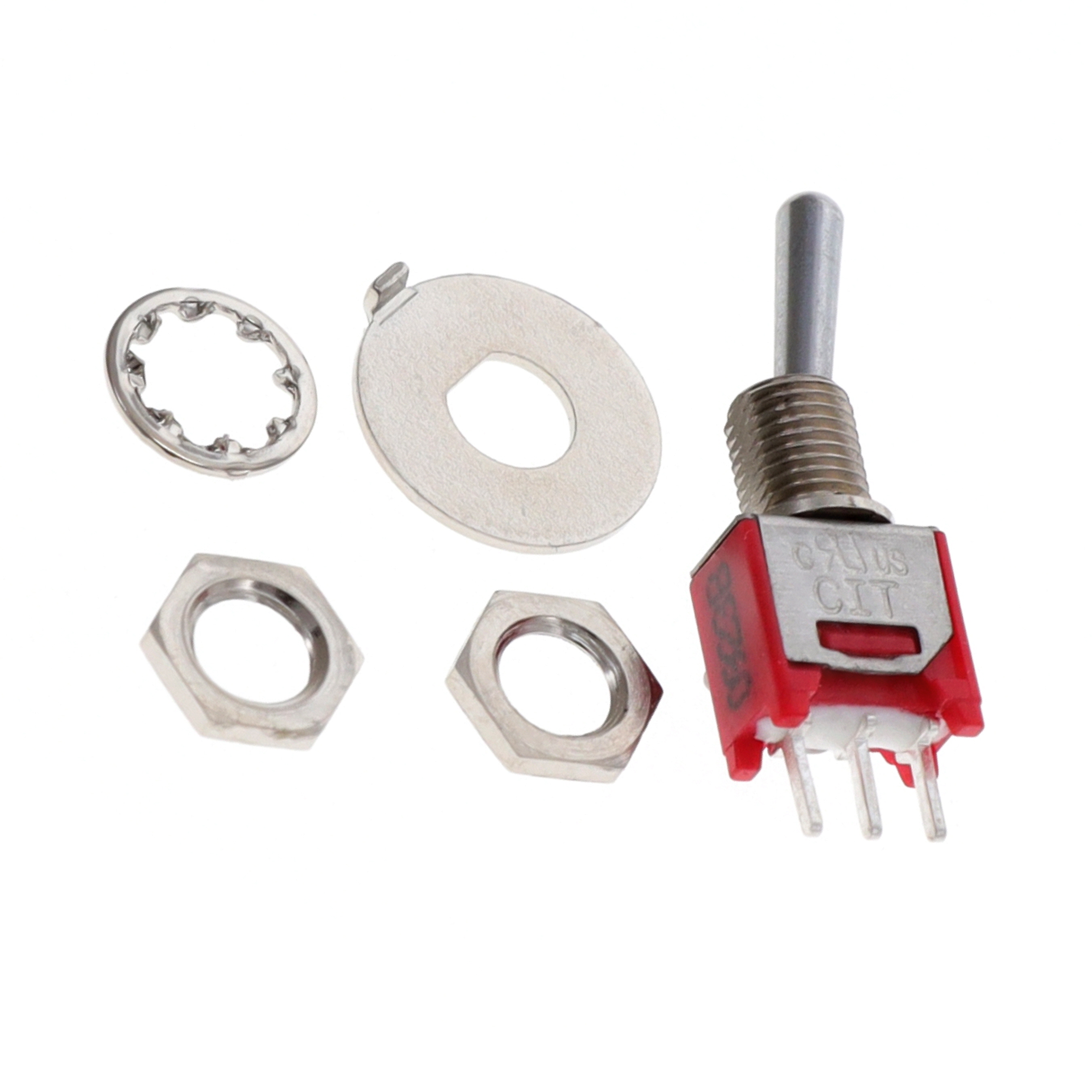

CIT Relay and Switch BNT11SECQE	Standard Round	9.4 mm	PC Pin	SPDT	-40 °C	85 °C	120 V	On-On	3 A	28 V	10-48	Non-Illuminated	Through Hole	4.95 mm	Circular	Brass Chrome Plated	30000 Cycles

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

3D models and CAD resources for this part

Technical documentation and resources
