General part information

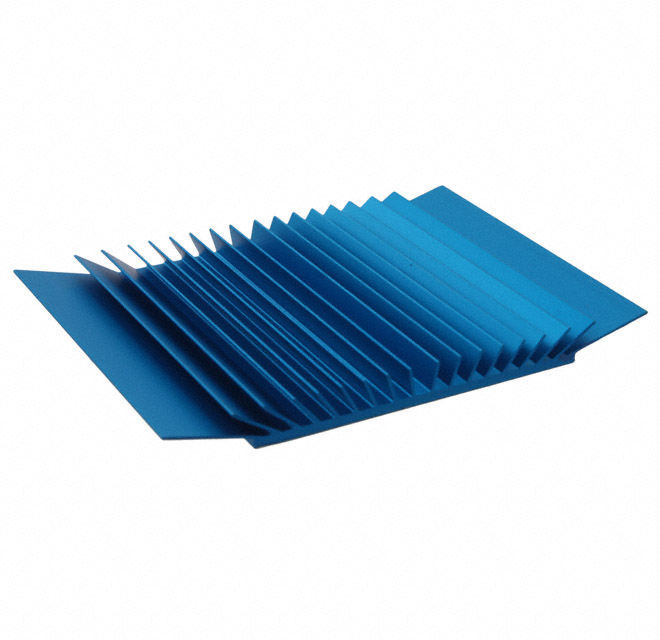

Heat Sinks blueICE BGA Heat Sink, High Performance, Ultra Low Profile, T412, 58.2x61x7mm
Technical documentation and resources
Parameters and characteristics commom to parts in this series
| Specification | ATS-60003-C1-R0 | blueICE Series |
|---|---|---|
| Attachment Method | Thermal Tape, Adhesive (Included) | Thermal Tape, Adhesive (Included) |
| Fin Height [z] | 7 mm | 4 - 7 mm |
| Fin Height [z] | 0.275 in | 0.157 - 0.275 " |
| Length [x] | 2.291 in | 0.992 - 2.291 in |
| Length [x] | 58.2 mm | 25.2 - 58.2 mm |
| Material | Aluminum | Aluminum |
| Material Finish | Blue Anodized | Blue Anodized |
| Package Cooled | BGA | BGA |
| Shape | Rectangular, Angled Fins | Angled Fins, Square, Rectangular, Angled Fins |
| Thermal Resistance @ Forced Air Flow | 200 LFM, 2.2 °C/W | 2.2 - 200 °C/W |
| Type | Top Mount | Top Mount |
| Width [x] | 2.401 in | 0.992 - 2.401 " |
| Width [x] | 61 mm | 25.2 - 61 mm |
Heat Sinks blueICE BGA Heat Sink, High Performance, Ultra Low Profile, T412, 58.2x61x7mm
| Part | Fin Height [z] | Fin Height [z] | Material | Material Finish | Width [x] | Width [x] | Thermal Resistance @ Forced Air Flow | Attachment Method | Shape | Type | Length [x] | Length [x] | Package Cooled |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Advanced Thermal Solutions Inc. ATS-60000-C1-R0 | 4 mm | 0.157 " | Aluminum | Blue Anodized | 25.2 mm | 0.992 " | 14.8 °C/W, 200 LFM | Thermal Tape, Adhesive (Included) | Angled Fins, Square | Top Mount | 25.2 mm | 0.992 in | BGA |
Advanced Thermal Solutions Inc. ATS-60002-C1-R0 | 5.5 mm | 0.216 in | Aluminum | 61 mm | 2.401 in | 4 °C/W, 200 LFM | Thermal Tape, Adhesive (Included) | Rectangular, Angled Fins | Top Mount | 58.2 mm | 2.291 in | BGA | |
Advanced Thermal Solutions Inc. ATS-60003-C1-R0 | 7 mm | 0.275 in | Aluminum | Blue Anodized | 61 mm | 2.401 in | 2.2 °C/W, 200 LFM | Thermal Tape, Adhesive (Included) | Rectangular, Angled Fins | Top Mount | 58.2 mm | 2.291 in | BGA |
