Technical Specifications
Parameters and characteristics for this part
| Specification | ATS-60000-C1-R0 |
|---|---|
| Attachment Method | Thermal Tape, Adhesive (Included) |
| Fin Height [z] | 4 mm |
| Fin Height [z] | 0.157 " |
| Length [x] | 25.2 mm |
| Length [x] | 0.992 in |
| Material | Aluminum |
| Material Finish | Blue Anodized |
| Package Cooled | BGA |
| Shape | Angled Fins, Square |
| Thermal Resistance @ Forced Air Flow | 14.8 °C/W, 200 LFM |
| Type | Top Mount |
| Width [x] | 25.2 mm |
| Width [x] | 0.992 " |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information

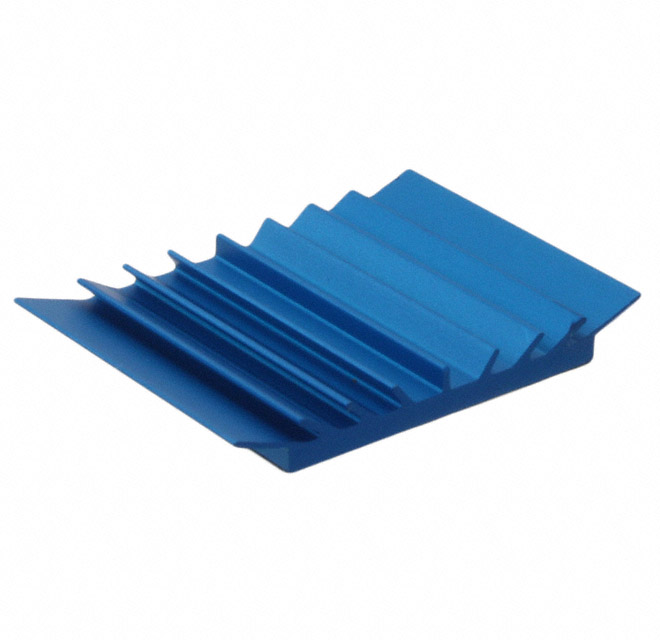

ATS-60000-C1-R0
Heat Sink BGA Aluminum Top Mount
