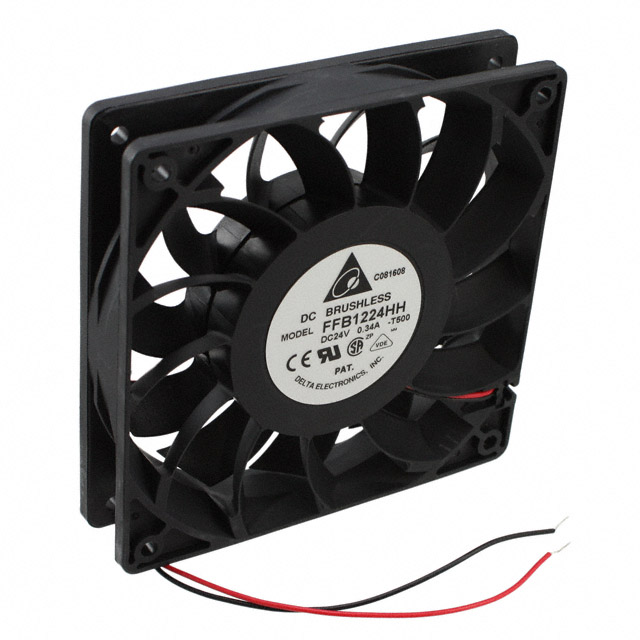

FFB1224HH-T500

Active

Delta Electronics

FAN AXIAL 120X25.4MM 24VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsFans VDE Cert Datasheet +2

FFB1224HH-T500

Active

Delta Electronics

FAN AXIAL 120X25.4MM 24VDC WIRE

Deep-Dive with AI

DocumentsFans VDE Cert Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FFB1224HH-T500

Air Flow	114.7 CFM
Air Flow	3.21 m³/min
Approval Agency	UL, CE, VDE, CSA
Bearing Type	Ball
Current Rating (Amps)	0.28 A
Fan Type	Tubeaxial
Ingress Protection	IP55 - Dust Protected, Water Resistant
Lifetime @ Temp.	70000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	49.7 dB(A)
Operating Temperature [Max]	60 °C
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	6.72 W
RPM	3100 RPM
Size / Dimension [x]	120 mm
Size / Dimension [y]	120 mm
Static Pressure	0.288 in H2O
Static Pressure	71.7 Pa
Termination	2 Wire Leads
Voltage - Rated	24 VDC
Voltage Range [Max]	26.4 VDC
Voltage Range [Min]	14 VDC
Weight	205.02 g
Weight	0.452 lb
Width [y]	25.4 mm

FFB1224 Series

Part	Noise	Current Rating (Amps)	RPM	Lifetime @ Temp.	Voltage Range [Max]	Voltage Range [Min]	Material - Frame	Static Pressure	Static Pressure	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Width [y]	Air Flow	Air Flow	Material - Blade	Features	Weight	Weight	Approval Agency	Power (Watts)	Fan Type	Size / Dimension [y]	Size / Dimension [x]	Bearing Type	Termination	Voltage - Rated	Ingress Protection
Delta Electronics FFB1224VHE-BR00	53 dB	0.56 A	3200 RPM	70000 Hrs	26.4 VDC	14 VDC	Plastic	110.8 Pa	0.445 in H2O	-10 °C	-10 °C	60 °C	60 °C	38 mm	4.25 m³/min	151.9 CFM	Plastic	Locked Rotor Sensor	370.13 g	0.816 lb	CE CSA UL VDE	13.44 W	Tubeaxial	120 mm	120 mm	Ball	3 Wire Leads	24 VDC
Delta Electronics FFB1224EHE-F00	59 dB(A)	1 A	4000 RPM	70000 Hrs	26.4 VDC	14 VDC	Plastic	174.4 Pa	0.7 in H2O	-10 °C	-10 °C	50 °C	50 °C	38 mm	5.32 m³/min	190 CFM	Plastic	Locked Rotor Protection Speed Sensor (Tach)	370.13 g	0.816 lb	CE CSA UL VDE	24 W	Tubeaxial	120 mm	120 mm	Ball	3 Wire Leads	24 VDC
Delta Electronics FFB1224EH-R00	56.4 dB(A)	0.63 A	4000 RPM	70000 Hrs	26.4 VDC	14 VDC	Plastic	121.9 Pa	0.489 in H2O	-10 °C	-10 °C	60 °C	60 °C	25.4 mm	4.21 m³/min	150.3 CFM	Plastic	Locked Rotor Sensor	205.02 g	0.452 lb	CE CSA UL VDE	15.12 W	Tubeaxial	120 mm	120 mm	Ball	3 Wire Leads	24 VDC
Delta Electronics FFB1224VHE-R00	53 dB	0.56 A	3200 RPM	70000 Hrs	26.4 VDC	14 VDC	Plastic	110.8 Pa	0.445 in H2O	-10 °C	-10 °C	60 °C	60 °C	38 mm	4.25 m³/min	151.9 CFM	Plastic	Locked Rotor Sensor	370.13 g	0.816 lb	CE CSA UL VDE	13.44 W	Tubeaxial	120 mm	120 mm	Ball	3 Wire Leads	24 VDC
Delta Electronics FFB1224SHE-R00	56.5 dB	800 mA	3600 RPM	70000 Hrs	26.4 VDC	14 VDC	Plastic	140.2 Pa	0.563 in H2O	-10 °C	-10 °C	60 °C	60 °C	38 mm	4.79 m³/min	170.9 CFM	Plastic	Locked Rotor Sensor	370.13 g	0.816 lb	CE CSA UL VDE	19.2 W	Tubeaxial	120 mm	120 mm	Ball	3 Wire Leads	24 VDC
Delta Electronics FFB1224EHE	59 dB(A)	1 A	4000 RPM	70000 Hrs	26.4 VDC	14 VDC	Plastic	174.4 Pa	0.7 in H2O	-10 °C	-10 °C	50 °C	50 °C	38 mm	5.32 m³/min	190 CFM	Plastic		370.13 g	0.816 lb	CE CSA UL VDE	24 W	Tubeaxial	120 mm	120 mm	Ball	2 Wire Leads	24 VDC
Delta Electronics FFB1224EH-TZUK	56.4 dB(A)	0.63 A	4000 RPM	70000 Hrs	26.4 VDC	14 VDC	Plastic	121.9 Pa	0.489 in H2O	-10 °C	-10 °C	60 °C	60 °C	25.4 mm	4.21 m³/min	150.3 CFM	Plastic		205.02 g	0.452 lb	CE CSA UL VDE	15.12 W	Tubeaxial	120 mm	120 mm	Ball	2 Wire Leads	24 VDC	IP55 - Dust Protected Water Resistant
Delta Electronics FFB1224HH-T500	49.7 dB(A)	0.28 A	3100 RPM	70000 Hrs	26.4 VDC	14 VDC	Plastic	71.7 Pa	0.288 in H2O	-10 °C	-10 °C	60 °C	60 °C	25.4 mm	3.21 m³/min	114.7 CFM	Plastic		205.02 g	0.452 lb	CE CSA UL VDE	6.72 W	Tubeaxial	120 mm	120 mm	Ball	2 Wire Leads	24 VDC	IP55 - Dust Protected Water Resistant
Delta Electronics FFB1224SHE	56.5 dB	800 mA	3600 RPM	70000 Hrs	26.4 VDC	14 VDC	Plastic	140.2 Pa	0.563 in H2O	-10 °C	-10 °C	60 °C	60 °C	38 mm	4.79 m³/min	170.9 CFM	Plastic		370.13 g	0.816 lb	CE CSA UL VDE	19.2 W	Tubeaxial	120 mm	120 mm	Ball	2 Wire Leads	24 VDC
Delta Electronics FFB1224HH-R00	49.7 dB(A)	0.28 A	3100 RPM	70000 Hrs	26.4 VDC	14 VDC	Plastic	71.7 Pa	0.288 in H2O	-10 °C	-10 °C	60 °C	60 °C	25.4 mm	3.21 m³/min	114.7 CFM	Plastic	Locked Rotor Sensor	205.02 g	0.452 lb	CE CSA UL VDE	6.72 W	Tubeaxial	120 mm	120 mm	Ball	3 Wire Leads	24 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	108	$ 27.10

Description

General part information

FFB1224 Series

Fan Tubeaxial 24VDC Square - 120mm L x 120mm H Ball 114.7 CFM (3.21m³/min) 2 Wire Leads
