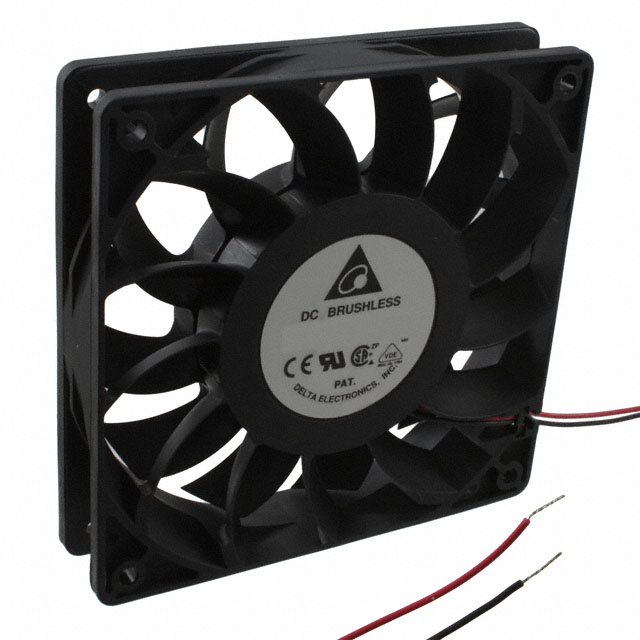

FFB1224EH-TZUK
ObsoleteDelta Electronics
FAN AXIAL 120X25.4MM 24VDC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
FFB1224EH-TZUK
ObsoleteDelta Electronics
FAN AXIAL 120X25.4MM 24VDC WIRE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | FFB1224EH-TZUK |
|---|---|
| Air Flow | 150.3 CFM |
| Air Flow | 4.21 m³/min |
| Approval Agency | UL, CE, VDE, CSA |
| Bearing Type | Ball |
| Current Rating (Amps) | 0.63 A |
| Fan Type | Tubeaxial |
| Ingress Protection | IP55 - Dust Protected, Water Resistant |
| Lifetime @ Temp. | 70000 Hrs |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Noise | 56.4 dB(A) |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -10 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 15.12 W |
| RPM | 4000 RPM |
| Size / Dimension [x] | 120 mm |
| Size / Dimension [y] | 120 mm |
| Static Pressure | 121.9 Pa |
| Static Pressure | 0.489 in H2O |
| Termination | 2 Wire Leads |
| Voltage - Rated | 24 VDC |
| Voltage Range [Max] | 26.4 VDC |
| Voltage Range [Min] | 14 VDC |
| Weight | 205.02 g |
| Weight | 0.452 lb |
| Width [y] | 25.4 mm |
FFB1224 Series
| Part | Noise | Current Rating (Amps) | RPM | Lifetime @ Temp. | Voltage Range [Max] | Voltage Range [Min] | Material - Frame | Static Pressure | Static Pressure | Operating Temperature [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Operating Temperature [Max] | Width [y] | Air Flow | Air Flow | Material - Blade | Features | Weight | Weight | Approval Agency | Power (Watts) | Fan Type | Size / Dimension [y] | Size / Dimension [x] | Bearing Type | Termination | Voltage - Rated | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Delta Electronics | 53 dB | 0.56 A | 3200 RPM | 70000 Hrs | 26.4 VDC | 14 VDC | Plastic | 110.8 Pa | 0.445 in H2O | -10 °C | -10 °C | 60 °C | 60 °C | 38 mm | 4.25 m³/min | 151.9 CFM | Plastic | Locked Rotor Sensor | 370.13 g | 0.816 lb | CE CSA UL VDE | 13.44 W | Tubeaxial | 120 mm | 120 mm | Ball | 3 Wire Leads | 24 VDC | |
Delta Electronics | 59 dB(A) | 1 A | 4000 RPM | 70000 Hrs | 26.4 VDC | 14 VDC | Plastic | 174.4 Pa | 0.7 in H2O | -10 °C | -10 °C | 50 °C | 50 °C | 38 mm | 5.32 m³/min | 190 CFM | Plastic | Locked Rotor Protection Speed Sensor (Tach) | 370.13 g | 0.816 lb | CE CSA UL VDE | 24 W | Tubeaxial | 120 mm | 120 mm | Ball | 3 Wire Leads | 24 VDC | |
Delta Electronics | 56.4 dB(A) | 0.63 A | 4000 RPM | 70000 Hrs | 26.4 VDC | 14 VDC | Plastic | 121.9 Pa | 0.489 in H2O | -10 °C | -10 °C | 60 °C | 60 °C | 25.4 mm | 4.21 m³/min | 150.3 CFM | Plastic | Locked Rotor Sensor | 205.02 g | 0.452 lb | CE CSA UL VDE | 15.12 W | Tubeaxial | 120 mm | 120 mm | Ball | 3 Wire Leads | 24 VDC | |
Delta Electronics | 53 dB | 0.56 A | 3200 RPM | 70000 Hrs | 26.4 VDC | 14 VDC | Plastic | 110.8 Pa | 0.445 in H2O | -10 °C | -10 °C | 60 °C | 60 °C | 38 mm | 4.25 m³/min | 151.9 CFM | Plastic | Locked Rotor Sensor | 370.13 g | 0.816 lb | CE CSA UL VDE | 13.44 W | Tubeaxial | 120 mm | 120 mm | Ball | 3 Wire Leads | 24 VDC | |
Delta Electronics | 56.5 dB | 800 mA | 3600 RPM | 70000 Hrs | 26.4 VDC | 14 VDC | Plastic | 140.2 Pa | 0.563 in H2O | -10 °C | -10 °C | 60 °C | 60 °C | 38 mm | 4.79 m³/min | 170.9 CFM | Plastic | Locked Rotor Sensor | 370.13 g | 0.816 lb | CE CSA UL VDE | 19.2 W | Tubeaxial | 120 mm | 120 mm | Ball | 3 Wire Leads | 24 VDC | |
Delta Electronics | 59 dB(A) | 1 A | 4000 RPM | 70000 Hrs | 26.4 VDC | 14 VDC | Plastic | 174.4 Pa | 0.7 in H2O | -10 °C | -10 °C | 50 °C | 50 °C | 38 mm | 5.32 m³/min | 190 CFM | Plastic | 370.13 g | 0.816 lb | CE CSA UL VDE | 24 W | Tubeaxial | 120 mm | 120 mm | Ball | 2 Wire Leads | 24 VDC | ||
Delta Electronics | 56.4 dB(A) | 0.63 A | 4000 RPM | 70000 Hrs | 26.4 VDC | 14 VDC | Plastic | 121.9 Pa | 0.489 in H2O | -10 °C | -10 °C | 60 °C | 60 °C | 25.4 mm | 4.21 m³/min | 150.3 CFM | Plastic | 205.02 g | 0.452 lb | CE CSA UL VDE | 15.12 W | Tubeaxial | 120 mm | 120 mm | Ball | 2 Wire Leads | 24 VDC | IP55 - Dust Protected Water Resistant | |
Delta Electronics | 49.7 dB(A) | 0.28 A | 3100 RPM | 70000 Hrs | 26.4 VDC | 14 VDC | Plastic | 71.7 Pa | 0.288 in H2O | -10 °C | -10 °C | 60 °C | 60 °C | 25.4 mm | 3.21 m³/min | 114.7 CFM | Plastic | 205.02 g | 0.452 lb | CE CSA UL VDE | 6.72 W | Tubeaxial | 120 mm | 120 mm | Ball | 2 Wire Leads | 24 VDC | IP55 - Dust Protected Water Resistant | |
Delta Electronics | 56.5 dB | 800 mA | 3600 RPM | 70000 Hrs | 26.4 VDC | 14 VDC | Plastic | 140.2 Pa | 0.563 in H2O | -10 °C | -10 °C | 60 °C | 60 °C | 38 mm | 4.79 m³/min | 170.9 CFM | Plastic | 370.13 g | 0.816 lb | CE CSA UL VDE | 19.2 W | Tubeaxial | 120 mm | 120 mm | Ball | 2 Wire Leads | 24 VDC | ||
Delta Electronics | 49.7 dB(A) | 0.28 A | 3100 RPM | 70000 Hrs | 26.4 VDC | 14 VDC | Plastic | 71.7 Pa | 0.288 in H2O | -10 °C | -10 °C | 60 °C | 60 °C | 25.4 mm | 3.21 m³/min | 114.7 CFM | Plastic | Locked Rotor Sensor | 205.02 g | 0.452 lb | CE CSA UL VDE | 6.72 W | Tubeaxial | 120 mm | 120 mm | Ball | 3 Wire Leads | 24 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
FFB1224 Series
Fan Tubeaxial 24VDC Square - 120mm L x 120mm H Ball 150.3 CFM (4.21m³/min) 2 Wire Leads
