IMM101T056MXUMA1

Active

Infineon Technologies

☆ IPM WITH PMSM/BLDC MOTOR CONTROLLER AND MOSFET POWER STAGE ☆ NO INVERTER HARDWARE DESIGN NEEDED ☆ REDUCED BOM COUNT AND PCB SIZE ☆ SENSORLESS FOC ALGORITHM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

IMM101T056MXUMA1

Active

Infineon Technologies

☆ IPM WITH PMSM/BLDC MOTOR CONTROLLER AND MOSFET POWER STAGE ☆ NO INVERTER HARDWARE DESIGN NEEDED ☆ REDUCED BOM COUNT AND PCB SIZE ☆ SENSORLESS FOC ALGORITHM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	IMM101T056MXUMA1

Applications	General Purpose
Current - Output	4 A
Function	Driver
Interface	PWM
Motor Type - AC, DC	Brushless DC (BLDC)
Motor Type - Stepper	Bipolar
Mounting Type	Surface Mount
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Output Configuration	Half Bridge (3)

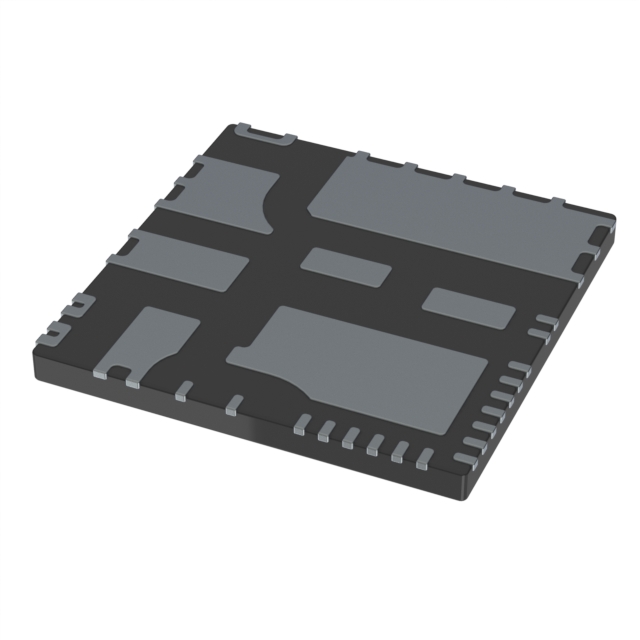

Package / Case	38-PowerVQFN
Supplier Device Package	PG-IQFN-38-1
Technology	Power MOSFET
Voltage - Supply [Max]	16.5 V
Voltage - Supply [Min]	13.5 V

IMM101 Series

Part	Output Configuration	Applications	Current - Output	Voltage - Supply [Min]	Voltage - Supply [Max]	Motor Type - Stepper	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Interface	Supplier Device Package	Motor Type - AC, DC	Technology	Package / Case	Function
Infineon Technologies IMM101T015MXUMA1	Half Bridge (3)	General Purpose	4 A	13.5 V	16.5 V	Bipolar	-40 °C	115 °C	Surface Mount	PWM	PG-IQFN-38-1	Brushless DC (BLDC)	Power MOSFET	38-PowerVQFN	Driver
Infineon Technologies IMM101T056MXUMA1	Half Bridge (3)	General Purpose	4 A	13.5 V	16.5 V	Bipolar	-40 °C	115 °C	Surface Mount	PWM	PG-IQFN-38-1	Brushless DC (BLDC)	Power MOSFET	38-PowerVQFN	Driver
Infineon Technologies IMM101T046MXUMA1	Half Bridge (3)	General Purpose	4 A	13.5 V	16.5 V	Bipolar	-40 °C	115 °C	Surface Mount	PWM	PG-IQFN-38-1	Brushless DC (BLDC)	Power MOSFET	38-PowerVQFN	Driver

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 10.74
		10	$ 9.70
		25	$ 9.25
		100	$ 8.03
		250	$ 7.67
		500	$ 6.99
		1000	$ 6.09
	Digi-Reel®	1	$ 10.74
		10	$ 9.70
		25	$ 9.25
		100	$ 8.03
		250	$ 7.67
		500	$ 6.99
		1000	$ 6.09
	Tape & Reel (TR)	2000	$ 5.86

Description

General part information

IMM101 Series

iMOTION™ IPMintegrating MCE 2.0 motor controller and three phase inverter with 600 V / 0.95 Ω RDS(on)MOSFETs in 12x12 mm PQFN package.

Documents

Technical documentation and resources
