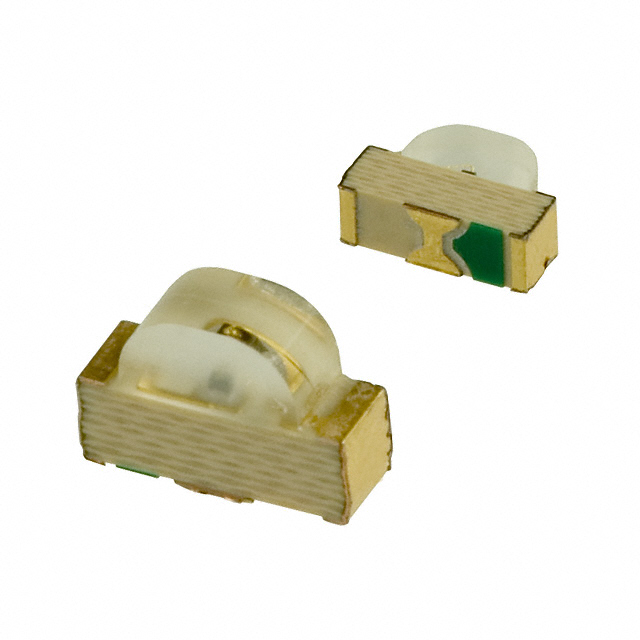

BR1101F-TR

Obsolete

Stanley Electric Co

LED UNI-COLOR RED 660NM 2-PIN SMD T/R

Search across all available documentation for this part.

Obsolete

Stanley Electric Co

LED UNI-COLOR RED 660NM 2-PIN SMD T/R

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BR1101F-TR	BR1101 Series

Color	Red	Red
Configuration	Standard	Standard
Current - Test	20 mA	20 mA
Height (Max)	-	1.9 mm
Height (Max) [Max] [z]	1 mm	1 mm
Lens Color	Colorless	Colorless
Lens Size	-	1.5 mm
Lens Size [x]	2 mm	2 mm
Lens Size [y]	1 mm	1 mm
Lens Style	Rectangle with Domed Top	Rectangle with Domed Top, Square with Flat Top
Lens Transparency	Clear	Clear
Millicandela Rating	12.4 mcd	12.4 - 12.8 mcd
Mounting Type	Surface Mount, Right Angle	Surface Mount, Right Angle, Surface Mount
Package / Case	2-SMD, No Lead	2-SMD, No Lead, 1206 (3016 Metric)
Size / Dimension [x]	3 mm	3 mm
Size / Dimension [y]	2 mm	1.5 - 2 mm
Supplier Device Package	2-SMD	2-SMD, 3216 Type
Viewing Angle	174 °, 130 °	130 - 174 °
Voltage - Forward (Vf) (Typ)	1.7 V	1.7 V
Wavelength - Dominant [custom]	647 nm	647 nm
Wavelength - Peak	660 nm	660 nm

LED UNI-COLOR RED 660NM 2-PIN SMD T/R

Part	Mounting Type	Viewing Angle	Package / Case	Configuration	Height (Max) [Max] [z]	Size / Dimension [y]	Size / Dimension [x]	Lens Transparency	Wavelength - Dominant [custom]	Lens Color	Wavelength - Peak	Millicandela Rating	Current - Test	Lens Style	Supplier Device Package	Voltage - Forward (Vf) (Typ)	Color	Lens Size [x]	Lens Size [y]	Lens Size	Height (Max) [Max]
Stanley Electric Co BR1101F-TR	Surface Mount, Right Angle	130 °, 174 °	2-SMD, No Lead	Standard	1 mm	2 mm	3 mm	Clear	647 nm	Colorless	660 nm	12.4 mcd	20 mA	Rectangle with Domed Top	2-SMD	1.7 V	Red	2 mm	1 mm
Stanley Electric Co BR1101W-TR	Surface Mount	141 °, 152 °	1206 (3016 Metric)	Standard		1.5 mm	3 mm	Clear	647 nm	Colorless	660 nm	12.8 mcd	20 mA	Square with Flat Top	3216 Type	1.7 V	Red			1.5 mm	1.9 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Red 647nm LED Indication - Discrete 1.7V 2-SMD, No Lead
