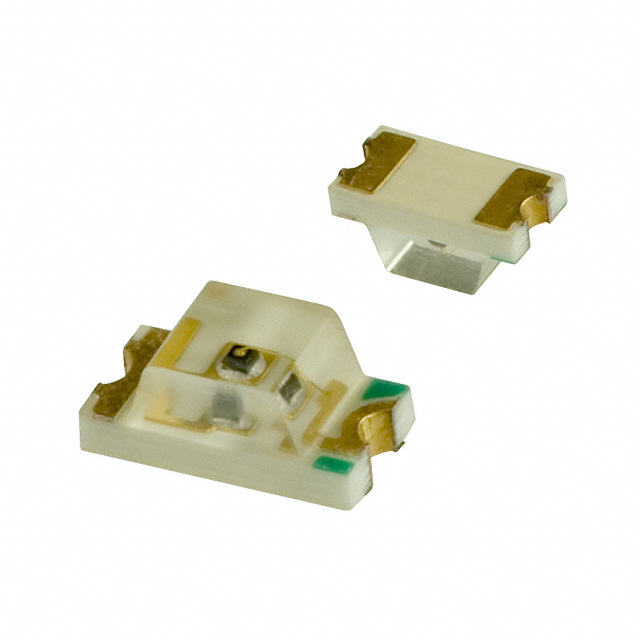

BR1101W-TR

Obsolete

Stanley Electric Co

LED RED CLEAR 3216 SMD

Search across all available documentation for this part.

Obsolete

Stanley Electric Co

LED RED CLEAR 3216 SMD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BR1101W-TR	BR1101 Series

Color	Red	Red
Configuration	Standard	Standard
Current - Test	20 mA	20 mA
Height (Max)	-	1 mm
Height (Max) [Max]	1.9 mm	1.9 mm
Lens Color	Colorless	Colorless
Lens Size	1.5 mm	1.5 mm
Lens Size	-	2 mm
Lens Size	-	1 mm
Lens Style	Square with Flat Top	Rectangle with Domed Top, Square with Flat Top
Lens Transparency	Clear	Clear
Millicandela Rating	12.8 mcd	12.4 - 12.8 mcd
Mounting Type	Surface Mount	Surface Mount, Right Angle, Surface Mount
Package / Case	1206 (3016 Metric)	2-SMD, No Lead, 1206 (3016 Metric)
Size / Dimension [x]	3 mm	3 mm
Size / Dimension [y]	1.5 mm	1.5 - 2 mm
Supplier Device Package	3216 Type	2-SMD, 3216 Type
Viewing Angle	152 °, 141 °	130 - 174 °
Voltage - Forward (Vf) (Typ)	1.7 V	1.7 V
Wavelength - Dominant [custom]	647 nm	647 nm
Wavelength - Peak	660 nm	660 nm

LED UNI-COLOR RED 660NM 2-PIN SMD T/R

Part	Mounting Type	Viewing Angle	Package / Case	Configuration	Height (Max) [Max] [z]	Size / Dimension [y]	Size / Dimension [x]	Lens Transparency	Wavelength - Dominant [custom]	Lens Color	Wavelength - Peak	Millicandela Rating	Current - Test	Lens Style	Supplier Device Package	Voltage - Forward (Vf) (Typ)	Color	Lens Size [x]	Lens Size [y]	Lens Size	Height (Max) [Max]
Stanley Electric Co BR1101F-TR	Surface Mount, Right Angle	130 °, 174 °	2-SMD, No Lead	Standard	1 mm	2 mm	3 mm	Clear	647 nm	Colorless	660 nm	12.4 mcd	20 mA	Rectangle with Domed Top	2-SMD	1.7 V	Red	2 mm	1 mm
Stanley Electric Co BR1101W-TR	Surface Mount	141 °, 152 °	1206 (3016 Metric)	Standard		1.5 mm	3 mm	Clear	647 nm	Colorless	660 nm	12.8 mcd	20 mA	Square with Flat Top	3216 Type	1.7 V	Red			1.5 mm	1.9 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Red 647nm LED Indication - Discrete 1.7V 1206 (3016 Metric)
