RD8127-64-0M8

Active

TE Connectivity Raychem Cable Protection

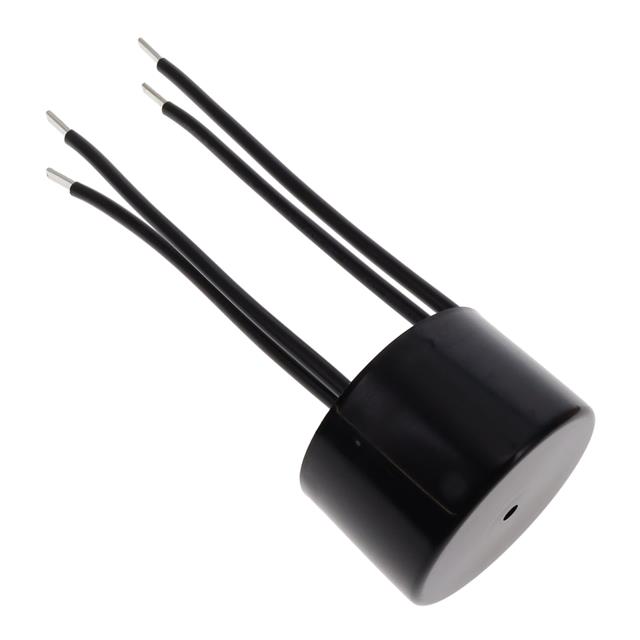

CMC 800UH 64A 2LN TH

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

CMC 800UH 64A 2LN TH

Technical Specifications

Parameters and characteristics for this part

Part	Package / Case	Package / Case	Filter Type	Current Rating (Max)	Voltage Rating - AC	Mounting Type	Voltage Rating - DC	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Number of Lines	Height (Max) [Max]	Height (Max)	Inductance @ Frequency	DC Resistance (DCR) (Max) [Max]	DC Resistance (DCR) (Max)	Current Rating (Max) [Max]
TE Connectivity Raychem Cable Protection RD8127-25-5M0	Horizontal	4 Lead	Power Line	25 A	600 V	Through Hole	850 V	-25 °C	110 °C	3.15 in	80 mm	80 mm	3.15 in	2	1.988 in	50.5 mm	5 mH	8.45 mOhm
TE Connectivity Raychem Cable Protection RD8127-16-12M0	Horizontal	4 Lead	Power Line	16 A	600 V	Through Hole	850 V	-25 °C	110 °C	3.15 in	80 mm	80 mm	3.15 in	2	1.988 in	50.5 mm	1 kHz 12 mH		20.05 mOhm
TE Connectivity Raychem Cable Protection RD8127-64-0M8	Horizontal	4 Lead	Power Line	64 A	600 V	Through Hole	850 V	-25 °C	110 °C	3.15 in	80 mm	80 mm	3.15 in	2	1.988 in	50.5 mm	800 µH		1.6 mOhm
TE Connectivity Raychem Cable Protection RD8127-50-1M0	Horizontal	4 Lead	Power Line	50 A	600 V	Through Hole	850 V	-25 °C	110 °C	3.15 in	80 mm	80 mm	3.15 in	2	1.988 in	50.5 mm	1 mH		2.5 mOhm
TE Connectivity Raychem Cable Protection RD8127-36-3M0	Horizontal	4 Lead	Power Line		600 V	Through Hole	850 V	-25 °C	110 °C	3.15 in	80 mm	80 mm	3.15 in	2	1.988 in	50.5 mm	3 mH		4.55 mOhm	36 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 49.44

General part information

800 µH @ 400 Hz 2 Line Common Mode Choke Through Hole 64A (Typ) DCR 1.6mOhm (Typ)
