Q-1T05E0003084i
ActiveAmphenol Custom Cable

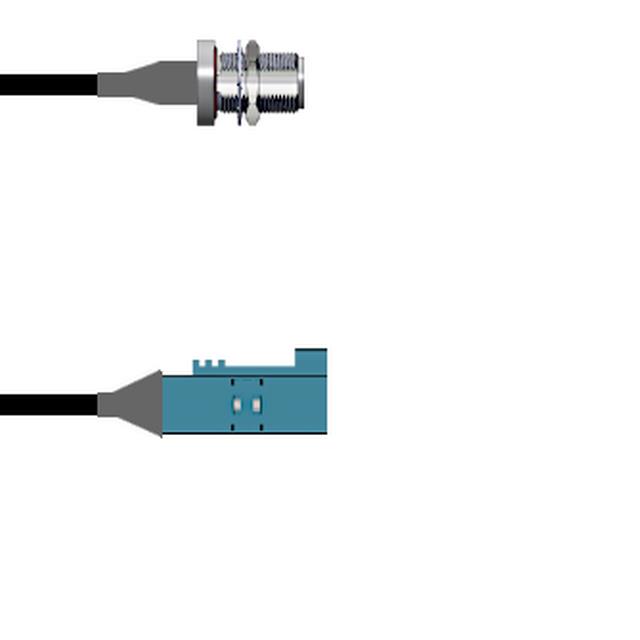

CBL ASSY NTYPE-FAKRA JCK-JCK 7'
Deep-Dive with AI
Search across all available documentation for this part.
Q-1T05E0003084i
ActiveAmphenol Custom Cable
CBL ASSY NTYPE-FAKRA JCK-JCK 7'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | Q-1T05E0003084i |
|---|---|
| 1st Connector | N-Type Jack |
| 1st Connector Mounting Feature | Bulkhead - Front Side Nut |
| 1st Connector Mounting Type | Panel Mount |
| 1st Contact Gender | Female |
| 2nd Connector | Fakra Jack |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Type | RG-174 |
| Color | Black |
| Features | Shielded |
| Frequency - Max [Max] | 3 GHz |
| Length | 84 in |
| Length | 2.1 m |
| Length | 7 ft |
| Overall Impedance | 50 Ohms |
| Style | N-Type to Fakra |
Q-1T05E0 Series
| Part | Color | 1st Contact Gender | 1st Connector Mounting Type | 2nd Connector | Frequency - Max [Max] | 1st Connector Mounting Feature | Features | Cable Type | Length | Length | Length | Style | 2nd Contact Gender | 1st Connector | 2nd Connector Mounting Type | Overall Impedance | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Custom Cable | Black | Female | Panel Mount | Fakra Jack | 3 GHz | Bulkhead - Front Side Nut | Shielded | RG-174 | 84 in | 2.1 m | 7 ft | N-Type to Fakra | Female | N-Type Jack | Free Hanging (In-Line) | 50 Ohms | ||
Amphenol Custom Cable | Copper | Female | Panel Mount | Fakra Jack | 3 GHz | Bulkhead - Front Side Nut | Shielded | RG-316 | 19.69 " | 50 cm | N-Type to Fakra | Female | N-Type Jack | Free Hanging (In-Line) | 50 Ohms | |||
Amphenol Custom Cable | Copper | Female | Panel Mount | Fakra Jack | 3 GHz | Bulkhead - Front Side Nut | Shielded | RG-316 | 24 " | 609.6 mm | N-Type to Fakra | Female | N-Type Jack | Free Hanging (In-Line) | 50 Ohms | |||
Amphenol Custom Cable | Copper | Female | Panel Mount | Fakra Jack | 3 GHz | Bulkhead - Front Side Nut | Shielded | RG-316 | 98.4 in | 2.5 m | 8.2 ' | N-Type to Fakra | Female | N-Type Jack | Free Hanging (In-Line) | 50 Ohms | ||
Amphenol Custom Cable | Black | Female | Panel Mount | Fakra Jack | 3 GHz | Bulkhead - Front Side Nut | Shielded | RG-174 | 29.53 " | 750 mm | N-Type to Fakra | Female | N-Type Jack | Free Hanging (In-Line) | 50 Ohms | |||
Amphenol Custom Cable | Copper | Female | Panel Mount | Fakra Jack | 3 GHz | Bulkhead - Front Side Nut | Shielded | RG-316 | 78.7 in | 2 m | 6.6 ft | N-Type to Fakra | Female | N-Type Jack | Free Hanging (In-Line) | 50 Ohms | ||
Amphenol Custom Cable | Black | Female | Panel Mount | Fakra Jack | 3 GHz | Bulkhead - Front Side Nut | Shielded | RG-174 | N-Type to Fakra | Female | N-Type Jack | Free Hanging (In-Line) | 50 Ohms | 457.2 mm | 457.2 mm | |||
Amphenol Custom Cable | Black | Female | Panel Mount | Fakra Jack | 3 GHz | Bulkhead - Front Side Nut | Shielded | RG-174 | 118.1 in | 3 m | 9.8 ' | N-Type to Fakra | Female | N-Type Jack | Free Hanging (In-Line) | 50 Ohms | ||
Amphenol Custom Cable | Copper | Female | Panel Mount | Fakra Jack | 3 GHz | Bulkhead - Front Side Nut | Shielded | RG-316 | 12 " | 304.8 mm | N-Type to Fakra | Female | N-Type Jack | Free Hanging (In-Line) | 50 Ohms | |||
Amphenol Custom Cable | Copper | Female | Panel Mount | Fakra Jack | 3 GHz | Bulkhead - Front Side Nut | Shielded | RG-316 | 29.53 " | 750 mm | N-Type to Fakra | Female | N-Type Jack | Free Hanging (In-Line) | 50 Ohms |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 64.20 | |
| 25 | $ 62.96 | |||
| 50 | $ 61.71 | |||
| 100 | $ 60.47 | |||
| 250 | $ 59.23 | |||
Description
General part information
Q-1T05E0 Series
Cable Assembly Coaxial N-Type to Fakra RG-174 84.0" (2.1m) 7.0'
Documents
Technical documentation and resources
No documents available
