Q-1T05E0005002M

Active

Amphenol Custom Cable

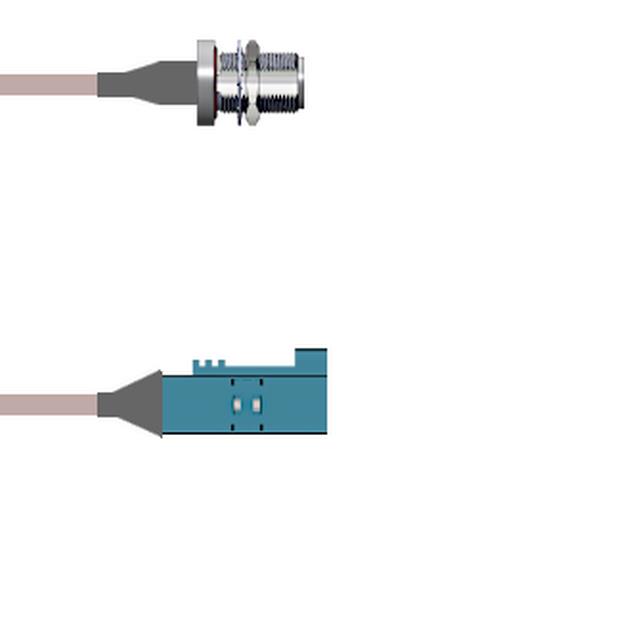

CBL ASSY NTYPE-FAKRA JK-JK 6.6'

Deep-Dive with AI

Search across all available documentation for this part.

Q-1T05E0005002M

Active

Amphenol Custom Cable

CBL ASSY NTYPE-FAKRA JK-JK 6.6'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-1T05E0005002M

1st Connector	N-Type Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	Fakra Jack
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	RG-316
Color	Copper
Features	Shielded
Frequency - Max [Max]	3 GHz
Length	6.6 ft
Length	78.7 in
Length	2 m
Overall Impedance	50 Ohms
Style	N-Type to Fakra

Q-1T05E0 Series

Part	Color	1st Contact Gender	1st Connector Mounting Type	2nd Connector	Frequency - Max [Max]	1st Connector Mounting Feature	Features	Cable Type	Length	Length	Length	Style	2nd Contact Gender	1st Connector	2nd Connector Mounting Type	Overall Impedance	Length [x]	Length [x]
Amphenol Custom Cable Q-1T05E0003084i	Black	Female	Panel Mount	Fakra Jack	3 GHz	Bulkhead - Front Side Nut	Shielded	RG-174	84 in	2.1 m	7 ft	N-Type to Fakra	Female	N-Type Jack	Free Hanging (In-Line)	50 Ohms
Amphenol Custom Cable Q-1T05E00050.5M	Copper	Female	Panel Mount	Fakra Jack	3 GHz	Bulkhead - Front Side Nut	Shielded	RG-316	19.69 "	50 cm		N-Type to Fakra	Female	N-Type Jack	Free Hanging (In-Line)	50 Ohms
Amphenol Custom Cable Q-1T05E0005024i	Copper	Female	Panel Mount	Fakra Jack	3 GHz	Bulkhead - Front Side Nut	Shielded	RG-316	24 "	609.6 mm		N-Type to Fakra	Female	N-Type Jack	Free Hanging (In-Line)	50 Ohms
Amphenol Custom Cable Q-1T05E00052.5M	Copper	Female	Panel Mount	Fakra Jack	3 GHz	Bulkhead - Front Side Nut	Shielded	RG-316	98.4 in	2.5 m	8.2 '	N-Type to Fakra	Female	N-Type Jack	Free Hanging (In-Line)	50 Ohms
Amphenol Custom Cable Q-1T05E0003.75M	Black	Female	Panel Mount	Fakra Jack	3 GHz	Bulkhead - Front Side Nut	Shielded	RG-174	29.53 "	750 mm		N-Type to Fakra	Female	N-Type Jack	Free Hanging (In-Line)	50 Ohms
Amphenol Custom Cable Q-1T05E0005002M	Copper	Female	Panel Mount	Fakra Jack	3 GHz	Bulkhead - Front Side Nut	Shielded	RG-316	78.7 in	2 m	6.6 ft	N-Type to Fakra	Female	N-Type Jack	Free Hanging (In-Line)	50 Ohms
Amphenol Custom Cable Q-1T05E0003018i	Black	Female	Panel Mount	Fakra Jack	3 GHz	Bulkhead - Front Side Nut	Shielded	RG-174				N-Type to Fakra	Female	N-Type Jack	Free Hanging (In-Line)	50 Ohms	457.2 mm	457.2 mm
Amphenol Custom Cable Q-1T05E0003003M	Black	Female	Panel Mount	Fakra Jack	3 GHz	Bulkhead - Front Side Nut	Shielded	RG-174	118.1 in	3 m	9.8 '	N-Type to Fakra	Female	N-Type Jack	Free Hanging (In-Line)	50 Ohms
Amphenol Custom Cable Q-1T05E0005012i	Copper	Female	Panel Mount	Fakra Jack	3 GHz	Bulkhead - Front Side Nut	Shielded	RG-316	12 "	304.8 mm		N-Type to Fakra	Female	N-Type Jack	Free Hanging (In-Line)	50 Ohms
Amphenol Custom Cable Q-1T05E0005.75M	Copper	Female	Panel Mount	Fakra Jack	3 GHz	Bulkhead - Front Side Nut	Shielded	RG-316	29.53 "	750 mm		N-Type to Fakra	Female	N-Type Jack	Free Hanging (In-Line)	50 Ohms

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 74.86
		25	$ 69.75
		50	$ 64.64
		100	$ 60.25
		250	$ 56.60

Description

General part information

Q-1T05E0 Series

Cable Assembly Coaxial N-Type to Fakra RG-316 78.7" (2.0m) 6.6'

Documents

Technical documentation and resources

No documents available
