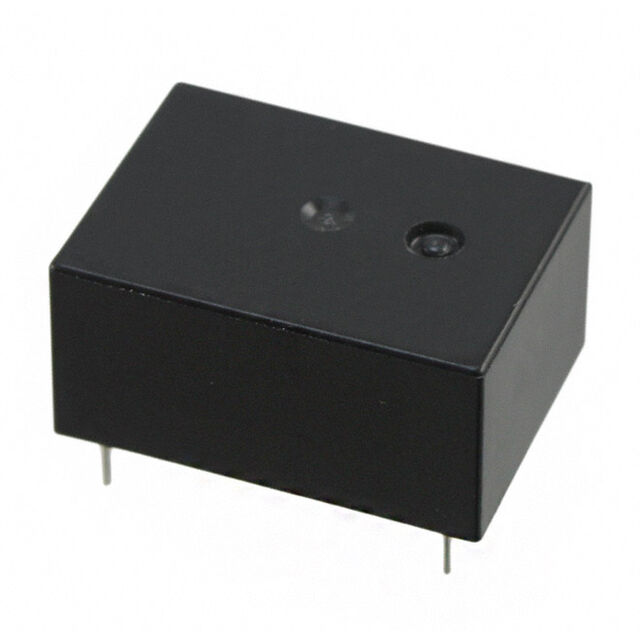

JVN1AF-4.5V-F
ActivePanasonic Electric Works
RELAY GEN PURPOSE SPST 16A 4.5V
Deep-Dive with AI
Search across all available documentation for this part.
JVN1AF-4.5V-F
ActivePanasonic Electric Works
RELAY GEN PURPOSE SPST 16A 4.5V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | JVN1AF-4.5V-F |
|---|---|
| Approval Agency | VDE, CSA, UR |
| Coil Current | 44.4 mA |
| Coil Resistance | 101 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 4.5 VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Contact Rating (Current) | 16 A |
| Load - Max Switching | 4432 VA, 480 W |
| Mounting Type | Through Hole |
| Must Operate Voltage | 3.38 VDC |
| Must Release Voltage | 0.23 VDC |
| Operate Time | 12 ms |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 5 ms |
| Seal Rating | Sealed - Flux Protection |
| Switching Voltage | 277 VAC, 30 VDC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.96 | |
| 10 | $ 5.59 | |||
| 25 | $ 4.97 | |||
| 50 | $ 4.72 | |||
| 100 | $ 4.47 | |||
| 300 | $ 3.98 | |||
| 500 | $ 3.73 | |||
| 1000 | $ 3.48 | |||
Description
General part information
JVN1A Series
General Purpose Relay SPST-NO (1 Form A) 4.5VDC Coil Through Hole
