JVN1AF-12V-F
ActivePanasonic Electric Works

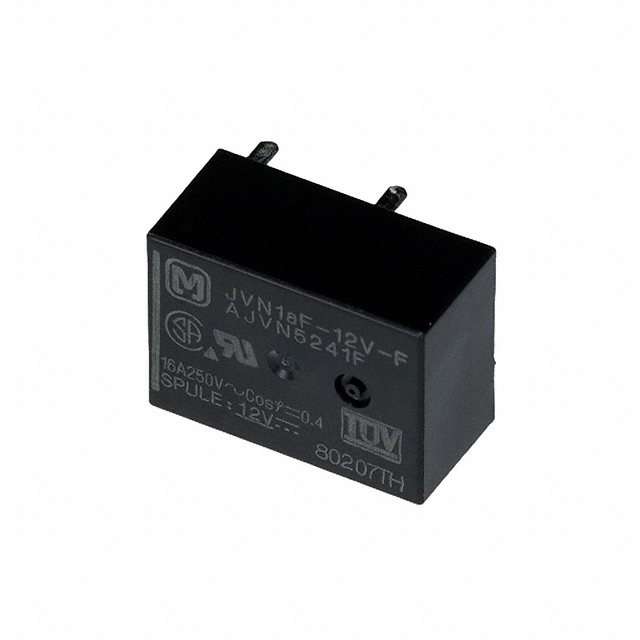

RELAY GEN PURPOSE SPST 16A 12V
Deep-Dive with AI
Search across all available documentation for this part.
JVN1AF-12V-F
ActivePanasonic Electric Works
RELAY GEN PURPOSE SPST 16A 12V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | JVN1AF-12V-F |
|---|---|
| Approval Agency | VDE, CSA, UR |
| Coil Current | 16.7 mA |
| Coil Resistance | 720 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 12 VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Contact Rating (Current) | 16 A |
| Load - Max Switching | 4432 VA, 480 W |
| Mounting Type | Through Hole |
| Must Operate Voltage | 9 VDC |
| Must Release Voltage | 0.6 VDC |
| Operate Time | 12 ms |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 5 ms |
| Seal Rating | Sealed - Flux Protection |
| Switching Voltage | 277 VAC, 30 VDC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 7.27 | |
| 10 | $ 6.82 | |||
| 25 | $ 6.06 | |||
| 50 | $ 5.76 | |||
| 100 | $ 5.45 | |||
| 300 | $ 4.85 | |||
| 500 | $ 4.54 | |||
| 1000 | $ 4.24 | |||
Description
General part information
JVN1A Series
General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Through Hole
