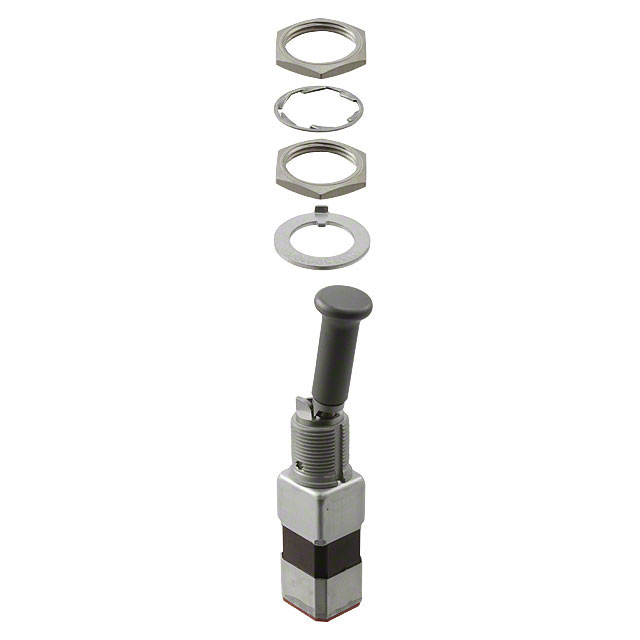

112TW1-3G

Active

Honeywell Sensing and Productivity Solutions

SWITCH TOGGLE DPDT 5A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMicro-Toggle Switch, Line Guide Datasheet

112TW1-3G

Active

Honeywell Sensing and Productivity Solutions

SWITCH TOGGLE DPDT 5A 125V

Deep-Dive with AI

DocumentsMicro-Toggle Switch, Line Guide Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	112TW1-3G	112TW1 Series

Actuator Length [x]	29.46 mm	17.27 - 29.46 mm
Actuator Type	Locking Lever	Standard Round, Locking Lever
Bushing Thread	15/32-32	15/32-32
Circuit	DPDT	DPDT, SP3T
Current Rating (Amps)	5 A	5 A
Features	-	Jumper needed to achieve triple throw
Illumination	Non-Illuminated	Non-Illuminated
Ingress Protection	Environment Sealed	Environment Sealed
Operating Temperature [Max]	71 °C	71 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Panel Cutout Dimensions [diameter]	12.4 mm	12.4 mm
Switch Function	On-On	Mom-Off-Mom, On-Mom, On-On, On-On-On, On-Off-On, On-On-Mom
Termination Style	IWTS	IWTS
Voltage Rating - AC	125 V	125 V
Voltage Rating - DC	28 V	28 V

112TW1 Series

SWITCH TOGGLE DPDT 5A 125V

Part	Switch Function	Current Rating (Amps)	Actuator Length [x]	Circuit	Ingress Protection	Voltage Rating - DC	Termination Style	Illumination	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Voltage Rating - AC	Bushing Thread	Panel Cutout Dimensions [diameter]	Features
Honeywell Sensing and Productivity Solutions 112TW1-7	Mom-Off-Mom	5 A	17.27 mm	DPDT	Environment Sealed	28 V	IWTS	Non-Illuminated	71 °C	-65 ░C	Standard Round	125 V	15/32-32	12.4 mm
Honeywell Sensing and Productivity Solutions 112TW1-8F	On-Mom	5 A	29.46 mm	DPDT	Environment Sealed	28 V	IWTS	Non-Illuminated	71 °C	-65 ░C	Locking Lever	125 V	15/32-32	12.4 mm
Honeywell Sensing and Productivity Solutions 112TW1-51	On-Mom	5 A	17.27 mm	DPDT	Environment Sealed	28 V	IWTS	Non-Illuminated	71 °C	-65 ░C	Standard Round	125 V	15/32-32	12.4 mm
Honeywell Sensing and Productivity Solutions 112TW1-3G	On-On	5 A	29.46 mm	DPDT	Environment Sealed	28 V	IWTS	Non-Illuminated	71 °C	-65 ░C	Locking Lever	125 V	15/32-32	12.4 mm
Honeywell Sensing and Productivity Solutions 112TW1-10A	On-On-On	5 A	29.46 mm	SP3T	Environment Sealed	28 V	IWTS	Non-Illuminated	71 °C	-65 ░C	Locking Lever	125 V	15/32-32	12.4 mm	Jumper needed to achieve triple throw
Honeywell Sensing and Productivity Solutions 112TW1-1E	On-Off-On	5 A	29.46 mm	DPDT	Environment Sealed	28 V	IWTS	Non-Illuminated	71 °C	-65 ░C	Locking Lever	125 V	15/32-32	12.4 mm
Honeywell Sensing and Productivity Solutions 112TW1-3	On-On	5 A	17.27 mm	DPDT	Environment Sealed	28 V	IWTS	Non-Illuminated	71 °C	-65 ░C	Standard Round	125 V	15/32-32	12.4 mm
Honeywell Sensing and Productivity Solutions 112TW1-3D	On-On	5 A	29.46 mm	DPDT	Environment Sealed	28 V	IWTS	Non-Illuminated	71 °C	-65 ░C	Locking Lever	125 V	15/32-32	12.4 mm
Honeywell Sensing and Productivity Solutions 112TW1-50	On-On-Mom	5 A	17.27 mm	DPDT	Environment Sealed	28 V	IWTS	Non-Illuminated	71 °C	-65 ░C	Standard Round	125 V	15/32-32	12.4 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 274.54
