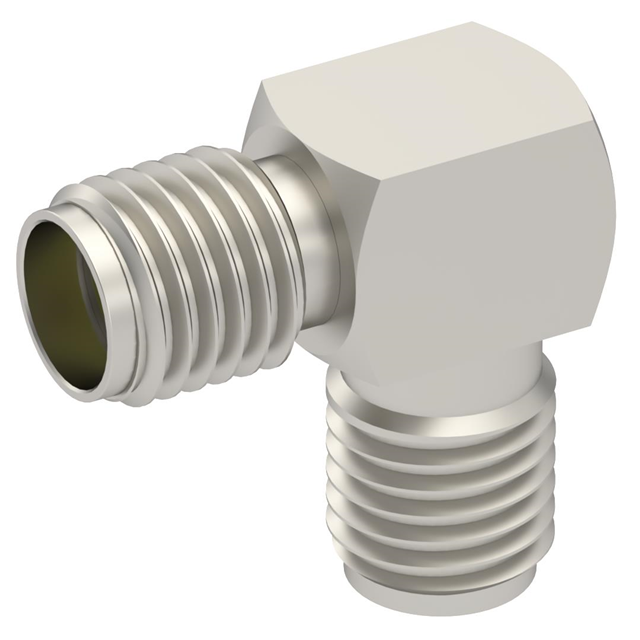

5919-9503-003

Active

Radiall USA, Inc.

SMA FF RA NA

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMA FF RA NA

Technical Specifications

Parameters and characteristics for this part

Specification	5919-9503-003

Adapter Series	SMA to SMA
Adapter Type	Jack to Jack
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Female to Female
Conversion Type	Same Series
Convert From (Adapter End)	Female Socket, SMA Jack
Convert To (Adapter End)	SMA Jack, Female Socket
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Style	Right Angle

Part	Mounting Type	Center Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Adapter Series	Dielectric Material	Frequency - Max [Max]	Conversion Type	Body Material	Style	Mating Cycles	Convert From (Adapter End)	Center Gender	Convert To (Adapter End)	Center Contact Plating	Impedance	Adapter Type
Radiall USA, Inc. 5919-9503-001	Free Hanging (In-Line) Right Angle	Beryllium Copper Brass	-65 ░C	165 °C	SMA to SMA	Polytetrafluoroethylene (PTFE)	18 GHz	Same Series	Stainless Steel	Right Angle	500	SMA Plug Male Pin	Male to Male	Male Pin SMA Plug	Gold	50 Ohms	Plug to Plug
Radiall USA, Inc. 5919-9503-000	Free Hanging (In-Line) Right Angle	Beryllium Copper Brass			SMA to SMA	Polytetrafluoroethylene (PTFE)	18 GHz	Same Series	Stainless Steel	Right Angle	500	SMA Plug Male Pin		Female Socket SMA Jack	Gold	50 Ohms	Plug to Jack
Radiall USA, Inc. 5919-9503-003	Free Hanging (In-Line) Right Angle	Beryllium Copper			SMA to SMA	Polytetrafluoroethylene (PTFE)	18 GHz	Same Series	Stainless Steel	Right Angle	500	Female Socket SMA Jack	Female to Female	Female Socket SMA Jack	Gold	50 Ohms	Jack to Jack

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	5	$ 72.18

General part information

Adapter Coaxial Connector SMA Jack, Female Socket To SMA Jack, Female Socket 50 Ohms

Technical documentation and resources

No documents available
