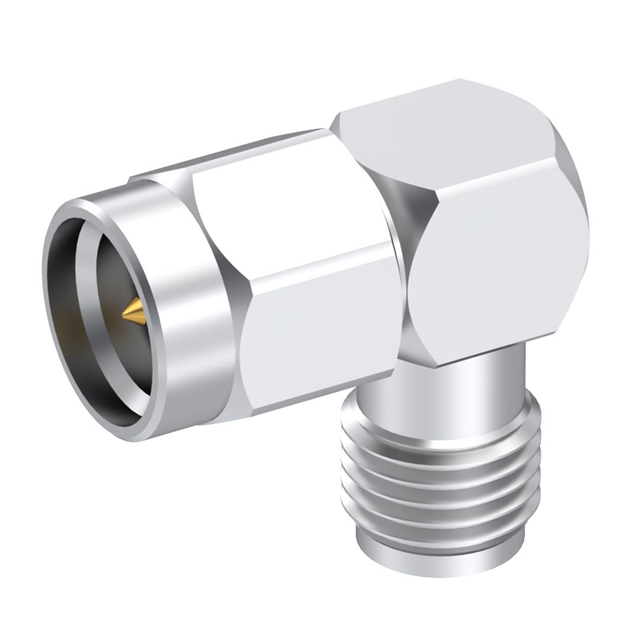

Specification	5919-9503-000

Adapter Series	SMA to SMA
Adapter Type	Plug to Jack
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper, Brass
Center Contact Plating	Gold
Center Gender	Male, Female
Conversion Type	Same Series
Convert From (Adapter End)	Male Pin, SMA Plug
Convert To (Adapter End) Gender	Female Socket
Convert To (Adapter End) Type	SMA Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded
Frequency - Max	18 GHz
Impedance	50 Ohm
Mating Cycles	500 cycles
Mounting Type	Right Angle, Free Hanging (In-Line)
Style	Right Angle

5919-9503 Series

Part	Body Material	Operating Temperature (Min)	Operating Temperature (Max)	Mating Cycles	Center Contact Material	Dielectric Material	Adapter Type	Convert From (Adapter End)	Adapter Series	Frequency - Max	Center Gender	Convert To (Adapter End) Type	Convert To (Adapter End) Gender	Center Contact Plating	Fastening Type	Impedance	Style	Conversion Type	Mounting Type
Radiall USA, Inc. 5919-9503-001	Stainless Steel	-65 °C	165 °C	500 cycles	Beryllium Copper Brass	Polytetrafluoroethylene (PTFE)	Plug to Plug	Male Pin SMA Plug	SMA to SMA	18 GHz	Male	SMA Plug	Male Pin	Gold	Threaded	50 Ohm	Right Angle	Same Series	Free Hanging (In-Line) Right Angle
Radiall USA, Inc. 5919-9503-000	Stainless Steel			500 cycles	Beryllium Copper Brass	Polytetrafluoroethylene (PTFE)	Plug to Jack	Male Pin SMA Plug	SMA to SMA	18 GHz	Female Male	SMA Jack	Female Socket	Gold	Threaded	50 Ohm	Right Angle	Same Series	Free Hanging (In-Line) Right Angle
Radiall USA, Inc. 5919-9503-003	Stainless Steel			500 cycles	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Jack to Jack	Female Socket SMA Jack	SMA to SMA	18 GHz	Female	SMA Jack	Female Socket	Gold	Threaded	50 Ohm	Right Angle	Same Series	Free Hanging (In-Line) Right Angle
