112-050-213R001

Active

NorComp Inc.

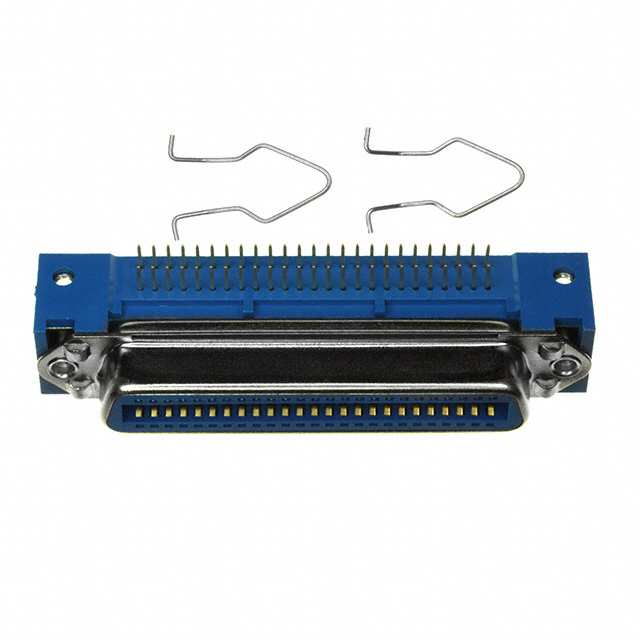

I/O CONNECTOR, 50 CONTACTS, RECEPTACLE, SCSI, THROUGH HOLE, 112 SERIES, PCB MOUNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN +2

112-050-213R001

Active

NorComp Inc.

I/O CONNECTOR, 50 CONTACTS, RECEPTACLE, SCSI, THROUGH HOLE, 112 SERIES, PCB MOUNT

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	112-050-213R001	112-050 Series

Connector Style	Outer Shroud Contacts	Center Strip Contacts, Outer Shroud Contacts
Connector Type	Receptacle	Plug, Receptacle
Contact Finish	Gold	Gold
Contact Finish Thickness	Flash	Flash
Features	Bail Lock	Bail Lock
Flange Feature	Housing/Shell (4-40)	Housing/Shell (4-40)
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Number of Positions	50	50
Number of Rows	2	2
Termination	Solder	Solder
Type	SCSI	SCSI

112-050 Series

112-050-113R491 ROHS COMPLIANT: YES

Part	Mounting Type	Connector Style	Number of Rows	Termination	Number of Positions	Flange Feature	Connector Type	Contact Finish	Contact Finish Thickness	Type	Features
NorComp Inc. 112-050-113R491	Through Hole, Right Angle	Center Strip Contacts	2	Solder	50	Housing/Shell (4-40)	Plug	Gold	Flash	SCSI
NorComp Inc. 112-050-213R491	Through Hole, Right Angle	Outer Shroud Contacts	2	Solder	50	Housing/Shell (4-40)	Receptacle	Gold	Flash	SCSI
NorComp Inc. 112-050-113R001	Through Hole, Right Angle	Center Strip Contacts	2	Solder	50	Housing/Shell (4-40)	Plug	Gold	Flash	SCSI
NorComp Inc. 112-050-213R001	Through Hole, Right Angle	Outer Shroud Contacts	2	Solder	50	Housing/Shell (4-40)	Receptacle	Gold	Flash	SCSI	Bail Lock

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 8.99
		20	$ 8.09
		40	$ 7.43
		80	$ 7.23
		240	$ 6.45
		440	$ 6.06
		960	$ 5.35
Newark	Each	100	$ 7.58
		250	$ 6.97
		500	$ 6.35

Description

General part information

112-050 Series

The 112 series 0.085-inch Ribbon Type Connector/Backshell Kit. It has nickel-plated steel shell with copper alloy contacts and a glass-filled thermoplastic insulator.
