112-050-113R001

Active

NorComp Inc.

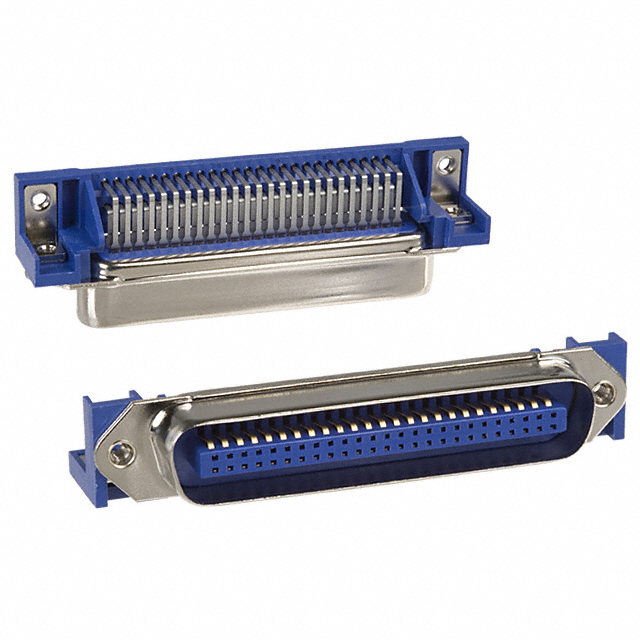

I/O CONNECTOR, 50 CONTACTS, PLUG, SCSI, THROUGH HOLE, 112 SERIES, PCB MOUNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 3D Product Image EN +1

112-050-113R001

Active

NorComp Inc.

I/O CONNECTOR, 50 CONTACTS, PLUG, SCSI, THROUGH HOLE, 112 SERIES, PCB MOUNT

Deep-Dive with AI

DocumentsDatasheet 3D Product Image EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	112-050-113R001	112-050 Series

Connector Style	Center Strip Contacts	Center Strip Contacts, Outer Shroud Contacts
Connector Type	Plug	Plug, Receptacle
Contact Finish	Gold	Gold
Contact Finish Thickness	Flash	Flash
Features	-	Bail Lock
Flange Feature	Housing/Shell (4-40)	Housing/Shell (4-40)
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Number of Positions	50	50
Number of Rows	2	2
Termination	Solder	Solder
Type	SCSI	SCSI

112-050 Series

112-050-113R491 ROHS COMPLIANT: YES

Part	Mounting Type	Connector Style	Number of Rows	Termination	Number of Positions	Flange Feature	Connector Type	Contact Finish	Contact Finish Thickness	Type	Features
NorComp Inc. 112-050-113R491	Through Hole, Right Angle	Center Strip Contacts	2	Solder	50	Housing/Shell (4-40)	Plug	Gold	Flash	SCSI
NorComp Inc. 112-050-213R491	Through Hole, Right Angle	Outer Shroud Contacts	2	Solder	50	Housing/Shell (4-40)	Receptacle	Gold	Flash	SCSI
NorComp Inc. 112-050-113R001	Through Hole, Right Angle	Center Strip Contacts	2	Solder	50	Housing/Shell (4-40)	Plug	Gold	Flash	SCSI
NorComp Inc. 112-050-213R001	Through Hole, Right Angle	Outer Shroud Contacts	2	Solder	50	Housing/Shell (4-40)	Receptacle	Gold	Flash	SCSI	Bail Lock

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 8.60
		20	$ 7.74
		40	$ 7.10
		60	$ 6.31
		80	$ 6.91
		100	$ 6.09
		240	$ 6.17
		260	$ 5.69
		440	$ 5.79
		500	$ 5.43
		960	$ 5.12
		1000	$ 5.17
Newark	Each	100	$ 5.83
		250	$ 5.46
		500	$ 5.08

Description

General part information

112-050 Series

The 112 series 0.085-inch Ribbon Type Connector/Backshell Kit. It has nickel-plated steel shell with copper alloy contacts and a glass-filled thermoplastic insulator.
