Technical Specifications
Parameters and characteristics for this part
| Specification | RB6132-25-0M5 |
|---|---|
| Current Rating (Max) [Max] | 25 A |
| DC Resistance (DCR) (Max) | 2.4 mOhm |
| Filter Type | Power Line |
| Height (Max) [Max] | 48 mm |
| Height (Max) [Max] | 1.89 in |
| Inductance @ Frequency | 470 µH |
| Mounting Type | Through Hole |
| Number of Lines | 3 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Horizontal |
| Package / Case | 4 Lead |
| Size / Dimension [x] | 2.315 " |
| Size / Dimension [x] | 58.8 mm |
| Size / Dimension [y] | 57.8 mm |
| Size / Dimension [y] | 2.276 " |
| Voltage Rating - AC | 600 V |
| Voltage Rating - DC | 1 kVDC |
| Voltage Rating - DC | 1 kV |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 28.44 | |
| 10 | $ 22.03 | |||
| 25 | $ 21.25 | |||
Description
General part information
Schaffner RB-Series Series

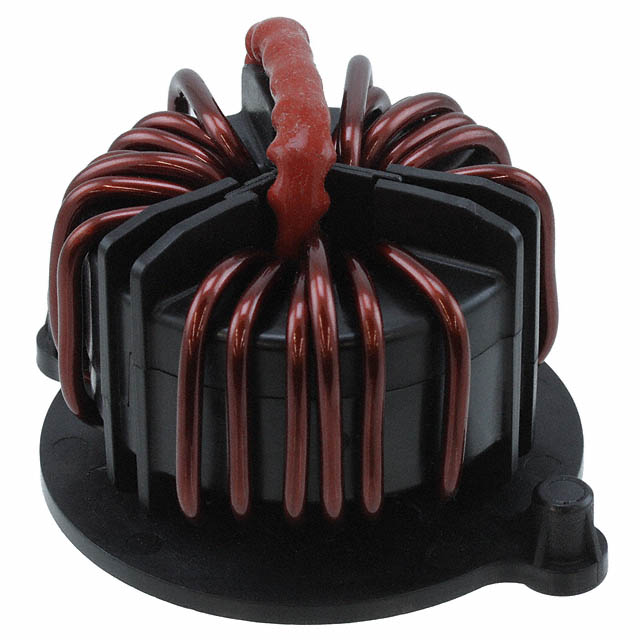

600 VDC, 25 A, PCB Terminal, PD2 Pollution Degree, IP00, Horizontal, UL 94V-0, Board Mount, Schaffner RB-Series, EMC Chokes
