RB6132-36-0M4

Active

TE Connectivity Raychem Cable Protection

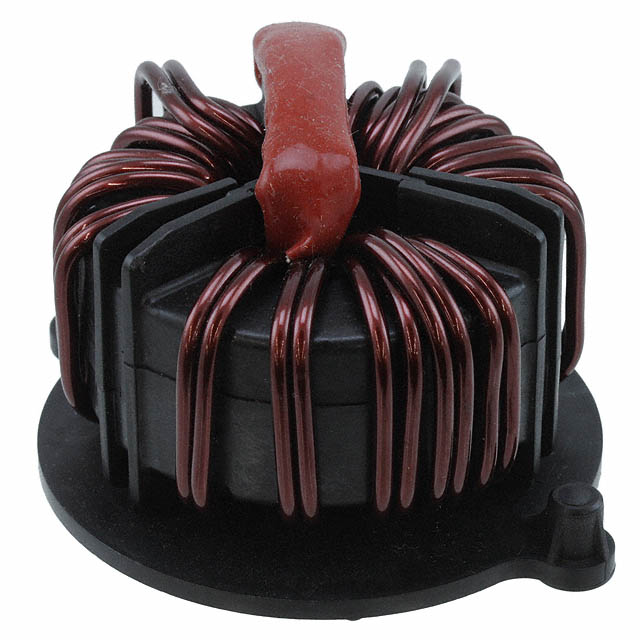

CMC 420UH 36A 3LN TH

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

CMC 420UH 36A 3LN TH

Technical Specifications

Parameters and characteristics for this part

Part	Number of Lines	Inductance @ Frequency	Voltage Rating - DC	Voltage Rating - DC	Voltage Rating - AC	Package / Case	Package / Case	Height (Max) [Max]	Height (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	DC Resistance (DCR) (Max)	Current Rating (Max) [Max]	Filter Type	Mounting Type
TE Connectivity Raychem Cable Protection RB6132-16-0M8	3	800 µH	1 kVDC	1 kV	600 V	Horizontal	4 Lead	48 mm	1.89 in	125 °C	-40 °C	2.315 "	58.8 mm	57.8 mm	2.276 "	4.6 mOhm	16 A	Power Line	Through Hole
TE Connectivity Raychem Cable Protection RB6132-36-0M4	3	400 Hz 420 µH	1 kVDC	1 kV	600 V	Horizontal	4 Lead	52 mm	2.047 in	125 °C	-40 °C	2.673 in	67.9 mm	66.9 mm	2.634 in	1.4 mOhm	36 A	Power Line	Through Hole
TE Connectivity Raychem Cable Protection RB6132-25-0M5	3	470 µH	1 kVDC	1 kV	600 V	Horizontal	4 Lead	48 mm	1.89 in	125 °C	-40 °C	2.315 "	58.8 mm	57.8 mm	2.276 "	2.4 mOhm	25 A	Power Line	Through Hole
TE Connectivity Raychem Cable Protection RB6132-50-0M2	3	180 µH	1 kVDC	1 kV	600 V	Horizontal	4 Lead	52 mm	2.047 in	125 °C	-40 °C	2.673 in	67.9 mm	66.9 mm	2.634 in	0.9 mOhm	50 A	Power Line	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

420 µH @ 400 Hz 3 Line Common Mode Choke Through Hole 36A DCR 1.4mOhm (Typ)
