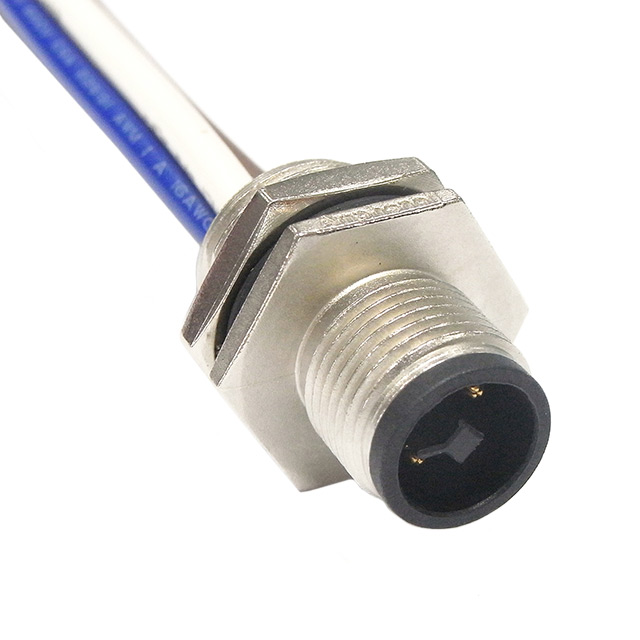

M12T-04PMMS-SH8B15

Active

Amphenol LTW

CONN PLUG MALE 4P WIR LEAD 0.49'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

M12T-04PMMS-SH8B15

Active

Amphenol LTW

CONN PLUG MALE 4P WIR LEAD 0.49'

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M12T-04PMMS-SH8B15

Color	Silver
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	12 A
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Mounting Feature	Bulkhead - Rear Side Nut
Number of Positions	4
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	T
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert	M12-4
Shielding	Shielded
Termination	Wire Leads
Voltage Rating	60 VDC

M12T-04PMMS Series

Part	1st Connector Gender	Color	Assembly Configuration	1st Connector Orientation	1st Connector Shell Size - Insert	1st Connector Type	1st Connector Number of Positions	Cable Type	Ingress Protection	2nd Connector Type	Shielding	Usage	1st Connector Number of Positions Loaded	1st Connector Mounting Type	Contact Material	Shell Size - Insert	Shell Material	Primary Material	Contact Finish - Mating	Orientation	Insert Material	Mounting Feature	Voltage Rating	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Current Rating (Amps)	Shell Finish	Number of Positions
Amphenol LTW M12T-04PMMS-SH8B30	Male Pins	Multiple	Standard	T	M12	Receptacle	4	Individual	IP68 - Dust Tight Waterproof; NMEA 2000	Wire Leads	Unshielded	Industrial Environments	All	Panel Mount
Amphenol LTW M12T-04PMMS-SF8B15		Silver							IP68 - Dust Tight Waterproof		Unshielded				Copper Alloy	M12-4	Zinc Alloy	Metal	Gold	T	Polyamide (PA) Nylon Glass Filled	Bulkhead - Front Side Nut	60 VDC	Male Pins Plug	85 °C	-40 °C	Wire Leads	12 A	Nickel	4
Amphenol LTW M12T-04PMMS-SF8B30	Male Pins	Multiple	Standard	T	M12	Receptacle	4	Individual	IP68 - Dust Tight Waterproof; NMEA 2000	Wire Leads	Unshielded	Industrial Environments	All	Panel Mount
Amphenol LTW M12T-04PMMS-SH8B15		Silver							IP68 - Dust Tight Waterproof		Shielded				Copper Alloy	M12-4	Zinc Alloy	Metal	Gold	T	Polyamide (PA) Nylon Glass Filled	Bulkhead - Rear Side Nut	60 VDC	Male Pins Plug	85 °C	-40 °C	Wire Leads	12 A	Nickel	4
Amphenol LTW M12T-04PMMS-SF8C15		Silver							IP68 - Dust Tight Waterproof		Shielded				Copper Alloy	M12-4	Zinc Alloy	Metal	Gold	T	Polyamide (PA) Nylon Glass Filled	Bulkhead - Front Side Nut	60 VDC	Male Pins Plug	85 °C	-40 °C	Wire Leads	12 A	Nickel	4

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 9.01
		10	$ 8.11
		25	$ 7.64
		50	$ 7.45
		100	$ 7.25
		250	$ 6.47
		500	$ 6.07
		1000	$ 5.37

Description

General part information

M12T-04PMMS Series

4 Position Circular Connector Plug, Male Pins Wire Leads
