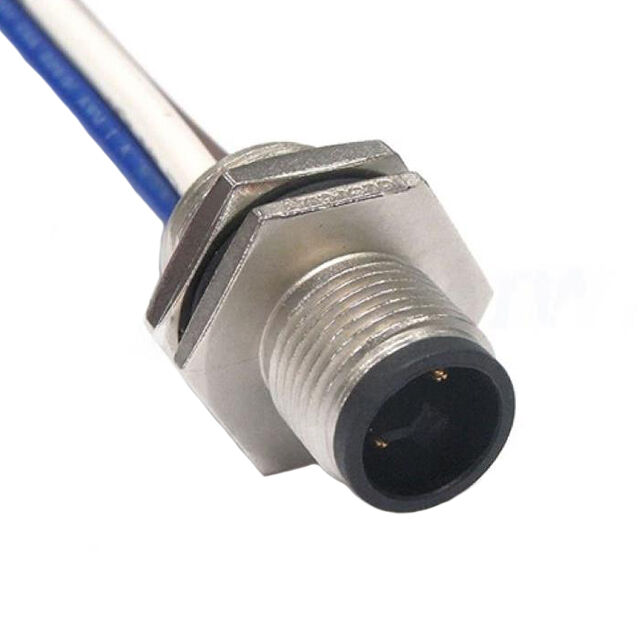

M12T-04PMMS-SH8B30

Active

Amphenol LTW

CIRC CBL 4POS RCPT TO WIRE 0.98'

Deep-Dive with AI

Search across all available documentation for this part.

M12T-04PMMS-SH8B30

Active

Amphenol LTW

CIRC CBL 4POS RCPT TO WIRE 0.98'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M12T-04PMMS-SH8B30

1st Connector Gender	Male Pins
1st Connector Mounting Type	Panel Mount
1st Connector Number of Positions	4
1st Connector Number of Positions Loaded	All
1st Connector Orientation	T
1st Connector Shell Size - Insert	M12
1st Connector Type	Receptacle
2nd Connector Type	Wire Leads
Assembly Configuration	Standard
Cable Type	Individual
Color	Multiple
Ingress Protection	IP68 - Dust Tight, Waterproof; NMEA 2000
Shielding	Unshielded
Usage	Industrial Environments

M12T-04PMMS Series

Part	1st Connector Gender	Color	Assembly Configuration	1st Connector Orientation	1st Connector Shell Size - Insert	1st Connector Type	1st Connector Number of Positions	Cable Type	Ingress Protection	2nd Connector Type	Shielding	Usage	1st Connector Number of Positions Loaded	1st Connector Mounting Type	Contact Material	Shell Size - Insert	Shell Material	Primary Material	Contact Finish - Mating	Orientation	Insert Material	Mounting Feature	Voltage Rating	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Current Rating (Amps)	Shell Finish	Number of Positions
Amphenol LTW M12T-04PMMS-SH8B30	Male Pins	Multiple	Standard	T	M12	Receptacle	4	Individual	IP68 - Dust Tight Waterproof; NMEA 2000	Wire Leads	Unshielded	Industrial Environments	All	Panel Mount
Amphenol LTW M12T-04PMMS-SF8B15		Silver							IP68 - Dust Tight Waterproof		Unshielded				Copper Alloy	M12-4	Zinc Alloy	Metal	Gold	T	Polyamide (PA) Nylon Glass Filled	Bulkhead - Front Side Nut	60 VDC	Male Pins Plug	85 °C	-40 °C	Wire Leads	12 A	Nickel	4
Amphenol LTW M12T-04PMMS-SF8B30	Male Pins	Multiple	Standard	T	M12	Receptacle	4	Individual	IP68 - Dust Tight Waterproof; NMEA 2000	Wire Leads	Unshielded	Industrial Environments	All	Panel Mount
Amphenol LTW M12T-04PMMS-SH8B15		Silver							IP68 - Dust Tight Waterproof		Shielded				Copper Alloy	M12-4	Zinc Alloy	Metal	Gold	T	Polyamide (PA) Nylon Glass Filled	Bulkhead - Rear Side Nut	60 VDC	Male Pins Plug	85 °C	-40 °C	Wire Leads	12 A	Nickel	4
Amphenol LTW M12T-04PMMS-SF8C15		Silver							IP68 - Dust Tight Waterproof		Shielded				Copper Alloy	M12-4	Zinc Alloy	Metal	Gold	T	Polyamide (PA) Nylon Glass Filled	Bulkhead - Front Side Nut	60 VDC	Male Pins Plug	85 °C	-40 °C	Wire Leads	12 A	Nickel	4

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 8.80

Description

General part information

M12T-04PMMS Series

Circular Cable Assembly Unshielded 0.98' (300.00mm)

Documents

Technical documentation and resources

No documents available
