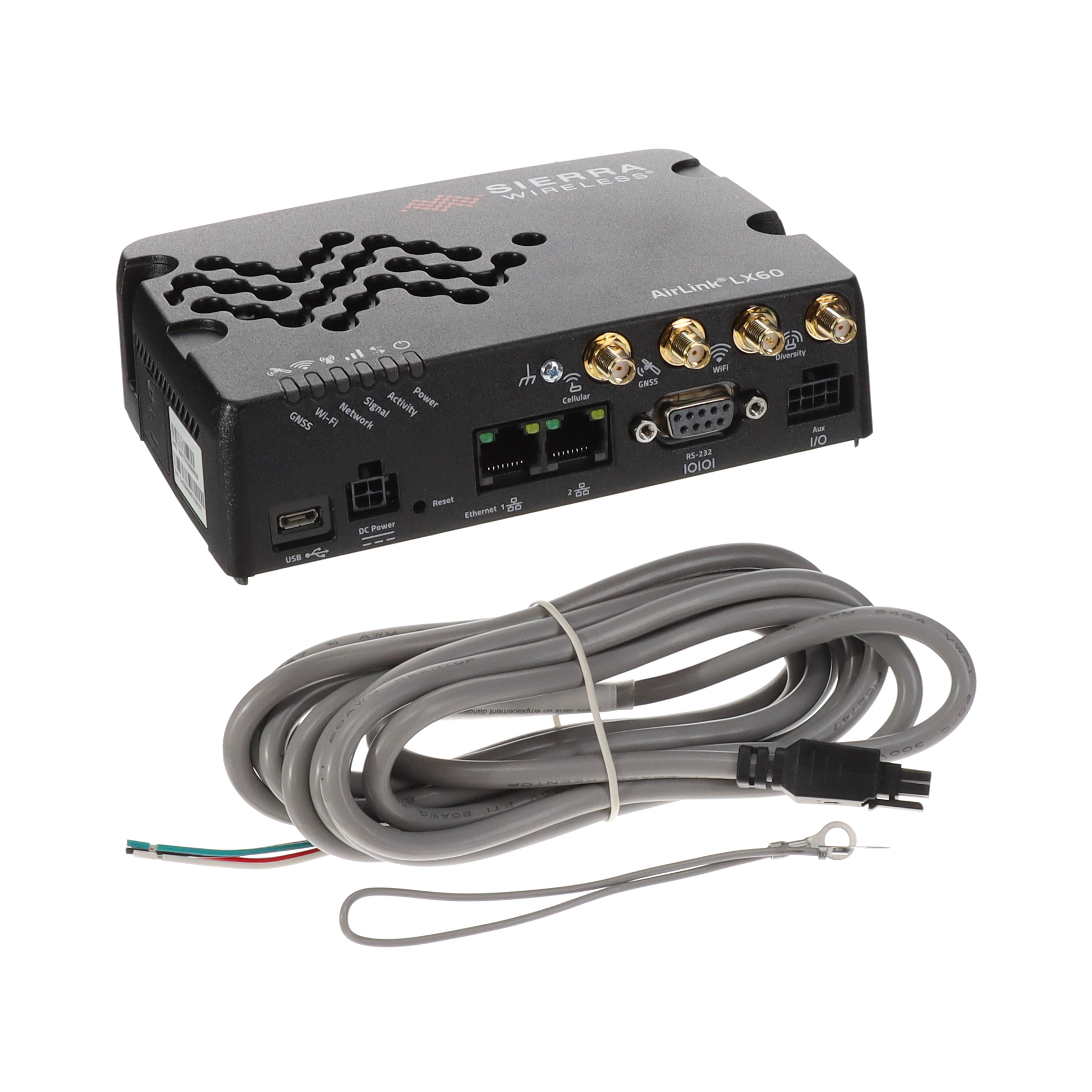

LX60_1104572
ActiveSierra Wireless AirLink
ROUTER WIFI/GNSS LTE NA DC
Deep-Dive with AI
Search across all available documentation for this part.
LX60_1104572
ActiveSierra Wireless AirLink
ROUTER WIFI/GNSS LTE NA DC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | LX60_1104572 | LX60 Series |
|---|---|---|
| Applications | General Purpose | General Purpose |
| Data Rate (Max) | 150 Mbps | 150 Mbps |
| Frequency | 700 MHz, 1900 MHz, 1.7 GHz, 850 MHz | 1.7 - 2600 MHz |
| Interface | RJ-45, RS-232, RS-485, Ethernet, USB | RJ-45, RS-232, RS-485, Ethernet, USB |
| Modulation or Protocol | LTE, HSPA+, Cellular, WCDMA | HSPA+, WCDMA, GSM, Cellular, LTE, GPRS |
| Sensitivity | -162 dBm | -162 dBm |
| Voltage - Supply [Max] | 36 V | 36 V |
| Voltage - Supply [Min] | 7 V | 7 V |
LX60 Series
ROUTER LTE M/NB-IOT GLOBAL DC
| Part | Applications | Interface | Frequency | Data Rate (Max) | Voltage - Supply [Max] | Voltage - Supply [Min] | Modulation or Protocol | Sensitivity |
|---|---|---|---|---|---|---|---|---|
Sierra Wireless AirLink LX60_1104030 | General Purpose | Ethernet, RJ-45, RS-232, RS-485, USB | 700 MHz, 800 MHz, 850 MHz, 900 MHz, 1800 MHz, 1900 MHz, 2100 MHz | 150 Mbps | 36 V | 7 V | Cellular, GPRS, GSM, HSPA+, LTE, WCDMA | -162 dBm |
Sierra Wireless AirLink LX60_1104046 | General Purpose | Ethernet, RJ-45, RS-232, RS-485, USB | 700 MHz, 800 MHz, 900 MHz, 1800 MHz, 2100 MHz, 2600 MHz | 150 Mbps | 36 V | 7 V | Cellular, GPRS, GSM, HSPA+, LTE, WCDMA | -162 dBm |
Sierra Wireless AirLink LX60_1104047 | General Purpose | Ethernet, RJ-45, RS-232, RS-485, USB | 700 MHz, 800 MHz, 900 MHz, 1800 MHz, 2100 MHz, 2600 MHz | 150 Mbps | 36 V | 7 V | Cellular, GPRS, GSM, HSPA+, LTE, WCDMA | -162 dBm |
Sierra Wireless AirLink LX60_1103829 | General Purpose | Ethernet, RJ-45, RS-232, RS-485, USB | 700 MHz, 800 MHz, 900 MHz, 1800 MHz, 1900 MHz, 2100 MHz, 2600 MHz | 150 Mbps | 36 V | 7 V | Cellular, GPRS, GSM, HSPA+, LTE, WCDMA | -162 dBm |
Sierra Wireless AirLink LX60_1103826 | General Purpose | Ethernet, RJ-45, RS-232, RS-485, USB | 700 MHz, 800 MHz, 900 MHz, 1800 MHz, 1900 MHz, 2100 MHz, 2600 MHz | 150 Mbps | 36 V | 7 V | Cellular, GPRS, GSM, HSPA+, LTE, WCDMA | -162 dBm |
Sierra Wireless AirLink LX60_1104572 | General Purpose | Ethernet, RJ-45, RS-232, RS-485, USB | 1.7 GHz, 700 MHz, 850 MHz, 1900 MHz | 150 Mbps | 36 V | 7 V | Cellular, HSPA+, LTE, WCDMA | -162 dBm |
Sierra Wireless AirLink LX60_1104048 | General Purpose | Ethernet, RJ-45, RS-232, RS-485, USB | 700 MHz, 850 MHz, 900 MHz, 1800 MHz, 2100 MHz, 2600 MHz | 150 Mbps | 36 V | 7 V | Cellular, HSPA+, LTE, WCDMA | -162 dBm |
Sierra Wireless AirLink LX60_1104580 | General Purpose | Ethernet, RJ-45, RS-232, RS-485, USB | 1.7 GHz, 700 MHz, 850 MHz, 1900 MHz | 150 Mbps | 36 V | 7 V | Cellular, HSPA+, LTE, WCDMA | -162 dBm |
Sierra Wireless AirLink LX60_1104493 | General Purpose | Ethernet, RJ-45, RS-232, RS-485, USB | 1.7 GHz, 700 MHz, 850 MHz, 1900 MHz | 150 Mbps | 36 V | 7 V | Cellular, HSPA+, LTE, WCDMA | -162 dBm |
Sierra Wireless AirLink LX60_1103828 | General Purpose | Ethernet, RJ-45, RS-232, RS-485, USB | 700 MHz, 800 MHz, 900 MHz, 1800 MHz, 1900 MHz, 2100 MHz, 2600 MHz | 150 Mbps | 36 V | 7 V | Cellular, GPRS, GSM, HSPA+, LTE, WCDMA | -162 dBm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 569.00 | |
Description
General part information
LX60 Series
4G/3G Cellular, HSPA+, LTE, WCDMA Router AT&T, Verizon Ethernet, RJ-45, RS-232, RS-485, USB
