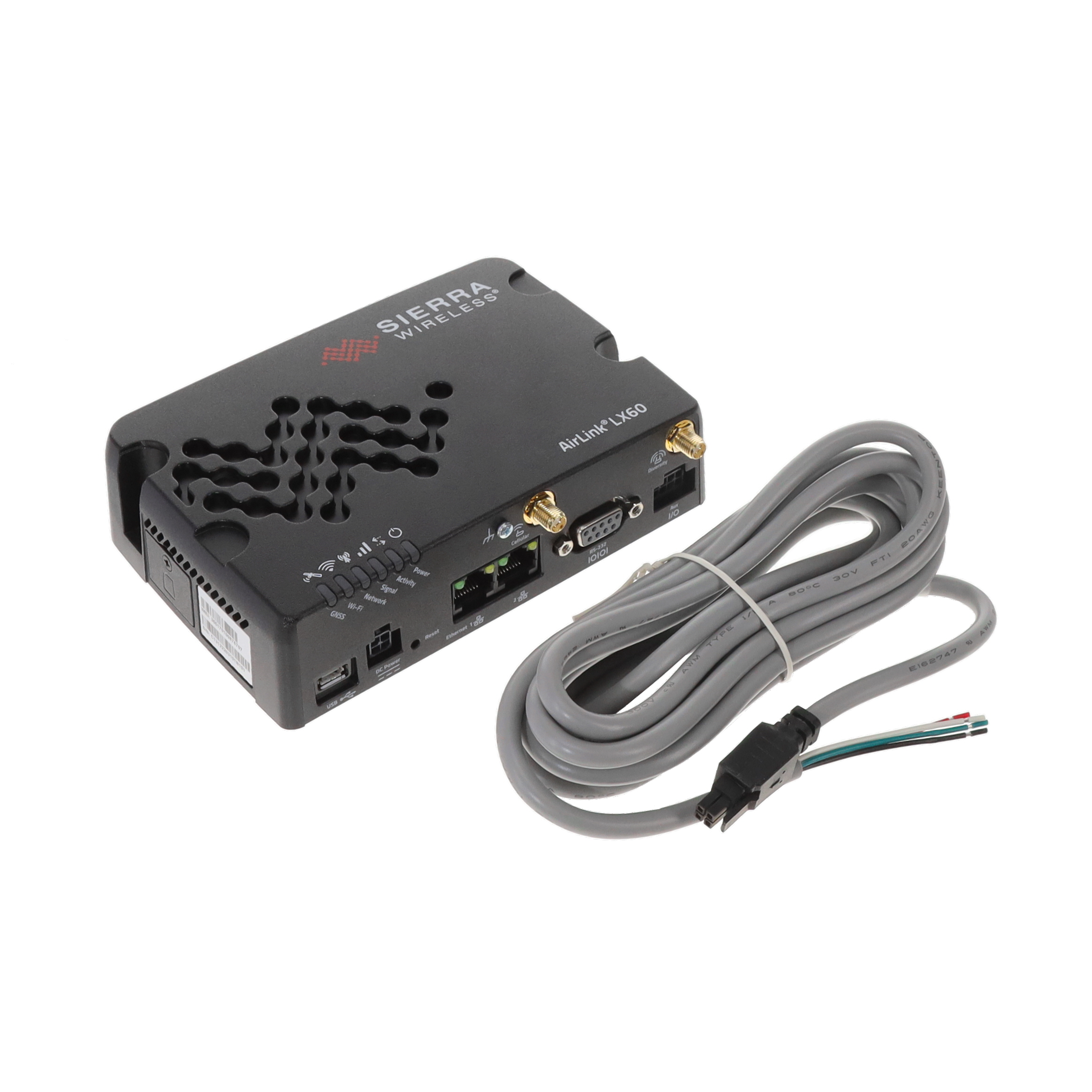

LX60_1104580

Active

Sierra Wireless AirLink

ROUTER LTE NA DC CABLE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Sierra Wireless 2020 AirLink® Networking Portfolio

LX60_1104580

Active

Sierra Wireless AirLink

ROUTER LTE NA DC CABLE

Deep-Dive with AI

DocumentsDatasheet Sierra Wireless 2020 AirLink® Networking Portfolio

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 479.00

Description

General part information

LX60 Series

4G/3G Cellular, HSPA+, LTE, WCDMA Router AT&T, Verizon Ethernet, RJ-45, RS-232, RS-485, USB

Documents

Technical documentation and resources

Datasheet

Sierra Wireless 2020 AirLink® Networking Portfolio

Related Document

Specification	LX60_1104580	LX60 Series

Applications	General Purpose	General Purpose
Data Rate (Max)	150 Mbps	150 Mbps
Frequency	700 MHz, 1900 MHz, 1.7 GHz, 850 MHz	1.7 - 2600 MHz
Interface	RJ-45, RS-232, RS-485, Ethernet, USB	RJ-45, RS-232, RS-485, Ethernet, USB
Modulation or Protocol	LTE, HSPA+, Cellular, WCDMA	HSPA+, WCDMA, GSM, Cellular, LTE, GPRS
Sensitivity	-162 dBm	-162 dBm
Voltage - Supply [Max]	36 V	36 V
Voltage - Supply [Min]	7 V	7 V

Part	Applications	Interface	Frequency	Data Rate (Max)	Voltage - Supply [Max]	Voltage - Supply [Min]	Modulation or Protocol	Sensitivity
Sierra Wireless AirLink LX60_1104030	General Purpose	Ethernet, RJ-45, RS-232, RS-485, USB	700 MHz, 800 MHz, 850 MHz, 900 MHz, 1800 MHz, 1900 MHz, 2100 MHz	150 Mbps	36 V	7 V	Cellular, GPRS, GSM, HSPA+, LTE, WCDMA	-162 dBm
Sierra Wireless AirLink LX60_1104046	General Purpose	Ethernet, RJ-45, RS-232, RS-485, USB	700 MHz, 800 MHz, 900 MHz, 1800 MHz, 2100 MHz, 2600 MHz	150 Mbps	36 V	7 V	Cellular, GPRS, GSM, HSPA+, LTE, WCDMA	-162 dBm
Sierra Wireless AirLink LX60_1104047	General Purpose	Ethernet, RJ-45, RS-232, RS-485, USB	700 MHz, 800 MHz, 900 MHz, 1800 MHz, 2100 MHz, 2600 MHz	150 Mbps	36 V	7 V	Cellular, GPRS, GSM, HSPA+, LTE, WCDMA	-162 dBm
Sierra Wireless AirLink LX60_1103829	General Purpose	Ethernet, RJ-45, RS-232, RS-485, USB	700 MHz, 800 MHz, 900 MHz, 1800 MHz, 1900 MHz, 2100 MHz, 2600 MHz	150 Mbps	36 V	7 V	Cellular, GPRS, GSM, HSPA+, LTE, WCDMA	-162 dBm
Sierra Wireless AirLink LX60_1103826	General Purpose	Ethernet, RJ-45, RS-232, RS-485, USB	700 MHz, 800 MHz, 900 MHz, 1800 MHz, 1900 MHz, 2100 MHz, 2600 MHz	150 Mbps	36 V	7 V	Cellular, GPRS, GSM, HSPA+, LTE, WCDMA	-162 dBm
Sierra Wireless AirLink LX60_1104572	General Purpose	Ethernet, RJ-45, RS-232, RS-485, USB	1.7 GHz, 700 MHz, 850 MHz, 1900 MHz	150 Mbps	36 V	7 V	Cellular, HSPA+, LTE, WCDMA	-162 dBm
Sierra Wireless AirLink LX60_1104048	General Purpose	Ethernet, RJ-45, RS-232, RS-485, USB	700 MHz, 850 MHz, 900 MHz, 1800 MHz, 2100 MHz, 2600 MHz	150 Mbps	36 V	7 V	Cellular, HSPA+, LTE, WCDMA	-162 dBm
Sierra Wireless AirLink LX60_1104580	General Purpose	Ethernet, RJ-45, RS-232, RS-485, USB	1.7 GHz, 700 MHz, 850 MHz, 1900 MHz	150 Mbps	36 V	7 V	Cellular, HSPA+, LTE, WCDMA	-162 dBm
Sierra Wireless AirLink LX60_1104493	General Purpose	Ethernet, RJ-45, RS-232, RS-485, USB	1.7 GHz, 700 MHz, 850 MHz, 1900 MHz	150 Mbps	36 V	7 V	Cellular, HSPA+, LTE, WCDMA	-162 dBm
Sierra Wireless AirLink LX60_1103828	General Purpose	Ethernet, RJ-45, RS-232, RS-485, USB	700 MHz, 800 MHz, 900 MHz, 1800 MHz, 1900 MHz, 2100 MHz, 2600 MHz	150 Mbps	36 V	7 V	Cellular, GPRS, GSM, HSPA+, LTE, WCDMA	-162 dBm

Part

Applications

Interface

Frequency

Data Rate (Max)

Voltage - Supply [Max]

Voltage - Supply [Min]

Modulation or Protocol

Sensitivity

Sierra Wireless AirLink

LX60_1104030

General Purpose

Ethernet, RJ-45, RS-232, RS-485, USB

700 MHz, 800 MHz, 850 MHz, 900 MHz, 1800 MHz, 1900 MHz, 2100 MHz

150 Mbps

36 V

7 V

Cellular, GPRS, GSM, HSPA+, LTE, WCDMA

-162 dBm

Sierra Wireless AirLink

LX60_1104046

General Purpose

Ethernet, RJ-45, RS-232, RS-485, USB

700 MHz, 800 MHz, 900 MHz, 1800 MHz, 2100 MHz, 2600 MHz

150 Mbps

36 V

7 V

Cellular, GPRS, GSM, HSPA+, LTE, WCDMA

-162 dBm

Sierra Wireless AirLink

LX60_1104047

General Purpose

Ethernet, RJ-45, RS-232, RS-485, USB

700 MHz, 800 MHz, 900 MHz, 1800 MHz, 2100 MHz, 2600 MHz

150 Mbps

36 V

7 V

Cellular, GPRS, GSM, HSPA+, LTE, WCDMA

-162 dBm

Sierra Wireless AirLink

LX60_1103829

General Purpose

Ethernet, RJ-45, RS-232, RS-485, USB

700 MHz, 800 MHz, 900 MHz, 1800 MHz, 1900 MHz, 2100 MHz, 2600 MHz

150 Mbps

36 V

7 V

Cellular, GPRS, GSM, HSPA+, LTE, WCDMA

-162 dBm

Sierra Wireless AirLink

LX60_1103826

General Purpose

Ethernet, RJ-45, RS-232, RS-485, USB

700 MHz, 800 MHz, 900 MHz, 1800 MHz, 1900 MHz, 2100 MHz, 2600 MHz

150 Mbps

36 V

7 V

Cellular, GPRS, GSM, HSPA+, LTE, WCDMA

-162 dBm

Sierra Wireless AirLink

LX60_1104572

General Purpose

Ethernet, RJ-45, RS-232, RS-485, USB

1.7 GHz, 700 MHz, 850 MHz, 1900 MHz

150 Mbps

36 V

7 V

Cellular, HSPA+, LTE, WCDMA

-162 dBm

Sierra Wireless AirLink

LX60_1104048

General Purpose

Ethernet, RJ-45, RS-232, RS-485, USB

700 MHz, 850 MHz, 900 MHz, 1800 MHz, 2100 MHz, 2600 MHz

150 Mbps

36 V

7 V

Cellular, HSPA+, LTE, WCDMA

-162 dBm

Sierra Wireless AirLink

LX60_1104580

General Purpose

Ethernet, RJ-45, RS-232, RS-485, USB

1.7 GHz, 700 MHz, 850 MHz, 1900 MHz

150 Mbps

36 V

7 V

Cellular, HSPA+, LTE, WCDMA

-162 dBm

Sierra Wireless AirLink

LX60_1104493

General Purpose

Ethernet, RJ-45, RS-232, RS-485, USB

1.7 GHz, 700 MHz, 850 MHz, 1900 MHz

150 Mbps

36 V

7 V

Cellular, HSPA+, LTE, WCDMA

-162 dBm

Sierra Wireless AirLink

LX60_1103828

General Purpose

Ethernet, RJ-45, RS-232, RS-485, USB

700 MHz, 800 MHz, 900 MHz, 1800 MHz, 1900 MHz, 2100 MHz, 2600 MHz

150 Mbps

36 V

7 V

Cellular, GPRS, GSM, HSPA+, LTE, WCDMA

-162 dBm
