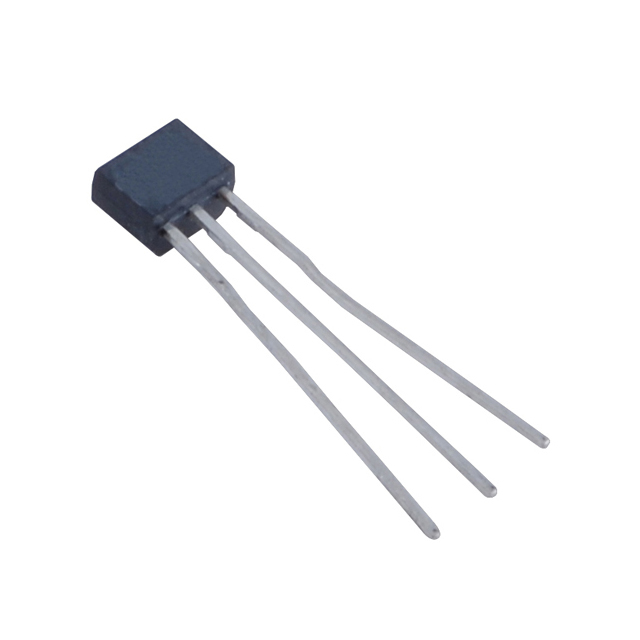

NTE2359

Active

NTE Electronics, Inc

TRANS PREBIAS NPN 50V TO92S

Search across all available documentation for this part.

Active

NTE Electronics, Inc

TRANS PREBIAS NPN 50V TO92S

Technical Specifications

Parameters and characteristics for this part

Specification	NTE2359

Current - Collector (Ic) (Max) [Max]	100 mA
Current - Collector Cutoff (Max) [Max]	500 nA
DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	50
Frequency - Transition	250 MHz
Mounting Type	Through Hole
Package / Case	TO-226-3, TO-92-3 Short Body
Resistor - Base (R1)	47 kOhms
Resistor - Emitter Base (R2)	47000 Ohms
Supplier Device Package	TO-92S
Transistor Type	NPN - Pre-Biased
Vce Saturation (Max) @ Ib, Ic	300 mV
Voltage - Collector Emitter Breakdown (Max) [Max]	50 V

Part	Package / Case	Current - Collector Cutoff (Max) [Max]	Transistor Type	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Voltage - Collector Emitter Breakdown (Max) [Max]	Resistor - Emitter Base (R2)	Mounting Type	Vce Saturation (Max) @ Ib, Ic	Resistor - Base (R1)	Current - Collector (Ic) (Max) [Max]	Supplier Device Package	Frequency - Transition
NTE Electronics, Inc NTE2356	TO-226-3 TO-92-3 Short Body	500 nA	PNP - Pre-Biased	50	50 V	10 kOhms	Through Hole	300 mV	10 kOhms	100 mA	TO-92S	200 MHz
NTE Electronics, Inc NTE2359	TO-226-3 TO-92-3 Short Body	500 nA	NPN - Pre-Biased	50	50 V	47000 Ohms	Through Hole	300 mV	47 kOhms	100 mA	TO-92S	250 MHz
NTE Electronics, Inc NTE2357	TO-226-3 TO-92-3 Short Body	500 nA	NPN - Pre-Biased	50	50 V	22 kOhms	Through Hole	300 mV	22 kOhms	100 mA	TO-92S	250 MHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pre-Biased Bipolar Transistor (BJT) NPN - Pre-Biased 50 V 100 mA 250 MHz 300 mW Through Hole TO-92S
