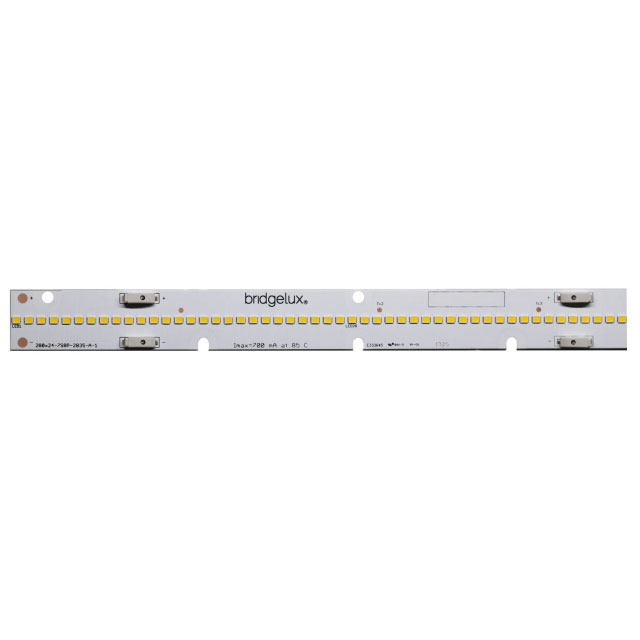

BXEB-L0560Z-30E4000-C-D3

Active

BRIDGELUX

EB GEN 3 HIGH OUTPUT LED MODULE, 560 MM, 3000K, 80 CRI

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BXEB-L0560Z-30E4000-C-D3

Active

BRIDGELUX

EB GEN 3 HIGH OUTPUT LED MODULE, 560 MM, 3000K, 80 CRI

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BXEB-L0560Z-30E4000-C-D3	BXEB-L0560 Series

CCT (K)	3000 K	3000 - 5700 K
Color	White, Warm	Cool, White, Neutral, Warm
Configuration	Linear Light Strip	Linear Light Strip
CRI (Color Rendering Index)	80	80 - 98
Current - Max [Max]	2.8 A	1.4 - 2.8 A
Current - Test	-	960 mA
Features	-	With Connector
Height [z]	6.1 mm	6.1 mm
Lens Type	Flat	Flat
Lumens/Watt @ Current - Test	185 lm/W	127 - 185 lm/W
Luminous Flux @ Current/Temperature	4960 lm	2390 - 4960 lm
Size / Dimension [x]	560 mm	560 mm
Size / Dimension [y]	24 mm	24 mm
Temperature - Test	-	50 °C
Type	LED Module	LED Module
Viewing Angle	120 °	120 °
Voltage - Forward (Vf) (Typ)	19.2 V	19.2 - 22.1 V

BXEB-L0560 Series

EB GEN 3 LED MODULE, 560 MM, 5000K, THRIVE

Part	Viewing Angle	CRI (Color Rendering Index)	Current - Test	Color	Height [z]	Type	Configuration	Voltage - Forward (Vf) (Typ)	Lens Type	Lumens/Watt @ Current - Test	Current - Max [Max]	Luminous Flux @ Current/Temperature	Size / Dimension [x]	Size / Dimension [y]	CCT (K)	Features	Temperature - Test
BRIDGELUX BXEB-L0560Z-50S2000-C-C3	120 °	98	960 mA	Cool, White	6.1 mm	LED Module	Linear Light Strip	20.3 V	Flat	138 lm/W	1.92 A	2690 lm	560 mm	24 mm
BRIDGELUX BXEB-L0560Z-40S2000-C-C3	120 °	98	960 mA	Neutral, White	6.1 mm	LED Module	Linear Light Strip	20.3 V	Flat	138 lm/W	1.92 A	2690 lm	560 mm	24 mm	4000 K
BRIDGELUX BXEB-L0560Z-57E2000-C-B3	120 °	80		Cool, White	6.1 mm	LED Module	Linear Light Strip	19.5 V	Flat	180 lm/W	1.4 A	2460 lm	560 mm	24 mm	5700 K	With Connector
BRIDGELUX BXEB-L0560Z-35E2000-C-A3		80		Warm, White	6.1 mm	LED Module	Linear Light Strip	22.1 V	Flat	156 lm/W	1.4 A	2410 lm	560 mm	24 mm	3500 K		50 °C
BRIDGELUX BXEB-L0560Z-57E2000-C-A3		80		Cool, White	6.1 mm	LED Module	Linear Light Strip	22.1 V	Flat	159 lm/W	1.4 A	2460 lm	560 mm	24 mm	5700 K		50 °C
BRIDGELUX BXEB-L0560Z-40E2000-C-B3	120 °	80		Neutral, White	6.1 mm	LED Module	Linear Light Strip	19.5 V	Flat	175 lm/W	1.4 A	2460 lm	560 mm	24 mm	4000 K	With Connector
BRIDGELUX BXEB-L0560Z-30S2000-C-C3	120 °	98	960 mA	Warm, White	6.1 mm	LED Module	Linear Light Strip	20.3 V	Flat	127 lm/W	1.92 A	2470 lm	560 mm	24 mm	3000 K
BRIDGELUX BXEB-L0560Z-40E2000-C-A3		80		Neutral, White	6.1 mm	LED Module	Linear Light Strip	22.1 V	Flat	159 lm/W	1.4 A	2460 lm	560 mm	24 mm	4000 K		50 °C
BRIDGELUX BXEB-L0560Z-30E4000-C-D3	120 °	80		Warm, White	6.1 mm	LED Module	Linear Light Strip	19.2 V	Flat	185 lm/W	2.8 A	4960 lm	560 mm	24 mm	3000 K
BRIDGELUX BXEB-L0560Z-30E2000-C-B3	120 °	80		Warm, White	6.1 mm	LED Module	Linear Light Strip	19.5 V	Flat	175 lm/W	1.4 A	2390 lm	560 mm	24 mm	3000 K	With Connector

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 11.46
		10	$ 8.31
		100	$ 6.87
		500	$ 6.01
		1000	$ 5.69

Description

General part information

BXEB-L0560 Series

LED Lighting COBs Engines Modules LED Module EB Series™ Gen 3 White, Warm Linear Light Strip
