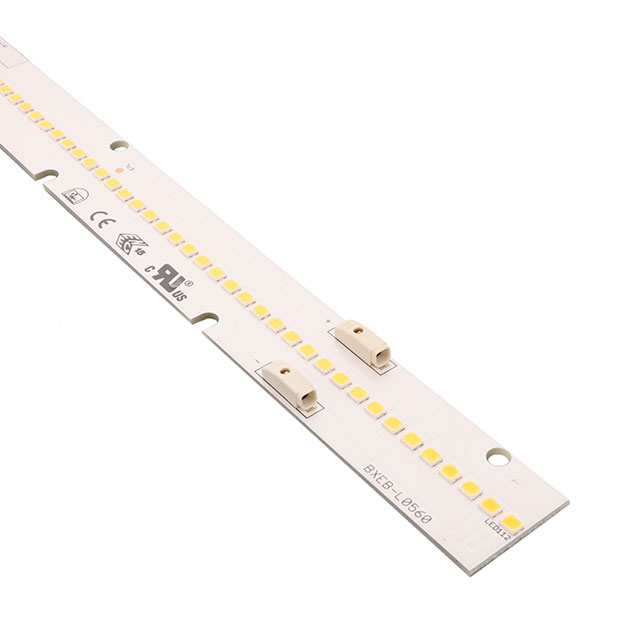

BXEB-L0560Z-30E2000-C-B3

Active

BRIDGELUX

EB GEN 2 LED MODULE, 560 MM, 3000K, 80 CRI

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BXEB-L0560Z-30E2000-C-B3

Active

BRIDGELUX

EB GEN 2 LED MODULE, 560 MM, 3000K, 80 CRI

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.82
		50	$ 4.64
		100	$ 4.30

Description

General part information

BXEB-L0560 Series

LED Lighting COBs Engines Modules LED Module EB Series™ Gen 2 White, Warm Linear Light Strip

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BXEB-L0560Z-30E2000-C-B3	BXEB-L0560 Series

CCT (K)	3000 K	3000 - 5700 K
Color	White, Warm	Cool, White, Neutral, Warm
Configuration	Linear Light Strip	Linear Light Strip
CRI (Color Rendering Index)	80	80 - 98
Current - Max [Max]	1.4 A	1.4 - 2.8 A
Current - Test	-	960 mA
Features	With Connector	With Connector
Height [z]	6.1 mm	6.1 mm
Lens Type	Flat	Flat
Lumens/Watt @ Current - Test	175 lm/W	127 - 185 lm/W
Luminous Flux @ Current/Temperature	2390 lm	2390 - 4960 lm
Size / Dimension [x]	560 mm	560 mm
Size / Dimension [y]	24 mm	24 mm
Temperature - Test	-	50 °C
Type	LED Module	LED Module
Viewing Angle	120 °	120 °
Voltage - Forward (Vf) (Typ)	19.5 V	19.2 - 22.1 V

BXEB-L0560 Series

EB GEN 3 LED MODULE, 560 MM, 5000K, THRIVE

Part	Viewing Angle	CRI (Color Rendering Index)	Current - Test	Color	Height [z]	Type	Configuration	Voltage - Forward (Vf) (Typ)	Lens Type	Lumens/Watt @ Current - Test	Current - Max [Max]	Luminous Flux @ Current/Temperature	Size / Dimension [x]	Size / Dimension [y]	CCT (K)	Features	Temperature - Test
BRIDGELUX BXEB-L0560Z-50S2000-C-C3	120 °	98	960 mA	Cool, White	6.1 mm	LED Module	Linear Light Strip	20.3 V	Flat	138 lm/W	1.92 A	2690 lm	560 mm	24 mm
BRIDGELUX BXEB-L0560Z-40S2000-C-C3	120 °	98	960 mA	Neutral, White	6.1 mm	LED Module	Linear Light Strip	20.3 V	Flat	138 lm/W	1.92 A	2690 lm	560 mm	24 mm	4000 K
BRIDGELUX BXEB-L0560Z-57E2000-C-B3	120 °	80		Cool, White	6.1 mm	LED Module	Linear Light Strip	19.5 V	Flat	180 lm/W	1.4 A	2460 lm	560 mm	24 mm	5700 K	With Connector
BRIDGELUX BXEB-L0560Z-35E2000-C-A3		80		Warm, White	6.1 mm	LED Module	Linear Light Strip	22.1 V	Flat	156 lm/W	1.4 A	2410 lm	560 mm	24 mm	3500 K		50 °C
BRIDGELUX BXEB-L0560Z-57E2000-C-A3		80		Cool, White	6.1 mm	LED Module	Linear Light Strip	22.1 V	Flat	159 lm/W	1.4 A	2460 lm	560 mm	24 mm	5700 K		50 °C
BRIDGELUX BXEB-L0560Z-40E2000-C-B3	120 °	80		Neutral, White	6.1 mm	LED Module	Linear Light Strip	19.5 V	Flat	175 lm/W	1.4 A	2460 lm	560 mm	24 mm	4000 K	With Connector
BRIDGELUX BXEB-L0560Z-30S2000-C-C3	120 °	98	960 mA	Warm, White	6.1 mm	LED Module	Linear Light Strip	20.3 V	Flat	127 lm/W	1.92 A	2470 lm	560 mm	24 mm	3000 K
BRIDGELUX BXEB-L0560Z-40E2000-C-A3		80		Neutral, White	6.1 mm	LED Module	Linear Light Strip	22.1 V	Flat	159 lm/W	1.4 A	2460 lm	560 mm	24 mm	4000 K		50 °C
BRIDGELUX BXEB-L0560Z-30E4000-C-D3	120 °	80		Warm, White	6.1 mm	LED Module	Linear Light Strip	19.2 V	Flat	185 lm/W	2.8 A	4960 lm	560 mm	24 mm	3000 K
BRIDGELUX BXEB-L0560Z-30E2000-C-B3	120 °	80		Warm, White	6.1 mm	LED Module	Linear Light Strip	19.5 V	Flat	175 lm/W	1.4 A	2390 lm	560 mm	24 mm	3000 K	With Connector
