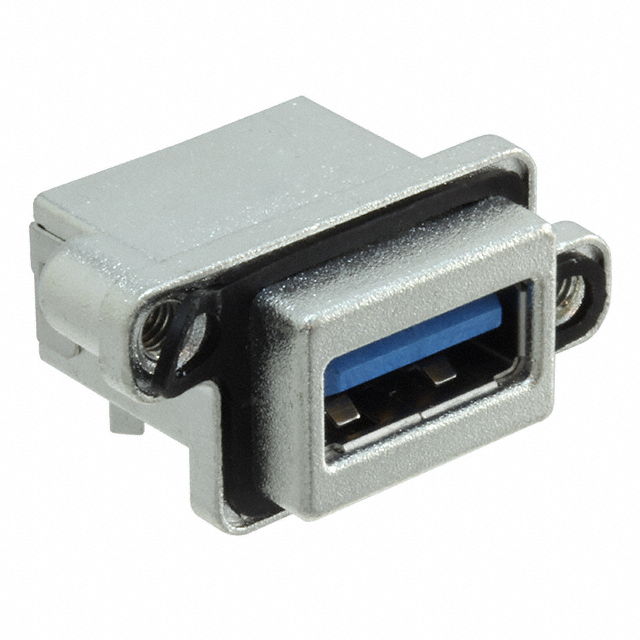

Specification	MUSBR-3593-M0

Connector Type	USB-A (USB TYPE-A)
Contact Finish	Gold
Current Rating Options	0.25A, 1.8A
Features	Board Guide
Gender	Receptacle
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Insulation Color	Blue
Material Flammability Rating	UL94 V-0
Mounting Feature	Vertical, Flange
Mounting Type	Panel Mount, Through Hole
Number of Contacts	9
Number of Ports	1
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Shell/Shielding Material	Steel, Stainless
Shielding	Shielded
Specifications	Superspeed (USB 3.0), USB 3.1 Gen 1, USB 3.2 Gen 1
Termination	Solder

MUSBR Series

Part	Connector Type	Number of Contacts	Gender	Mounting Type	Contact Finish	Number of Ports	Insulation Color	Termination	Features	Shell/Shielding Material	Specifications	Current Rating Options	Shielding	Operating Temperature (Min)	Operating Temperature (Max)	Mounting Feature	Ingress Protection Description	Ingress Protection IP Rating	Material Flammability Rating	Current Rating	Mating Cycles	Accessory Type	For Use With/Related Products	Convert To (Adapter End)	Convert From (Adapter End)
Amphenol ICC (Commercial Products) MUSBR-3593-M0	USB-A (USB TYPE-A)	9	Receptacle	Panel Mount Through Hole	Gold	1	Blue	Solder	Board Guide	Stainless Steel	Superspeed (USB 3.0) USB 3.1 Gen 1 USB 3.2 Gen 1	0.25A 1.8A	Shielded	-40 °C	105 °C	Flange Vertical	Dust Tight Waterproof	IP67	UL94 V-0
Amphenol ICC (Commercial Products) MUSBRA111M0	USB-A (USB TYPE-A)	4	Receptacle	Panel Mount Right Angle Through Hole	Gold	1	Black	Solder	Board Guide	Stainless Steel	USB 2.0		Shielded	-40 °C	105 °C	Flange Horizontal	Dust Tight Waterproof	IP67	UL94 V-0	1.5 A	1500 cycles
Amphenol ICC (Commercial Products) MUSBR-AHD2-241SK																						Boot Hooded	MRJ MRJR MUSB-A and MUSBR-A
Amphenol ICC (Commercial Products) MUSBR-4593-M0	Stacked USB-A (USB TYPE-A)	18	Receptacle	Panel Mount Through Hole	Gold	2	Blue	Solder	Board Guide	Stainless Steel	Superspeed (USB 3.0) USB 3.1 Gen 1 USB 3.2 Gen 1	0.25A 1.8A	Shielded	-40 °C	105 °C	Flange Vertical	Dust Tight Waterproof	IP67	UL94 V-0
Amphenol ICC (Commercial Products) MUSBRA311M5				Board Mounted																				Receptacle USB-A (USB TYPE-A)	Receptacle USB-A (USB TYPE-A)
Amphenol ICC (Commercial Products) MUSBRA511M0	USB-A (USB TYPE-A)	4	Receptacle	Panel Mount Through Hole	Gold	1	Black	Solder	Board Lock	Stainless Steel	USB 2.0		Shielded	-40 °C	105 °C	Flange Vertical	Dust Tight Waterproof	IP67	UL94 V-0	1.5 A	1500 cycles
Amphenol ICC (Commercial Products) MUSBRM1C130	USB-C (USB TYPE-C)	24	Receptacle	Panel Mount Right Angle Through Hole	Gold	1	Black	Solder		Stainless Steel		0.25A 1.25A 5A	Shielded	-40 °C	105 °C	Flange Horizontal	Dust Tight Waterproof	IP67	UL94 V-0
Amphenol ICC (Commercial Products) MUSBR-A511-302	USB-A (USB TYPE-A)	4	Receptacle	Panel Mount Through Hole	Gold	1	Black	Solder	Board Lock	Stainless Steel	USB 2.0		Shielded	-40 °C	105 °C	Flange Vertical	Dust Tight Waterproof	IP67	UL94 V-0	1.5 A	1500 cycles
Amphenol ICC (Commercial Products) MUSBRA111R5	USB-A (USB TYPE-A)	4	Receptacle	Panel Mount Right Angle Through Hole	Gold	1	Black	Solder	Board Guide Cover	Stainless Steel	USB 2.0		Shielded	-40 °C	105 °C	Flange Horizontal	Dust Tight Waterproof	IP67	UL94 V-0	1.5 A	1500 cycles
Amphenol ICC (Commercial Products) MUSBRA111M5	USB-A (USB TYPE-A)	4	Receptacle	Panel Mount Right Angle Through Hole	Gold	1	Black	Solder	Board Guide Cover	Stainless Steel	USB 2.0		Shielded	-40 °C	105 °C	Flange Horizontal	Dust Tight Waterproof	IP67	UL94 V-0	1.5 A	1500 cycles
