MUSBRM1C130
ActiveAmphenol ICC (Commercial Products)

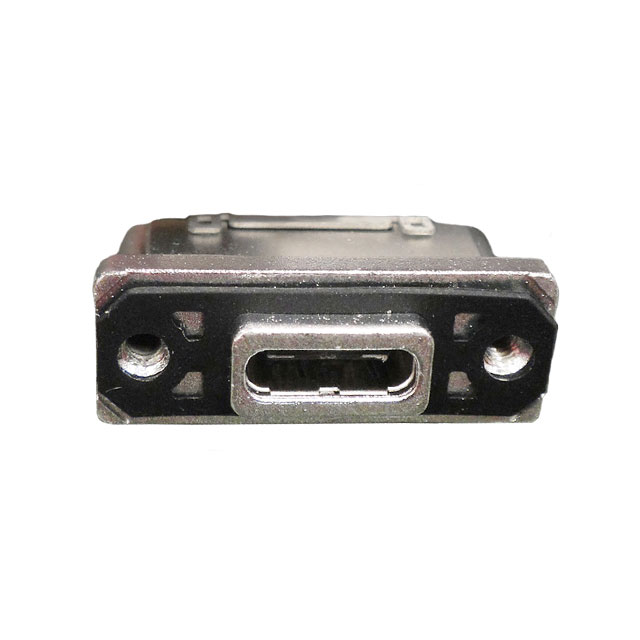

CONN RCPT TYPEC 24POS PCB R/A
Deep-Dive with AI
Search across all available documentation for this part.
MUSBRM1C130
ActiveAmphenol ICC (Commercial Products)
CONN RCPT TYPEC 24POS PCB R/A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MUSBRM1C130 |
|---|---|
| Connector Type | USB-C (USB TYPE-C) |
| Contact Finish | Gold |
| Current Rating (Amps) | 0.25 A, 1.25 A, 5 A |
| Gender | Receptacle |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insulation Color | Black |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Flange, Horizontal |
| Mounting Type | Through Hole, Right Angle, Panel Mount |
| Number of Contacts | 24 |
| Number of Ports | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Shell/Shielding Material | Stainless, Steel |
| Shielding | Shielded |
| Termination | Solder |
MUSBR Series
| Part | Mounting Feature | Number of Contacts | Termination | Shell/Shielding Material | Ingress Protection | Gender | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Color | Current Rating (Amps) | Features | Contact Finish | Number of Ports | Shielding | Mounting Type | Connector Type | Material Flammability Rating | Mating Cycles | Specifications | Number of Contacts [custom] | Convert From (Adapter End) | Convert To (Adapter End) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol ICC (Commercial Products) | Flange Vertical | 9 | Solder | Stainless Steel | IP67 - Dust Tight Waterproof | Receptacle | -40 °C | 105 ░C | Blue | 0.25 A 1.8 A | Board Guide | Gold | 1 | Shielded | Panel Mount Through Hole | USB-A (USB TYPE-A) | UL94 V-0 | |||||
Amphenol ICC (Commercial Products) | Flange Horizontal | Solder | Stainless Steel | IP67 - Dust Tight Waterproof | Receptacle | -40 °C | 105 ░C | Black | 1.5 A | Board Guide | Gold | 1 | Shielded | Panel Mount Right Angle Through Hole | USB-A (USB TYPE-A) | UL94 V-0 | 1500 | USB 2.0 | 4 | |||
Amphenol ICC (Commercial Products) | Flange Vertical | Solder | Stainless Steel | IP67 - Dust Tight Waterproof | Receptacle | -40 °C | 105 ░C | Blue | 0.25 A 1.8 A | Board Guide | Gold | 2 | Shielded | Panel Mount Through Hole | Stacked USB-A (USB TYPE-A) | UL94 V-0 | ||||||
Amphenol ICC (Commercial Products) | Board Mounted | USB-A (USB TYPE-A) Receptacle | Receptacle USB-A (USB TYPE-A) | |||||||||||||||||||
Amphenol ICC (Commercial Products) | Flange Vertical | Solder | Stainless Steel | IP67 - Dust Tight Waterproof | Receptacle | -40 °C | 105 ░C | Black | 1.5 A | Gold | 1 | Shielded | Panel Mount Through Hole | USB-A (USB TYPE-A) | UL94 V-0 | 1500 | USB 2.0 | 4 | ||||
Amphenol ICC (Commercial Products) | Flange Horizontal | 24 | Solder | Stainless Steel | IP67 - Dust Tight Waterproof | Receptacle | -40 °C | 105 ░C | Black | 0.25 A 1.25 A 5 A | Gold | 1 | Shielded | Panel Mount Right Angle Through Hole | USB-C (USB TYPE-C) | UL94 V-0 | ||||||
Amphenol ICC (Commercial Products) | Flange Vertical | Solder | Stainless Steel | IP67 - Dust Tight Waterproof | Receptacle | -40 °C | 105 ░C | Black | 1.5 A | Gold | 1 | Shielded | Panel Mount Through Hole | USB-A (USB TYPE-A) | UL94 V-0 | 1500 | USB 2.0 | 4 | ||||
Amphenol ICC (Commercial Products) | Flange Horizontal | Solder | Stainless Steel | IP67 - Dust Tight Waterproof | Receptacle | -40 °C | 105 ░C | Black | 1.5 A | Board Guide Cover | Gold | 1 | Shielded | Panel Mount Right Angle Through Hole | USB-A (USB TYPE-A) | UL94 V-0 | 1500 | USB 2.0 | 4 | |||
Amphenol ICC (Commercial Products) | Flange Horizontal | Solder | Stainless Steel | IP67 - Dust Tight Waterproof | Receptacle | -40 °C | 105 ░C | Black | 1.5 A | Board Guide Cover | Gold | 1 | Shielded | Panel Mount Right Angle Through Hole | USB-A (USB TYPE-A) | UL94 V-0 | 1500 | USB 2.0 | 4 | |||
Amphenol ICC (Commercial Products) | Flange Vertical | 24 | Solder | Stainless Steel | IP67 - Dust Tight Waterproof | Receptacle | -40 °C | 105 ░C | Black | 0.25 A 1.25 A 5 A | Gold | 1 | Shielded | Panel Mount Through Hole | USB-C (USB TYPE-C) | UL94 V-0 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 20.87 | |
| 10 | $ 16.07 | |||
| 25 | $ 14.55 | |||
| 40 | $ 13.84 | |||
| 80 | $ 12.87 | |||
| 230 | $ 11.57 | |||
| 440 | $ 10.87 | |||
| 945 | $ 10.17 | |||
Description
General part information
MUSBR Series
USB-C (USB TYPE-C) Receptacle Connector 24 Position Panel Mount, Through Hole, Right Angle
