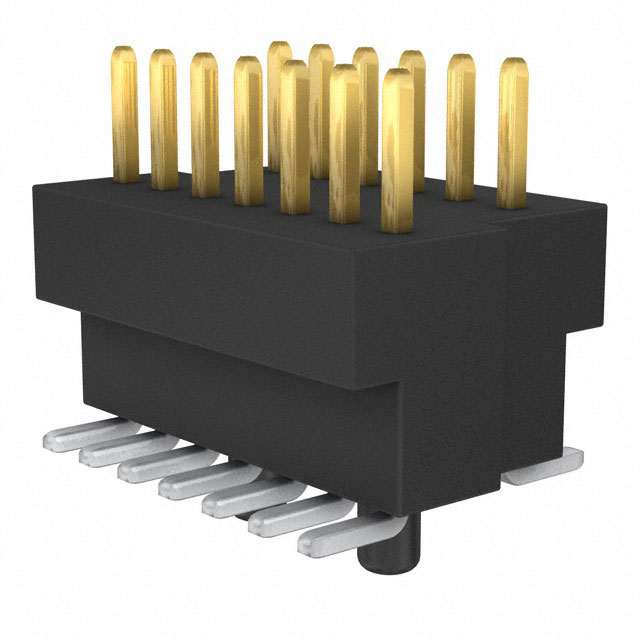

BKT-113-04-F-V-A

Active

Samtec Inc.

CONN HEADER SMD 13POS 1MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BKT-113-04-F-V-A

Active

Samtec Inc.

CONN HEADER SMD 13POS 1MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BKT-113-04-F-V-A

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	3 µin
Contact Finish Thickness - Mating	0.076 µm
Contact Length - Mating	0.065 in
Contact Length - Mating	1.65 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	2.8 A per Contact
Fastening Type	Push-Pull
Features	Board Guide
Insulation Color	Black
Insulation Height	3.47 mm
Insulation Height	0.137 in
Insulation Material	Liquid Crystal Polymer (LCP)
Mated Stacking Heights	6 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	13
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.039 in
Pitch - Mating	1 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Termination	Solder

BKT-113 Series

Part	Features	Contact Shape	Contact Length - Mating	Contact Length - Mating	Number of Rows	Insulation Material	Mounting Type	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Contact Material	Termination	Number of Positions	Insulation Height [z]	Insulation Height [z]	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Contact Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Current Rating (Amps)	Mated Stacking Heights	Contact Finish - Mating	Shrouding	Fastening Type	Insulation Color	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Mated Stacking Heights [z]
Samtec Inc. BKT-113-03-L-V-A	Board Guide	Square	0.065 in	1.65 mm	2	Liquid Crystal Polymer (LCP)	Surface Mount	Tin	10 çin	0.25 çm	Header	Phosphor Bronze	Solder	13	0.098 in	2.5 mm	-55 °C	125 °C	UL94 V-0	Male Pin	2.54 mm	0.1 in	2.8 A per Contact	5 mm	Gold	Unshrouded	Push-Pull	Black	All	0.039 in	1 mm
Samtec Inc. BKT-113-02-F-V		Square	0.065 in	1.65 mm	2	Liquid Crystal Polymer (LCP)	Surface Mount	Tin	3 µin	0.076 µm	Header	Phosphor Bronze	Solder	13			-55 °C	125 °C	UL94 V-0	Male Pin	2.54 mm	0.1 in	2.8 A per Contact		Gold	Unshrouded	Push-Pull	Black	All	0.039 in	1 mm	1.63 mm	0.064 in
Samtec Inc. BKT-113-02-L-V-A	Board Guide	Square	0.065 in	1.65 mm	2	Liquid Crystal Polymer (LCP)	Surface Mount	Tin	10 çin	0.25 çm	Header	Phosphor Bronze	Solder	13			-55 °C	125 °C	UL94 V-0	Male Pin	2.54 mm	0.1 in	2.8 A per Contact		Gold	Unshrouded	Push-Pull	Black	All	0.039 in	1 mm	1.63 mm	0.064 in
Samtec Inc. BKT-113-01-L-V-A-TR	Board Guide	Square	0.065 in	1.65 mm	2	Liquid Crystal Polymer (LCP)	Surface Mount	Tin	10 çin	0.25 çm	Header	Phosphor Bronze	Solder	13			-55 °C	125 °C	UL94 V-0	Male Pin	2.54 mm	0.1 in	2.8 A per Contact		Gold	Unshrouded	Push-Pull	Black	All	0.039 in	1 mm	1.63 mm	0.064 in	4.14 mm
Samtec Inc. BKT-113-01-L-V-P	Pick and Place	Square	0.065 in	1.65 mm	2	Liquid Crystal Polymer (LCP)	Surface Mount	Tin	10 çin	0.25 çm	Header	Phosphor Bronze	Solder	13			-55 °C	125 °C	UL94 V-0	Male Pin	2.54 mm	0.1 in	2.8 A per Contact		Gold	Unshrouded	Push-Pull	Black	All	0.039 in	1 mm	1.63 mm	0.064 in	4.14 mm
Samtec Inc. BKT-113-04-L-V		Square	0.065 in	1.65 mm	2	Liquid Crystal Polymer (LCP)	Surface Mount	Tin	10 çin	0.25 çm	Header	Phosphor Bronze	Solder	13			-55 °C	125 °C	UL94 V-0	Male Pin	2.54 mm	0.1 in	2.8 A per Contact	6 mm	Gold	Unshrouded	Push-Pull	Black	All	0.039 in	1 mm	3.47 mm	0.137 in
Samtec Inc. BKT-113-01-F-V-P-TR	Pick and Place	Square	0.065 in	1.65 mm	2	Liquid Crystal Polymer (LCP)	Surface Mount	Tin	3 µin	0.076 µm	Header	Phosphor Bronze	Solder	13			-55 °C	125 °C	UL94 V-0	Male Pin	2.54 mm	0.1 in	2.8 A per Contact		Gold	Unshrouded	Push-Pull	Black	All	0.039 in	1 mm	1.63 mm	0.064 in	4.14 mm
Samtec Inc. BKT-113-01-L-V		Square	0.065 in	1.65 mm	2	Liquid Crystal Polymer (LCP)	Surface Mount	Tin	10 çin	0.25 çm	Header	Phosphor Bronze	Solder	13			-55 °C	125 °C	UL94 V-0	Male Pin	2.54 mm	0.1 in	2.8 A per Contact		Gold	Unshrouded	Push-Pull	Black	All	0.039 in	1 mm	1.63 mm	0.064 in	4.14 mm
Samtec Inc. BKT-113-02-L-V-P	Pick and Place	Square	0.065 in	1.65 mm	2	Liquid Crystal Polymer (LCP)	Surface Mount	Tin	10 çin	0.25 çm	Header	Phosphor Bronze	Solder	13			-55 °C	125 °C	UL94 V-0	Male Pin	2.54 mm	0.1 in	2.8 A per Contact		Gold	Unshrouded	Push-Pull	Black	All	0.039 in	1 mm	1.63 mm	0.064 in
Samtec Inc. BKT-113-04-F-V-A	Board Guide	Square	0.065 in	1.65 mm	2	Liquid Crystal Polymer (LCP)	Surface Mount	Tin	3 µin	0.076 µm	Header	Phosphor Bronze	Solder	13			-55 °C	125 °C	UL94 V-0	Male Pin	2.54 mm	0.1 in	2.8 A per Contact	6 mm	Gold	Unshrouded	Push-Pull	Black	All	0.039 in	1 mm	3.47 mm	0.137 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.73

Description

General part information

BKT-113 Series

Connector Header Surface Mount 13 position 0.039" (1.00mm)
