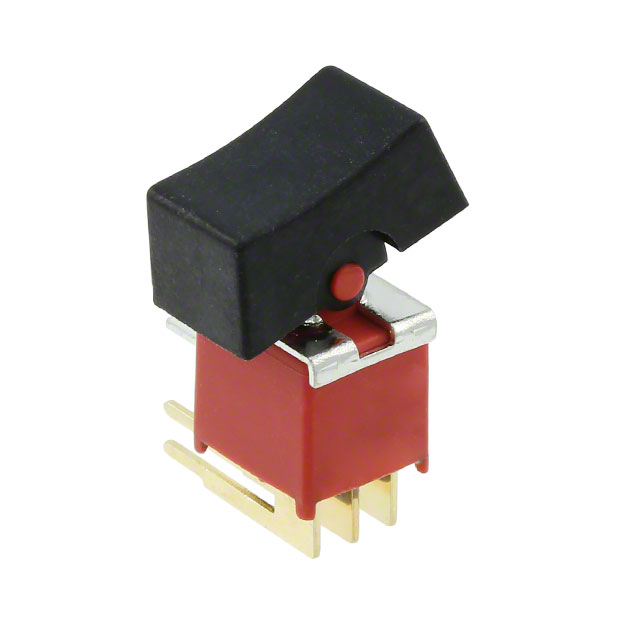

RAD1R102M6QES

Obsolete

TE Connectivity Raychem Cable Protection

SWITCH ROCKER DPDT 3A 120V

Search across all available documentation for this part.

Obsolete

TE Connectivity Raychem Cable Protection

SWITCH ROCKER DPDT 3A 120V

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Color - Actuator/Cap	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Circuit	Actuator Type	Ingress Protection	Termination Style	Mechanical Life	Switch Function	Features	Actuator Marking	Voltage Rating - AC	Voltage Rating - DC
TE Connectivity Raychem Cable Protection RAD1R102VS2QES	Through Hole	Black	3 A	-30 ░C	85 °C	DPDT	Concave (Curved)	IP67 - Dust Tight Waterproof	PC Pin	30000 Steps	On-On	Process Sealed	No Marking	120 V	28 V
TE Connectivity Raychem Cable Protection RAD1R102M7RES	Right Angle Through Hole Vertical	Black	0.4 VA	-30 ░C	85 °C	DPDT	Concave (Curved)	IP67 - Dust Tight Waterproof	PC Pin	30000 Steps	On-On	Process Sealed	No Marking	20 V	20 V
TE Connectivity Raychem Cable Protection RAD1R102M6QES	Through Hole Right Angle	Black	3 A	-30 ░C	85 °C	DPDT	Concave (Curved)	IP67 - Dust Tight Waterproof	PC Pin	30000 Steps	On-On	Process Sealed	No Marking	120 V	28 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Rocker Switch DPDT 3A (AC/DC) 120 V Through Hole, Right Angle
