RAD1R102M7RES

Obsolete

TE Connectivity Raychem Cable Protection

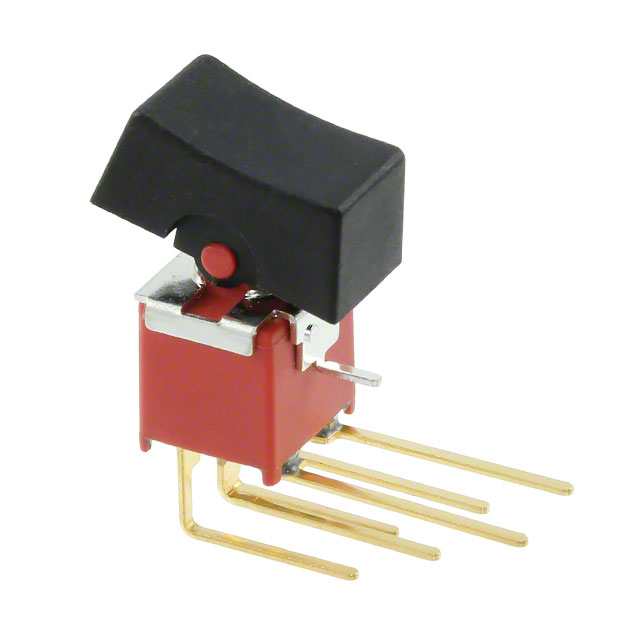

SWITCH ROCKER DPDT 0.4VA 20V

Search across all available documentation for this part.

Obsolete

TE Connectivity Raychem Cable Protection

SWITCH ROCKER DPDT 0.4VA 20V

Technical Specifications

Parameters and characteristics for this part

Specification	RAD1R102M7RES

Actuator Marking	No Marking
Actuator Type	Concave (Curved)
Circuit	DPDT
Color - Actuator/Cap	Black
Current Rating (Amps)	0.4 VA
Features	Process Sealed
Ingress Protection	IP67 - Dust Tight, Waterproof
Mechanical Life	30000 Steps
Mounting Type	Through Hole, Vertical, Right Angle
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Switch Function	On-On
Termination Style	PC Pin
Voltage Rating - AC	20 V
Voltage Rating - DC	20 V

Part	Mounting Type	Color - Actuator/Cap	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Circuit	Actuator Type	Ingress Protection	Termination Style	Mechanical Life	Switch Function	Features	Actuator Marking	Voltage Rating - AC	Voltage Rating - DC
TE Connectivity Raychem Cable Protection RAD1R102VS2QES	Through Hole	Black	3 A	-30 ░C	85 °C	DPDT	Concave (Curved)	IP67 - Dust Tight Waterproof	PC Pin	30000 Steps	On-On	Process Sealed	No Marking	120 V	28 V
TE Connectivity Raychem Cable Protection RAD1R102M7RES	Right Angle Through Hole Vertical	Black	0.4 VA	-30 ░C	85 °C	DPDT	Concave (Curved)	IP67 - Dust Tight Waterproof	PC Pin	30000 Steps	On-On	Process Sealed	No Marking	20 V	20 V
TE Connectivity Raychem Cable Protection RAD1R102M6QES	Through Hole Right Angle	Black	3 A	-30 ░C	85 °C	DPDT	Concave (Curved)	IP67 - Dust Tight Waterproof	PC Pin	30000 Steps	On-On	Process Sealed	No Marking	120 V	28 V
