2041-2X11G10SA-A003

Active

Oupiin

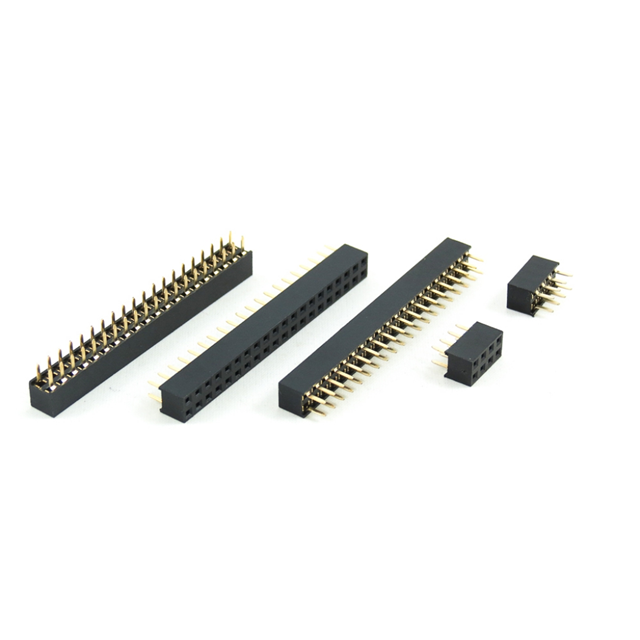

PCB SOCKET, DOUBLE ROW, 22 PIN,

Deep-Dive with AI

Search across all available documentation for this part.

2041-2X11G10SA-A003

Active

Oupiin

PCB SOCKET, DOUBLE ROW, 22 PIN,

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2041-2X11G10SA-A003	2041 Series

Connector Type	Socket	Socket
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Gold	Gold
Contact Finish Thickness - Mating	10 çin	10 çin
Contact Finish Thickness - Mating	0.25 çm	0.25 çm
Contact Finish Thickness - Mating	-	Flash
Contact Finish Thickness - Post	10 çin	10 çin
Contact Finish Thickness - Post	0.25 çm	0.25 çm
Contact Finish Thickness - Post	-	Flash
Contact Length - Post	3.2 mm	3.2 mm
Contact Length - Post [x]	0.126 in	0.126 in
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Female Socket	Female Socket
Current Rating (Amps)	2 A	2 A
Fastening Type	Push-Pull	Push-Pull
Insulation Height	0.197 in	0.197 in
Insulation Height	5 mm	5 mm
Insulation Material	Thermoplastic, Glass Filled, Polyester	Thermoplastic, Glass Filled, Polyester
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions	22 positions	8 - 40 positions
Number of Positions	-	16
Number of Positions Loaded	20	12 - 20
Number of Positions Loaded	-	All
Number of Rows	2	1 - 2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Row Spacing - Mating [x]	2.54 mm	2.54 mm
Row Spacing - Mating [x]	0.1 in	0.1 in
Termination	Solder	Solder

2041 Series

PCB SOCKET, DOUBLE ROW, 22 PIN,

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Contact Finish - Post	Contact Material	Fastening Type	Contact Shape	Pitch - Mating	Pitch - Mating	Connector Type	Number of Positions	Material Flammability Rating	Contact Finish - Mating	Insulation Height	Insulation Height	Termination	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Type	Number of Positions Loaded	Number of Rows	Contact Length - Post	Contact Length - Post [x]	Mounting Type	Contact Finish Thickness - Post	Number of Positions Loaded	Contact Finish Thickness - Mating	Number of Positions
Oupiin 2041-2X11G10SA-A003	10 çin	0.25 çm	Glass Filled, Polyester, Thermoplastic	10 çin	0.25 çm	105 ░C	-55 °C	2 A	Gold	Copper Alloy	Push-Pull	Square	0.1 in	2.54 mm	Socket	22 positions	UL94 V-0	Gold	0.197 in	5 mm	Solder	2.54 mm	0.1 in	Female Socket	20	2	3.2 mm	0.126 in	Through Hole
Oupiin 2041-1X14G00SA			Glass Filled, Polyester, Thermoplastic			105 ░C	-55 °C	2 A	Gold	Copper Alloy	Push-Pull	Square	0.1 in	2.54 mm	Socket	14	UL94 V-0	Gold	0.197 in	5 mm	Solder			Female Socket		1	3.2 mm	0.126 in	Through Hole	Flash	All	Flash
Oupiin 2041-1X40G00SA			Glass Filled, Polyester, Thermoplastic			105 ░C	-55 °C	2 A	Gold	Copper Alloy	Push-Pull	Square	0.1 in	2.54 mm	Socket	40	UL94 V-0	Gold	0.197 in	5 mm	Solder			Female Socket		1	3.2 mm	0.126 in	Through Hole	Flash	All	Flash
Oupiin 2041-2X13G00SA			Glass Filled, Polyester, Thermoplastic			105 ░C	-55 °C	2 A	Gold	Copper Alloy	Push-Pull	Square	0.1 in	2.54 mm	Socket	26	UL94 V-0	Gold	0.197 in	5 mm	Solder	2.54 mm	0.1 in	Female Socket		2	3.2 mm	0.126 in	Through Hole	Flash	All	Flash
Oupiin 2041-2X10G00SA			Glass Filled, Polyester, Thermoplastic			105 ░C	-55 °C	2 A	Gold	Copper Alloy	Push-Pull	Square	0.1 in	2.54 mm	Socket	20	UL94 V-0	Gold	0.197 in	5 mm	Solder	2.54 mm	0.1 in	Female Socket		2	3.2 mm	0.126 in	Through Hole	Flash	All	Flash
Oupiin 2041-1X10G00SA			Glass Filled, Polyester, Thermoplastic			105 ░C	-55 °C	2 A	Gold	Copper Alloy	Push-Pull	Square	0.1 in	2.54 mm	Socket	10	UL94 V-0	Gold	0.197 in	5 mm	Solder			Female Socket		1	3.2 mm	0.126 in	Through Hole	Flash	All	Flash
Oupiin 2041-2X07G10SA-A003	10 çin	0.25 çm	Glass Filled, Polyester, Thermoplastic	10 çin	0.25 çm	105 ░C	-55 °C	2 A	Gold	Copper Alloy	Push-Pull	Square	0.1 in	2.54 mm	Socket	14	UL94 V-0	Gold	0.197 in	5 mm	Solder	2.54 mm	0.1 in	Female Socket	12	2	3.2 mm	0.126 in	Through Hole
Oupiin 2041-1X03G00SB			Glass Filled, Polyester, Thermoplastic			105 ░C	-55 °C	2 A	Gold	Copper Alloy	Push-Pull	Square	0.1 in	2.54 mm	Socket		UL94 V-0	Gold	0.197 in	5 mm	Solder			Female Socket		1	3.2 mm	0.126 in	Through Hole	Flash	All	Flash
Oupiin 2041-1X20G00SA			Glass Filled, Polyester, Thermoplastic			105 ░C	-55 °C	2 A	Gold	Copper Alloy	Push-Pull	Square	0.1 in	2.54 mm	Socket	20	UL94 V-0	Gold	0.197 in	5 mm	Solder			Female Socket		1	3.2 mm	0.126 in	Through Hole	Flash	All	Flash
Oupiin 2041-1X16G00SA			Glass Filled, Polyester, Thermoplastic			105 ░C	-55 °C	2 A	Gold	Copper Alloy	Push-Pull	Square	0.1 in	2.54 mm	Socket		UL94 V-0	Gold	0.197 in	5 mm	Solder			Female Socket		1	3.2 mm	0.126 in	Through Hole	Flash	All	Flash	16

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 1.77
		500	$ 1.48
		1000	$ 1.18
		1500	$ 1.00
		2000	$ 0.89

Description

General part information

2041 Series

22 Position Socket Connector 0.100" (2.54mm) Through Hole Gold
