2041-1X40G00SA

Active

Oupiin

PCB SOCKET, SINGLE ROW, 40 PIN,

Deep-Dive with AI

Search across all available documentation for this part.

2041-1X40G00SA

Active

Oupiin

PCB SOCKET, SINGLE ROW, 40 PIN,

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 1.94
		500	$ 1.62
		1000	$ 1.29
		1500	$ 1.10
		2000	$ 0.97

Description

General part information

2041 Series

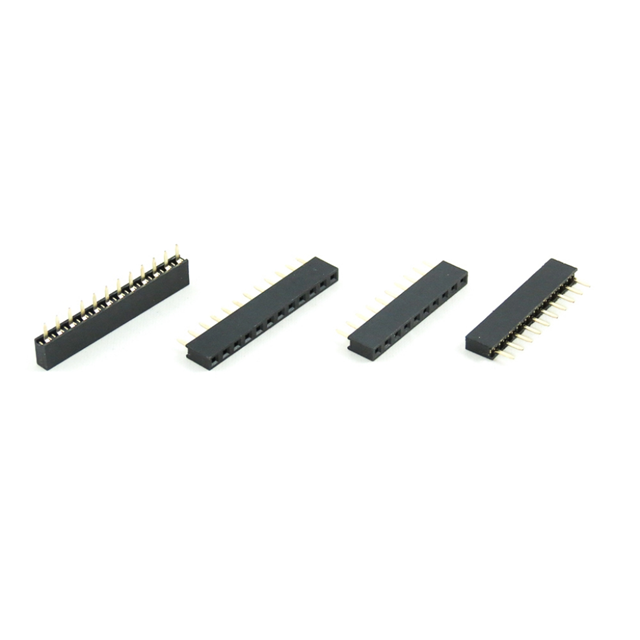

40 Position Socket Connector 0.100" (2.54mm) Through Hole Gold

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2041-1X40G00SA	2041 Series

Connector Type	Socket	Socket
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Gold	Gold
Contact Finish Thickness - Mating	Flash	Flash
Contact Finish Thickness - Mating	-	10 çin
Contact Finish Thickness - Mating	-	0.25 çm
Contact Finish Thickness - Post	Flash	Flash
Contact Finish Thickness - Post	-	10 çin
Contact Finish Thickness - Post	-	0.25 çm
Contact Length - Post	3.2 mm	3.2 mm
Contact Length - Post [x]	0.126 in	0.126 in
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Female Socket	Female Socket
Current Rating (Amps)	2 A	2 A
Fastening Type	Push-Pull	Push-Pull
Insulation Height	0.197 in	0.197 in
Insulation Height	5 mm	5 mm
Insulation Material	Thermoplastic, Glass Filled, Polyester	Thermoplastic, Glass Filled, Polyester
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions	40	8 - 40 positions
Number of Positions	-	16
Number of Positions Loaded	All	All
Number of Positions Loaded	-	12 - 20
Number of Rows	1	1 - 2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Row Spacing - Mating	-	2.54 mm
Row Spacing - Mating	-	0.1 in
Termination	Solder	Solder

2041 Series

PCB SOCKET, DOUBLE ROW, 22 PIN,

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Contact Finish - Post	Contact Material	Fastening Type	Contact Shape	Pitch - Mating	Pitch - Mating	Connector Type	Number of Positions	Material Flammability Rating	Contact Finish - Mating	Insulation Height	Insulation Height	Termination	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Type	Number of Positions Loaded	Number of Rows	Contact Length - Post	Contact Length - Post [x]	Mounting Type	Contact Finish Thickness - Post	Number of Positions Loaded	Contact Finish Thickness - Mating	Number of Positions
Oupiin 2041-2X11G10SA-A003	10 çin	0.25 çm	Glass Filled, Polyester, Thermoplastic	10 çin	0.25 çm	105 ░C	-55 °C	2 A	Gold	Copper Alloy	Push-Pull	Square	0.1 in	2.54 mm	Socket	22 positions	UL94 V-0	Gold	0.197 in	5 mm	Solder	2.54 mm	0.1 in	Female Socket	20	2	3.2 mm	0.126 in	Through Hole
Oupiin 2041-1X14G00SA			Glass Filled, Polyester, Thermoplastic			105 ░C	-55 °C	2 A	Gold	Copper Alloy	Push-Pull	Square	0.1 in	2.54 mm	Socket	14	UL94 V-0	Gold	0.197 in	5 mm	Solder			Female Socket		1	3.2 mm	0.126 in	Through Hole	Flash	All	Flash
Oupiin 2041-1X40G00SA			Glass Filled, Polyester, Thermoplastic			105 ░C	-55 °C	2 A	Gold	Copper Alloy	Push-Pull	Square	0.1 in	2.54 mm	Socket	40	UL94 V-0	Gold	0.197 in	5 mm	Solder			Female Socket		1	3.2 mm	0.126 in	Through Hole	Flash	All	Flash
Oupiin 2041-2X13G00SA			Glass Filled, Polyester, Thermoplastic			105 ░C	-55 °C	2 A	Gold	Copper Alloy	Push-Pull	Square	0.1 in	2.54 mm	Socket	26	UL94 V-0	Gold	0.197 in	5 mm	Solder	2.54 mm	0.1 in	Female Socket		2	3.2 mm	0.126 in	Through Hole	Flash	All	Flash
Oupiin 2041-2X10G00SA			Glass Filled, Polyester, Thermoplastic			105 ░C	-55 °C	2 A	Gold	Copper Alloy	Push-Pull	Square	0.1 in	2.54 mm	Socket	20	UL94 V-0	Gold	0.197 in	5 mm	Solder	2.54 mm	0.1 in	Female Socket		2	3.2 mm	0.126 in	Through Hole	Flash	All	Flash
Oupiin 2041-1X10G00SA			Glass Filled, Polyester, Thermoplastic			105 ░C	-55 °C	2 A	Gold	Copper Alloy	Push-Pull	Square	0.1 in	2.54 mm	Socket	10	UL94 V-0	Gold	0.197 in	5 mm	Solder			Female Socket		1	3.2 mm	0.126 in	Through Hole	Flash	All	Flash
Oupiin 2041-2X07G10SA-A003	10 çin	0.25 çm	Glass Filled, Polyester, Thermoplastic	10 çin	0.25 çm	105 ░C	-55 °C	2 A	Gold	Copper Alloy	Push-Pull	Square	0.1 in	2.54 mm	Socket	14	UL94 V-0	Gold	0.197 in	5 mm	Solder	2.54 mm	0.1 in	Female Socket	12	2	3.2 mm	0.126 in	Through Hole
Oupiin 2041-1X03G00SB			Glass Filled, Polyester, Thermoplastic			105 ░C	-55 °C	2 A	Gold	Copper Alloy	Push-Pull	Square	0.1 in	2.54 mm	Socket		UL94 V-0	Gold	0.197 in	5 mm	Solder			Female Socket		1	3.2 mm	0.126 in	Through Hole	Flash	All	Flash
Oupiin 2041-1X20G00SA			Glass Filled, Polyester, Thermoplastic			105 ░C	-55 °C	2 A	Gold	Copper Alloy	Push-Pull	Square	0.1 in	2.54 mm	Socket	20	UL94 V-0	Gold	0.197 in	5 mm	Solder			Female Socket		1	3.2 mm	0.126 in	Through Hole	Flash	All	Flash
Oupiin 2041-1X16G00SA			Glass Filled, Polyester, Thermoplastic			105 ░C	-55 °C	2 A	Gold	Copper Alloy	Push-Pull	Square	0.1 in	2.54 mm	Socket		UL94 V-0	Gold	0.197 in	5 mm	Solder			Female Socket		1	3.2 mm	0.126 in	Through Hole	Flash	All	Flash	16
